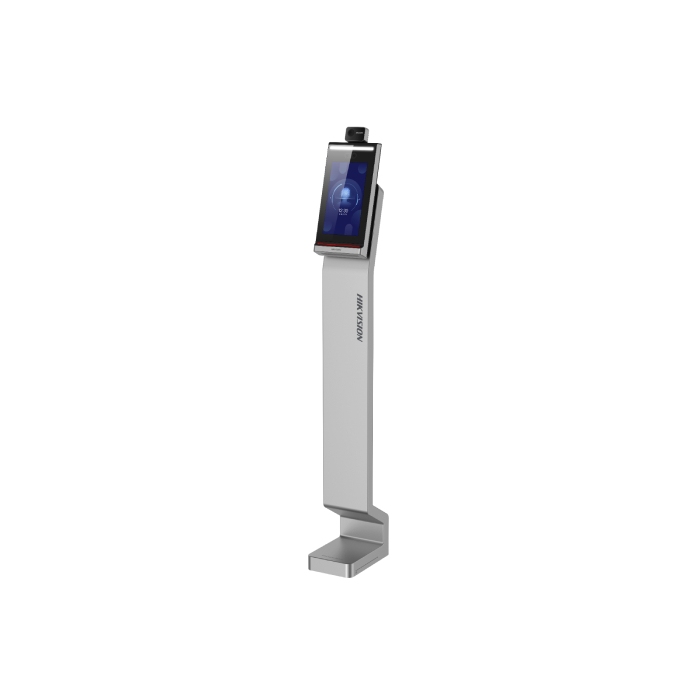

Hikvision DS-K5604A-3XF/V MinMoe 10.1" Face Recognition Temperature Screening Terminal

Hikvision DS-K5604A-3XF/V 2MP Face Recognition Temperature Screening Terminal

10.1" Touch screen and Multiple authentication modes Card and temperature, face and temperature, card and face and temperature

DS-K5604A-3XF/V face recognition terminal is a kind of access control device integrated with temperature screening function, which supports plug & play (rapid deployment, free of wiring, installation, or configuration). It can fast take skin-surface temperature, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on.

• Plug & play: Supports rapid deployment. Free of wiring, installation, or configuration
• Supports Vanadium Oxide uncooled sensor to measure target's temperature
• Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
• Recognition distance: 0.3 to 2 m
• Fast temperature measurement mode: Detects face and takes temperature without identity authentication
• Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
• Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
• Displays temperature measurement results on the authentication page
• Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
• Triggers voice prompt when detecting abnormal temperature
• Configurable door status (open/close) when detecting abnormal temperature
• Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
• Integrated design with stand bracket
• Communicates with the third-party turnstile via IO output or Wiegand
• Adjustable supplement light brightness
• High performance processor with deep learning algorithm
• 50,000 face capacity and 100,000 event capacity
• Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
• Transmits and saves the comparison results and the captured pictures to the client software or others
• NTP, manually time synchronization, and auto synchronization
• Watchdog design for protecting the device and ensuring device running properly
• Audio prompt for authentication result

* Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.
* In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to warm the device up.
