Hikvision DS-K4H250D Double-Door Magnetic Lock

Login for Price
In stock
SKU
DS-K4H250D

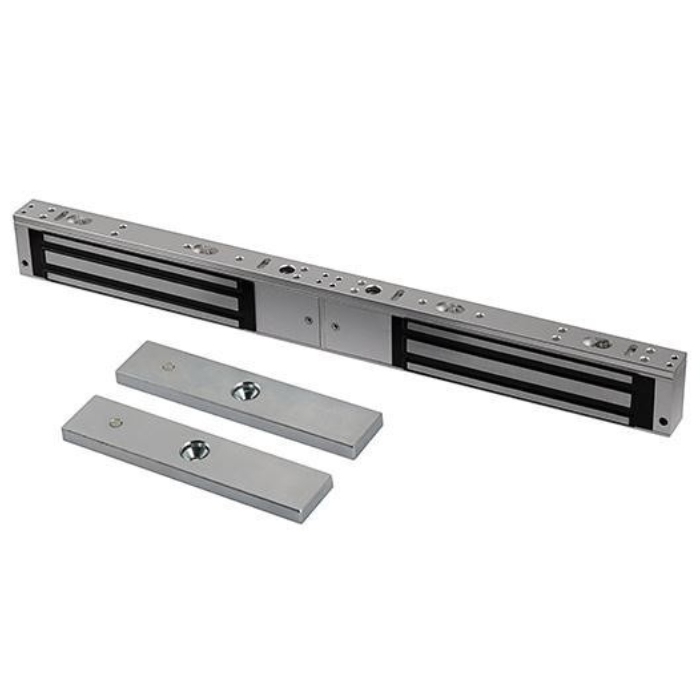

Hikvision DS-K4H250D Double-Door Magnetic Lock

The Magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 280 kg (600 Lbs) × 2. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing.

Feature:

  • The Magnetic lock supports static linear thrust of 280 kg (600 Lbs) × 2
  • The power supply can be customized to be 12 VDC or 24 VDC, and the default voltage is 12 VDC
  • It is equipped with internal voltage dependent resistor (MOV)
  • It is applied to wooden door, glass door, metal door and fireproof door
  • LED indicator displays the status of door lock
  • Signal output of door lock status (NO\NC\COM)
  • Anti-residual magnetism design
  • Abrasion-proof materials
  • The shell is made up of aldural and is hard anodizing electroplated
  • No mechanical failure, and the magnetic lock works by electromagnetism force
