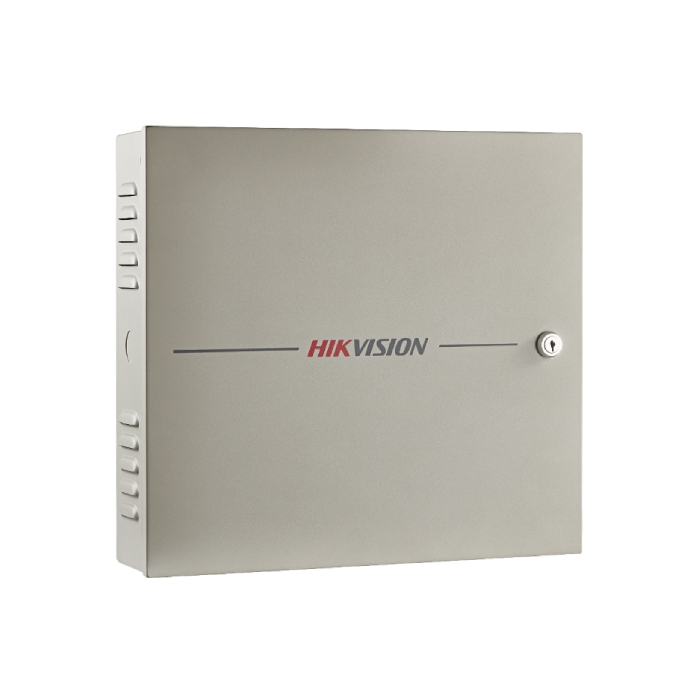

Hikvision DS-K2604T Pro Series Door Access Controller: 4-Door
Hikvision DS-K2604T Four-Door Access Controller
DS-K2600T series access controller is designed with the latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of the system. The controller also supports the offline operation and is designed with tamper-proof switch.
Feature:
- Supports anti-passback function, multi-card function, first person function, super card and super password function
- Online upgrade function and online remote control of the doors
- Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blocklist alarm and alarm for invalid card swiping attempts alarm)
- Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports time synchronization via NTP, manual or automatic method
- Supports standby battery
- Data can be permanently saved when the access controller is powered off
- Supports battery access
- Interface
- Network InterfaceTCP/IP
- Lock Control
1
Â
- Exit Button
1
Â
- Door Contact Input
1
Â
- General
- Power Supply100 ~ 240 VAC
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Power Consumption
With load: ≤ 50 w
Without load: ≤ 4 w
- Working Humidity10% to 90% (no condensing)
- Dimensions373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
Frequently Asked Questions
What is the Hikvision DS-K2604T?
A Pro Series four-door network access controller — the brain that decides who can open up to four doors.
How does it connect?
Over TCP/IP and RS-485, with encrypted communication for system security.
Does it keep working if the network drops?
Yes — it supports offline operation, storing rules and events locally.
Is it tamper-protected?
Yes — it has a tamper-proof switch.
What is it used for?
Managing readers, locks, exit buttons and door sensors for four controlled doors.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing for installers.
