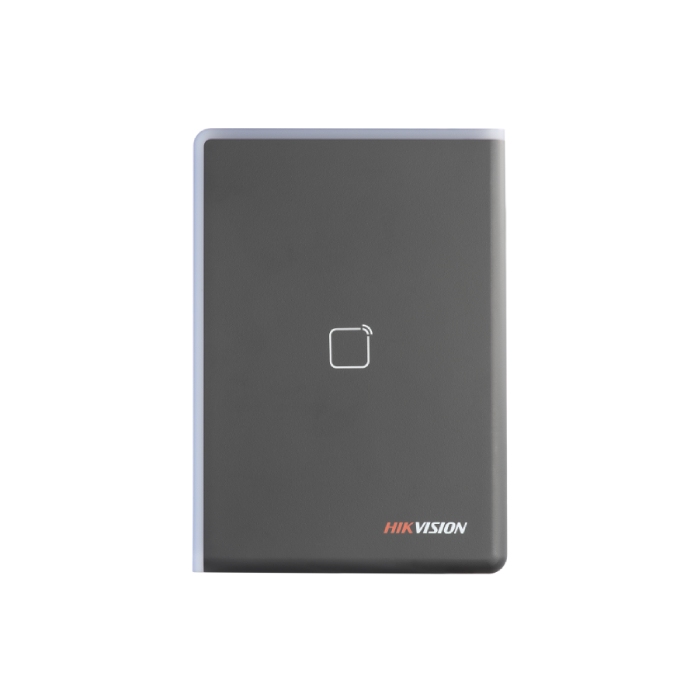

Hikvision DS-K1108AM Mifare Card Reader Without Keypad
Hikvision DS-K1108AM Card Reader Without Keypad
- Supports RS-485, Wiegand (W26, W34) protocol, and OSDP protocol
- Supports reading EM card (Frequency: 125 KHz) (DS-K1108AE/DS-K1108AEK)
- Supports reading Mifare card (Frequency: 13.56 MHz). Supports reading Desfire&Felica card (DS-K1108AD/DS-K1108ADK)
- Tamper-proof function
- Built-in buzzer for status indication

- System
- Processor32 bit
- Network
- Communication ProtocolRS-485/Wiegand (Set via DIP switch)
- Authentication
- Card Radio Frequency StandardISO 14443-A
- Card Reading Distance≤ 50 mm (1.97")
- Function
- ID Settingsvia DIP switch
- General
- Keypad
DS-K1108AE/DS-K1108AM/DS-K1108AD: No keypad
DS-K1108AEK/DS-K1108AMK/DS-K1108ADK: With keypad
- IndicatorPower indicator; Status LED indicator
- Power Supply12 VDC, 2 W
- Working Temperature-20°C to 65°C (-4°F to 149°F)
- Working Humidity10% to 90% (Non condensing)
- Dimensions123 mm × 88 mm × 21mm (4.84" × 3.46" × 0.83")
- Protective LevelIP65
- InstallationWall mounting
- BuzzerBeeper
Frequently Asked Questions
What is the Hikvision DS-K1108AM?
A Mifare card reader (without keypad) for access-control doors.
What cards does it read?
13.56MHz Mifare (plus EM 125kHz on the AE variant).
What protocols does it support?
RS-485, Wiegand (W26/W34) and OSDP — compatible with Hikvision and third-party controllers.
Does it support secure communication?
Yes — OSDP support allows encrypted, supervised reader-to-controller links.
Where is it used?
Entry doors, gates and turnstiles in commercial access-control systems.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing for installers.
