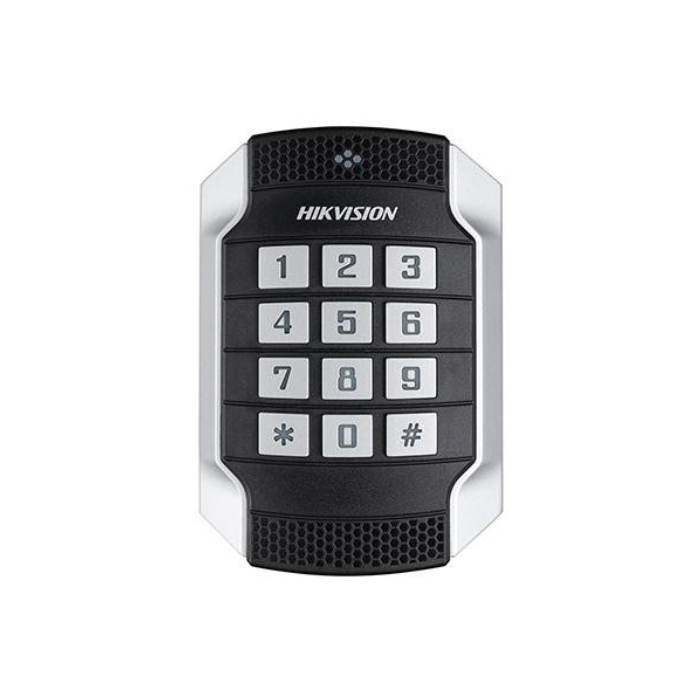

Hikvision DS-K1104MK Vandal Resistant Mifare Card Reader With Keypad

Login to Buy
In stock
Hikvision DS-K1104MK Vandal Resistant Mifare Card Reader With Keypad

Hikvision's DS-K1104 Series vandal-resistant card readers with dip switch are rated IK10. This series card readers support RS-485 and Wiegand (W26/W34) protocols. Vandal-proof card reader contains a built-in Mifare 13.56 MHz card reading module. The model is based on a 32-bit 1 GHz processor, equipped with an LED indicator (power, connection status, identification result), a built-in beeper, tamper. Dimensions (L×W×H): 118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91") and Weight: ≤ 0.52Kg.


  • PC + zinc-alloy material shell (material protection level is IK 10)
  • Equipped with the 32-bit high-speed processor
  • Built-in audible beeper
  • Display the reader status with LED indicator
  • DIP switch
  • RS485 and Wiegand(W26/W34) protocol
  • Tamper-proof alarm
  • Online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Dust-proof and water-proof design
  • Read Mifare card and obtain the card No.
