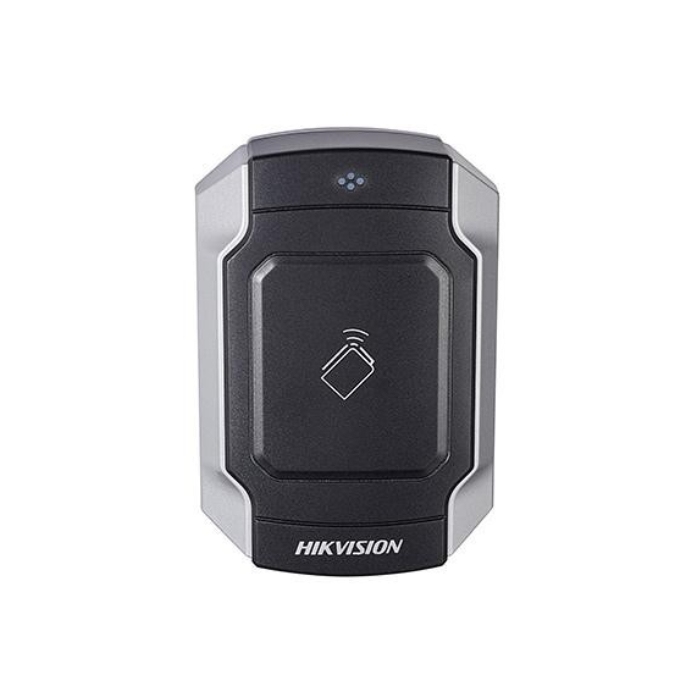

Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad
The Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad is a access-control card reader — Access-control card / credential reader for secure managed door entry.
Part of the Hikvision door-entry and access-control range, managed with Hik-Connect and iVMS-4200 / HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester.
Key Features
- MIFARE card reader for managed door entry
- Vandal-resistant housing
- Connects to a Hikvision access controller (RS-485 / Wiegand)
- Encrypted credential support
- Weather-resistant for entrance use
- LED and audible feedback
Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad — Access Control Card Reader
Access-control card / credential reader for secure managed door entry.
Overview
The Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad is a access-control card reader from the Hikvision door-entry and access-control range. Access-control card / credential reader for secure managed door entry.
Managed with Hik-Connect and iVMS-4200 / HikCentral, it is designed for professional, reliable installation. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- MIFARE card reader for managed door entry
- Vandal-resistant housing
- Connects to a Hikvision access controller (RS-485 / Wiegand)
- Encrypted credential support
- Weather-resistant for entrance use
- LED and audible feedback
Typical Applications
- Offices and commercial premises access control
- Multi-tenant and managed buildings
- Server rooms and secure areas
- Time & attendance and audit logging
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision access controllers (DS-K2 series)
- Hikvision card readers and terminals
- iVMS-4200 / HikCentral management software
- Hik-Connect for remote access
- Standard maglocks, strikes and exit devices
What's in the Box
- 1 × Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad
- Mounting / fixing hardware (where applicable)
- Quick start guide
Detailed Specifications — Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad
Full technical specification for the Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad, from the official datasheet.
| Identification | |
|---|---|
| SKU | DS-K1104M |
| MPN | 302900516 |
| EAN | 6954273635718 |
| Brand | Hikvision |
| Product Type | Access Control Card Reader |
| General Specifications | |
| Connectivity | RS-485 / Wiegand / TCP-IP |
| Management | iVMS-4200 / HikCentral / Hik-Connect |
| Construction | Vandal / weather resistant where outdoor-rated |
| Certifications | CE, UKCA, RoHS |
| Compatibility | |
| Controllers | Hikvision DS-K2 series |
| Software | iVMS-4200 / HikCentral |
| App | Hik-Connect (iOS / Android) |
Frequently Asked Questions
What is the Hikvision DS-K1104M?
A vandal-resistant Mifare card reader (without keypad) for access-control doors.
How tough is it?
IK10 vandal-rated, with a built-in tamper alarm.
What cards does it read?
13.56MHz Mifare cards via a built-in reading module.
How does it connect to a controller?
Over RS-485 or Wiegand (W26/W34), selectable by DIP switch — compatible with Hikvision and third-party controllers.
Does it give feedback?
Yes — LED indicators (power, connection, result) and a built-in beeper.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing for installers.

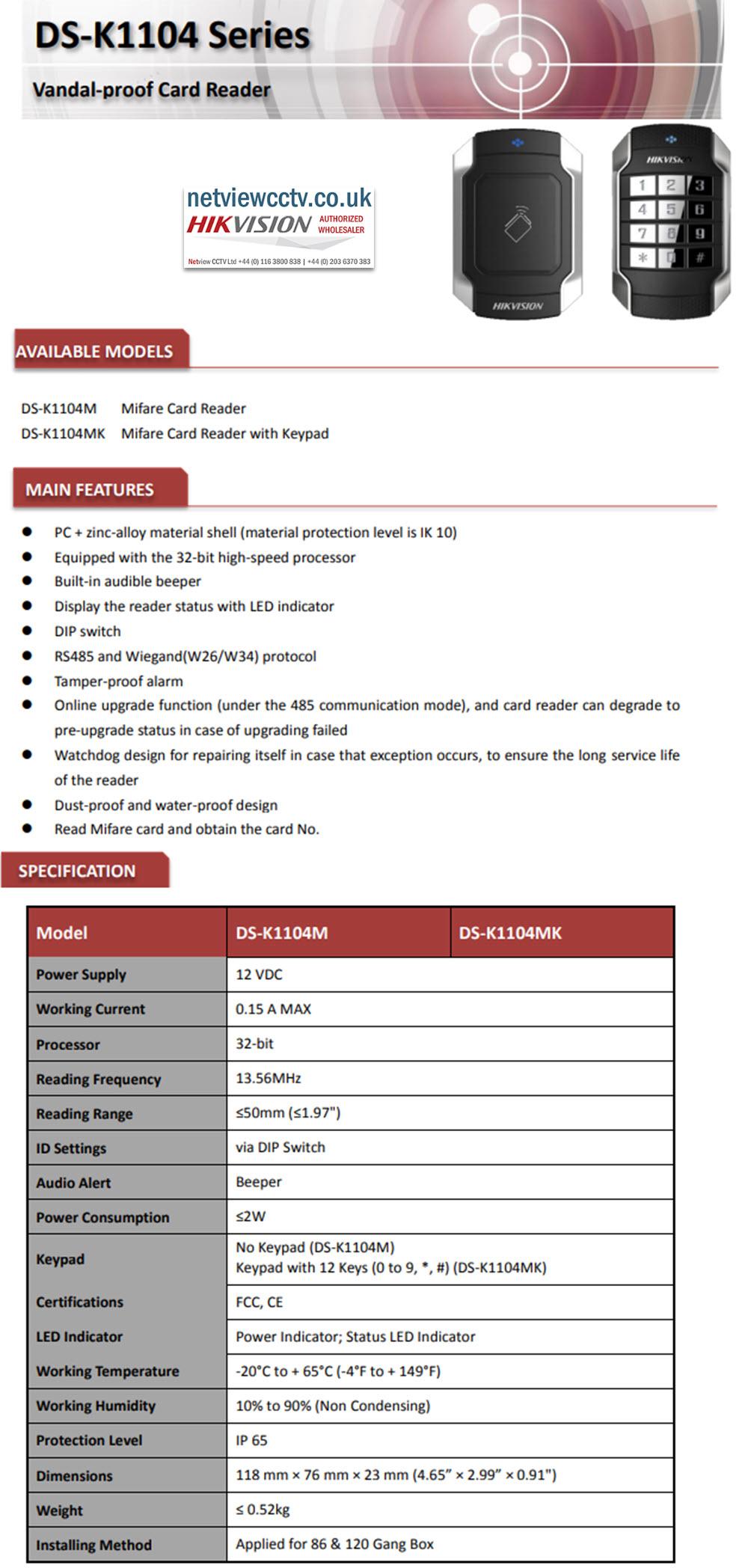

Documentation — Hikvision DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad
Download the datasheet for the DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-K1104M Vandal-Proof Mifare Card Reader WITHOUT Keypad Datasheet | Download datasheet | |
