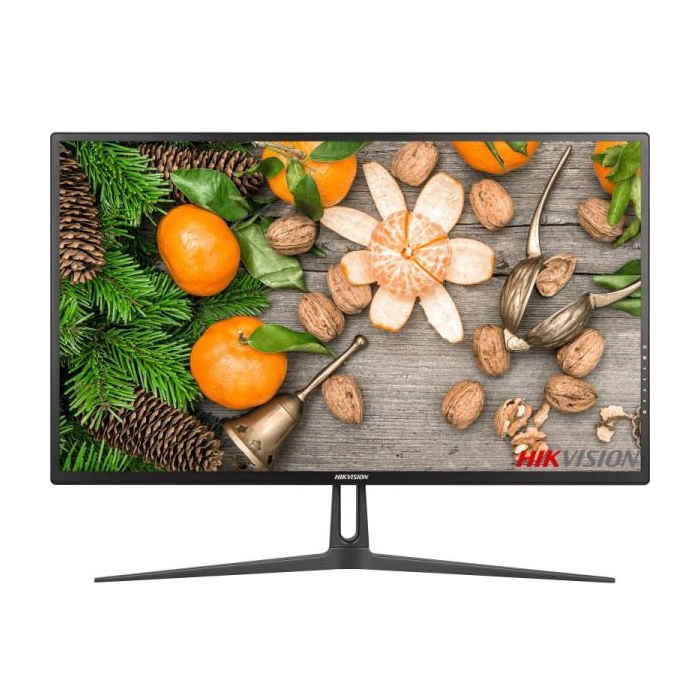

32" Hikvision DS-D5232F2-1V1S E-LED FHD Proffessional Monitor with BNC in/out
In stock
SKU
DS-D5232F2-1V1S
MPN: 317500505EAN: 694216488219UPC: 694216488219
32" Hikvision DS-D5232F2-1V1S E-LED FHD Proffessional Monitor with BNC out
E-LED Monitor with for CCTV Surveillance with CVBS (BNC), HDMI v1.4, DVI & VGA, Audio In interfaces and bulit in speaker
Compatible with all Hikvision NVR's & DVR's
- High reliable components for 7×24 workin
- 178° ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
MPN: 317500505EAN: 694216488219UPC: 694216488219
- Display
- Screen Size32 inch
- Active Display Area698.4 (H) mm × 392.85 (V) mm
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.12125 (H)mm x 0.36375 (V) mm
- Brightness350 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit
- Contrast Ratio4000 : 1
- Response Time8 ms
- Refresh RateTyp. 60 Hz
- HazeHaze 2 %
- Reliability7 × 24 H
- Color Gamut72 % NTSC
- Interface
- Video & Audio InputCVBS x 1，HDMI1.4 x 1，DVI x 1，VGA x 1，Audio IN x 1
- Video & Audio OutputSpeaker(8Ω 2W) × 2，CVBS x 1
- Data Transmission InterfaceUSB2.0 x 1
- Control InterfaceRS232 IN x 1，RS232 OUT x 1
- Power
- Power Supply100~240 VAC, 50/60 Hz
- Power Consumption≤ 80 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA200 mm × 200 mm (4 - M4 × 10 mm)
- Bezel Width11.42 mm (top/left/right), 16.98 mm (bottom)
- Product Dimensions (W × H × D)
With base: 723.24 (W) mm × 533.08 (H) mm × 212.14 (D) mm ( 28.47 (W) inch × 20.99 (H) inch × 8.35 (D) ) inch;
Without base: 723.24 (W) mm × 423.16 (H) mm × 52 (D) mm (28.47 (W) inch × 16.66 (H) inch × 2.05 (D) inch)
- Package Dimensions (W × H × D)898 (W) mm × 544 (H) mm × 153 (D) mm
- Net Weight6.15 ± 0.5 kg
- Gross Weight8.65 kg ± 0.5 kg
- Packing ListMonitor × 1, Power Cord （1.8m）×1，Base component × 1, User manual × 1, Multilingual manual × 1，remote control × 1, Screws in 1 Package，Double-end Studs in 1 Package
- Remarks
The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
