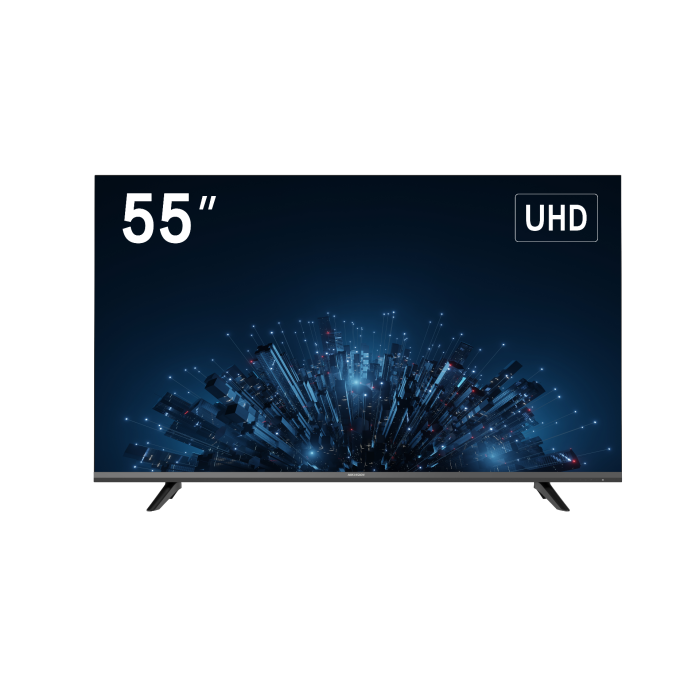

Hikvision DS-D5055U3-1V0S 55" 4K UHD 60Hz Monitor HDMI/VGA/DP/USB & 2x10W Built-in-Speaker
Hikvision DS-D5055U3-1V0S 55" 4K Ultra HD 60Hz VA Monitor
Product Overview
The Hikvision DS-D5055U3-1V0S is a professional-grade 55-inch 4K UHD monitor designed for continuous operation in security and control applications. It delivers crisp, detailed images, reliable performance, and flexible connection options for smooth integration with various systems.
Key Specifications
- Display Size: 55 inches
- Resolution: 3840 × 2160 (4K UHD)
- Brightness: Approximately 350 cd/m²
- Contrast Ratio: Around 1200:1 for deep blacks and vivid highlights
- Response Time: 8 ms (typical)
- Viewing Angle: 178° (horizontal/vertical)
- Inputs: HDMI, VGA, and DisplayPort for flexible connectivity
- Audio: Integrated speakers
- Design: Slim bezel, metal housing, and VESA mount compatibility
- Operation: Built for 24/7 commercial or security use
- Power: Energy-efficient LED backlight with automatic brightness control
Specifications
| Display | |
|---|---|
| Screen Size | 55 inches |
| Active Display Area | 1209.6 (H) × 680.4 (V) mm |
| Resolution | 3840 × 2160 @ 60 Hz (4K UHD) |
| Backlight Type | Direct LED (D-LED) |
| Pixel Pitch | 0.315 (H) × 0.315 (V) mm |
| Brightness | 300 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8-bit + FDR |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5 ms (typical) |
| Refresh Rate | 60 Hz |
| Haze | 2% |
| Color Gamut | 72% NTSC |
| Reliability | 24/7 continuous operation |
| Interfaces | |
| Video & Audio Inputs | 1 × HDMI, 1 × DisplayPort, 1 × VGA, 1 × Line In |
| Video & Audio Outputs | 2 × Speaker Out (8Ω, 10W) |
| USB Port | 1 × USB 2.0 |
| Control | RS232 In ×1, RS232 Out ×1 |
| Power | |
| Power Supply | 100–240 V AC, 50/60 Hz, up to 1.0 A |
| Power Consumption | ≤ 120 W |
| Standby Power | ≤ 0.5 W |
| Environmental Conditions | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 5%–90% RH (non-condensing) |
| General | |
| Speakers | 2 × 10W (8Ω) |
| Material | Plastic enclosure |
| VESA Mount | 7.87" × 7.87" |
| Bezel Width | Top/Left/Right: 0.05", Bottom: 0.94" |
| Product Dimensions (W × H × D) | 48.24 (W) inch × 28.11 (H) inch × 2.9 (D) inch（without base) 48.24 (W) inch×30.43 (H) inch×9.53 (D) inch（with base） |
| Package Dimensions (W × H × D) | 1356(W) mm×828(H) mm×161(D) mm |
| Net Weight | 11.5 ± 0.5 kg (25.35 ± 1.1 lb) |
| Gross Weight | 16.01 ± 0.5 kg (35.3 ± 1.1 lb) |
| Package Contents | |
| Included Items | Monitor × 1, Base × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screws × 6 |
| Remarks | The base is included as standard. Specifications and appearance may vary slightly depending on production batch. Please confirm with your local distributor. |
Frequently Asked Questions
What is the Hikvision DS-D5055U3-1V0S?
A professional-grade 55-inch 4K Ultra HD VA monitor designed for continuous (24/7) operation in security and control rooms.
What resolution and refresh rate does it have?
4K UHD (3840 × 2160) at 60Hz.
What connections does it have?
HDMI, VGA, DisplayPort and USB, plus two built-in 10W speakers.
Is it compatible with my recorder?
Yes — it works with Hikvision NVRs and DVRs and other systems.
Is it built for constant use?
Yes — it is rated for continuous security-application operation.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing for installers.
