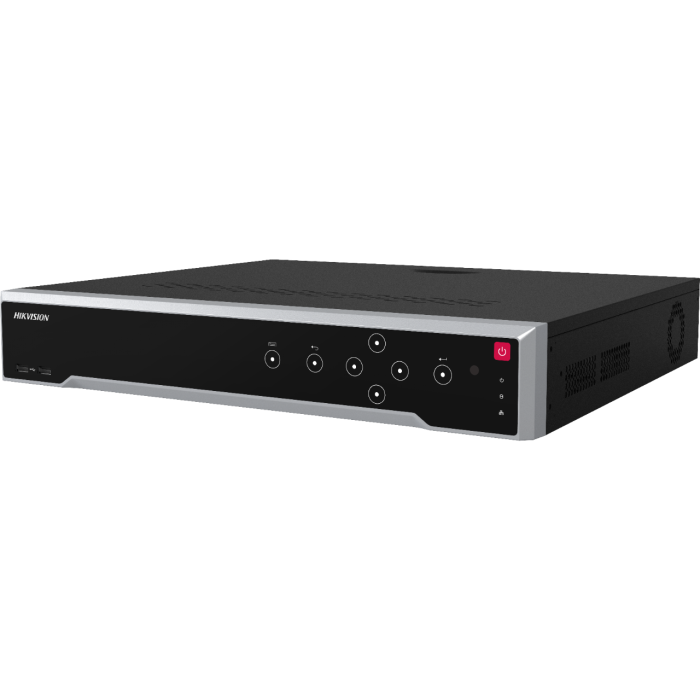

Hikvision DS-7716NI-M4 16 Channel Non-PoE 32MP NVR
In stock
The Hikvision DS-7716NI-M4 is a 16-channel M-Series NVR with 8K HDMI 1 output — the consumer/small-business tier with premium control-room display support and full 32 MP per-channel recording. 4 × hot-plug SATA bays accept HDDs up to 16 TB each (64 TB raw total), non-PoE (external PoE switch required). H.265+ compression reduces storage by up to 75%. Incoming 256 Mbps / outgoing 256 Mbps.
DecodingWhat is Decoding Capability: 2-ch @ 32 MP simultaneously, 20-ch @ 4 MP, or 40-ch @ 1080p. Dual HDMI (HDMI 1 8K, HDMI 2 4K) + VGA + CVBS — main HDMI 1/VGA simultaneous, HDMI 2/VGA independent for multi-monitor. 16/9 alarm I/O, 1 Gigabit Ethernet + eSATA. OTAP support for solar-powered Hikvision cameras. No on-NVR AI — AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events run camera-side and are recorded transparently here.
Key Features
- 16-channel IP input, up to 32 MP per channel recording (8-ch limit at 32MP/24MP)
- 4 × hot-plug SATA bays (up to 16 TB each, 64 TB total raw) + 1 × eSATA
- Non-PoE NVR — pair with external Hikvision PoE switch
- HDMI 1 up to 8K @ 30 Hz, HDMI 2 up to 4K, VGA + CVBS — premium display support
- DecodingWhat is Decoding Capability 2-ch @ 32 MP + 2-ch @ 8 MP or 40-ch @ 1080p; 16-ch synchronous playback
- Incoming 256 Mbps / outgoing 256 Mbps bandwidth
- 16 alarm inputs / 9 outputs + 2 × RS-485 + 1 × RS-232
- Stream-over-TLS encryption + double verification for secure playback / download
- OTAP solar-camera support — pulls stream on demand from solar-powered Hikvision cameras
- H.265+ compression saves up to 75% storage; ONVIF + ISAPI + SDK
- 1.5U rack-mounted chassis (445 × 400 × 75 mm), ~5.0 kg without HDD
- Hik-Connect, DDNS, Hik-Central, iVMS-4200 supported; UK CE/UKCA certified
Note: This is a recording-only NVR with no on-NVR AI analytics — AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events run camera-side via AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-capable Hikvision cameras and are recorded transparently. For on-NVR AcuSearch / AcuSeekWhat is Hikvision AcuSeek natural-language search, see the iDS-* DeepinMind range (Wave 5a) or the DS-9xxx NXI/VPro AcuSeek range (Wave 5c). For RAID storage redundancy, see the DS-9xxx-NI range (Wave 5b).
Hikvision DS-7716NI-M4 — M-Series 8K NVR
16-channel non-PoE NVR with 4 hot-plug HDD bays (up to 64 TB raw), 8K HDMI + 4K HDMI + VGA outputs, external PoE switch required.
Overview
The Hikvision DS-7716NI-M4 is a 16-channel mid-range NVR in the DS-7xxx M-series — the consumer/small-business storage tier with 8K HDMI output support and full 32 MP recording per channel. H.265+ / H.265 / H.264+ / H.264 video formats are supported with H.265+ compression reducing storage by up to 75%. DecodingWhat is Decoding Capability capacity reaches 2-ch @ 32 MP + 2-ch @ 8 MP simultaneously, or 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p.
Storage: 4 × hot-plug SATA HDD bays accept drives up to 16 TB each (raw capacity up to 64 TB), with 1 × eSATA for external expansion. Note: this tier does NOT support RAID — for storage-redundant recording with RAID 0/1/5/6/10, see the DS-9xxx-NI range (Wave 5b). The M-series instead emphasises large per-HDD capacity and hot-plug serviceability. Incoming bandwidth 256 Mbps / outgoing bandwidth 256 Mbps. ANR (Automatic Network Replenishment) keeps recordings intact when network drops by syncing missing frames from the camera-side SD card once the connection is restored.
This NVR is a recording platform without on-NVR AI analytics — face recognition, perimeter protection and video structuralization run camera-side via Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras and are recorded transparently. Per-camera VCA events (motion, line crossing, intrusion, region entrance / exit, heat map, ANPR, people counting) are supported on the recording timeline; POS information overlay on live view and playback is configurable, with POS-triggered recording and alarm linkages. For on-NVR AI search (AcuSearch / AcuSeekWhat is Hikvision AcuSeek), see the iDS-* DeepinMind range (Wave 5a) or DS-9xxx NXI/VPro AcuSeek range (Wave 5c).
Output: dual HDMI — HDMI 1 up to 8K (7680 × 4320 @ 30 Hz) for premium control rooms, HDMI 2 up to 4K (3840 × 2160) for auxiliary monitor — plus VGA and CVBS outputs. Network: 1 × RJ-45 10/100/1000 Mbps Gigabit Ethernet, plus the non-PoE (external PoE switch required for cameras). Stream-over-TLS encryption + double verification for secure playback / download. OTAP protocol support for solar-powered cameras — NVR pulls stream on demand, camera sends back scheduled video. 16 alarm inputs + 9 alarm outputs for siren, strobe, panic-button and access-control integration. Power: 100-240 VAC, 50/60 Hz, max consumption ≤ 15 W (without HDD, PoE off). Chassis 445 × 400 × 75 mm (1.5U rack-mounted), approx. 5.0 kg (without HDD).
Key Features
- 16-channel IP camera input — up to 32 MP per channel (8-ch limit for 32MP/24MP)
- 4 × hot-plug SATA bays for HDDs up to 16 TB each — raw capacity up to 64 TB
- 1 × eSATA interface for additional external storage
- Non-PoE NVR — pair with Hikvision DS-3E1xxxP / DS-3E2xxxP PoE switches
- H.265+ / H.265 / H.264+ / H.264 video compression — H.265+ saves up to 75% storage
- DecodingWhat is Decoding Capability: 2-ch @ 32 MP + 2-ch @ 8 MP simultaneously / 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p (30 fps)
- HDMI 1 up to 8K (7680 × 4320 @ 30 Hz) + HDMI 2 up to 4K + VGA + CVBS outputs
- HDMI 1 / VGA simultaneous output (main); HDMI 2 / VGA independent output (auxiliary)
- 1-channel audio output (RCA, 1 KΩ) + 1-channel two-way audio (RCA, 2.0 Vp-p)
- 1 × RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet
- 16 alarm inputs + 9 alarm outputs for siren / strobe / access-control integration
- 2 × RS-485 (half-duplex) + 1 × RS-232 serial interfaces
- Stream-over-TLS encryption + double verification for secure playback / download
- ANR (Automatic Network Replenishment) fills recording gaps from camera-side SD on network recovery
- OTAP solar-camera support — NVR pulls stream on demand from solar-powered Hikvision cameras
- Per-camera VCA events recorded: motion / line crossing / intrusion / region entrance/exit / heat map / ANPR / people counting
- POS information overlay on live view and playback, POS-triggered recording and alarm
- 16-channel synchronous playback
- ONVIF compliant; Hik-Connect, DDNS, Hik-Central, iVMS-4200, plug-in-free web access
- Front panel: 2 × USB 2.0; rear panel: 1 × USB 3.0
- Power: 100-240 VAC, 50/60 Hz; 1.5U rack-mounted chassis 445 × 400 × 75 mm; ~5.0 kg without HDD
- No on-NVR AI — camera-side AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events recorded transparently. For on-NVR AcuSearch / AcuSeek see iDS-* (Wave 5a) or DS-9xxx VPro (Wave 5c) ranges
Typical Applications
- Small-to-mid surveillance installations with up to 16 IP cameras — retail shops, offices, restaurants, warehouses, schools
- Sites needing premium 8K control-room output without paying for on-NVR AI — the M-series gives 8K HDMI 1 at consumer price point
- Sites with existing PoE infrastructure or PoE+ requirements beyond the built-in PoE budget — pair with Hikvision DS-3E2xxx managed switches
- Sites with Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras — AI events run camera-side and are recorded transparently here, no on-NVR licence cost
- Multi-camera installations using HDDs above 8 TB — supports up to 16 TB per SATA bay
- Solar / off-grid camera deployments — OTAP protocol pulls stream on demand from solar-powered Hikvision cameras
Compatible Hikvision Devices
- Hikvision IP cameras — G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 (mini-bullet, turret, T-mount, dome, motorised-VF), AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Darkfighter, 12 MP / 16 MP fixed-lens turret, ANPR cameras, panoramic, fisheye
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / Face Capture / Perimeter Protection — runs camera-side on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-capable cameras and recorded transparently on this NVR (use iDS-* DeepinMind range for server-side AI)
- Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP (this is a non-PoE NVR — cameras require external PoE)
- iVMS-4200 desktop client (Windows / macOS)
- Hik-Connect mobile app (iOS / Android) for remote view, playback and push notifications
- Hik-Central enterprise VMS / Hik-Central Professional for multi-site centralised management
- ONVIF Profile S/G/T compatible third-party IP cameras
- Surveillance-grade HDDs — Seagate SkyHawk / WD Purple recommended (available pre-fitted in -BB bundle variants)
- Hikvision solar-powered cameras — supported via OTAP protocol on this NVR
What's in the Box
- 1 × Hikvision DS-7716NI-M4 NVR
- 1 × power cord
- 1 × USB mouse
- 1 × HDD mounting screws + rail kit
- 1 × quick start guide
- 1 × IR remote control (model dependent)
📄 Download: Hikvision DS-7716NI-M4 M-Series NVR Datasheet (PDF) — full technical specification including I/O diagrams, PoE port allocation, accessory list and approval certificates.
Detailed Specifications — Hikvision DS-7716NI-M4
Full technical specification taken from the official Hikvision DS-7716NI-M4 M-Series NVR datasheet.
| Video & Audio | |
|---|---|
| IP Video Input | 16-channel, up to 32 MP resolution (8-ch limit for 32 MP / 24 MP inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | Up to 8K (7680 × 4320) @ 30 Hz / 4K (3840 × 2160) @ 60 Hz / 2K (2560 × 1440) @ 60 Hz / 1920 × 1080 @ 60 Hz / 1280 × 1024 @ 60 Hz / 1024 × 768 @ 60 Hz |
| HDMI 2 Output | Up to 4K (3840 × 2160) @ 60 Hz / 2K (2560 × 1440) @ 60 Hz / 1920 × 1080 @ 60 Hz / 1024 × 768 @ 60 Hz |
| VGA Output | 1920 × 1080 @ 60 Hz / 1280 × 1024 @ 60 Hz / 1024 × 768 @ 60 Hz |
| Video Output Mode | HDMI 1 + VGA simultaneous (main); HDMI 2 + VGA independent (auxiliary) |
| CVBS Output | 1-channel BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-channel, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-channel, RCA (2.0 Vp-p, 1 KΩ — uses audio input) |
| Decoding & Playback | |
| Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF (max 8-ch at 32 MP/24 MP) |
| Synchronous Playback | 16-channel |
| Decoding Capability | 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps); 10-ch @ 8 MP (30 fps); 20-ch @ 4 MP (30 fps); 40-ch @ 1080p (30 fps) |
| Dual-Stream Recording | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 |
| Network & PoE | |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet |
| PoE Interface | Non-PoE NVR — cameras require external PoE switch |
| Remote Connection | 128 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, OTAP (solar camera) |
| Cloud / VMS | Hik-Connect, DDNS, ONVIF, Hik-Central, iVMS-4200, plug-in-free web access |
| Security | Stream-over-TLS encryption, double verification (playback/download), HTTPS, digest auth, IP filter |
| Storage | |
| SATA Bays | 4 × SATA 3.5" — hot-plug supported |
| Max HDD Capacity | 16 TB per HDD (64 TB total raw) |
| eSATA | 1 × eSATA interface for external storage expansion |
| RAID Type | NA — M-series tier does not support RAID (see DS-9xxx-NI for RAID 0/1/5/6/10 + N+M hot spare) |
| ANR (Auto Network Replenishment) | Yes — fills recording gaps from camera-side SD on network recovery |
| Event & Smart Function | |
| VCA Events Recorded (per-camera) | Motion / line crossing / intrusion / region entrance / region exit / scene change / heat map / ANPR / people counting |
| AcuSense / Face Capture | Camera-side (use AcuSense-capable cameras such as G3 ColorVu); recorded transparently here |
| POS Function | POS information overlay on live view + playback, POS-triggered recording and alarm |
| OTAP (Solar Camera) | Supported — NVR pulls stream on demand from solar-powered Hikvision cameras |
| Interfaces | |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm I/O | 16 alarm input + 9 alarm output |
| Serial Interface | 2 × RS-485 (half-duplex) + 1 × RS-232 |
| Ctrl 12V Output | Controllable 12 VDC, 1 A power output for external alarm device |
| DC 12V Output | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | ≤ 15 W (without HDD, PoE off) |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions (W × D × H) | 445 × 400 × 75 mm |
| Weight | ≤ 5.0 kg (without HDD) |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Approvals | FCC Part 15 Subpart B (ANSI C63.4-2014), CE (EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035), RoHS, REACH, WEEE |
Documentation — Hikvision DS-7716NI-M4 M-Series NVR
Download the official Hikvision datasheet, plus quick-start and configuration resources for the DS-7716NI-M4 Network Video Recorder.
| Document | Format | Link |
|---|---|---|
| DS-7716NI-M4 Product Datasheet | Download datasheet | |
| Hikvision M-Series NVR (DS-7xxx) Range Overview | Web | Hikvision NVR product range |
| iVMS-4200 Desktop Client (Windows / macOS) | Web | Hikvision software downloads |
