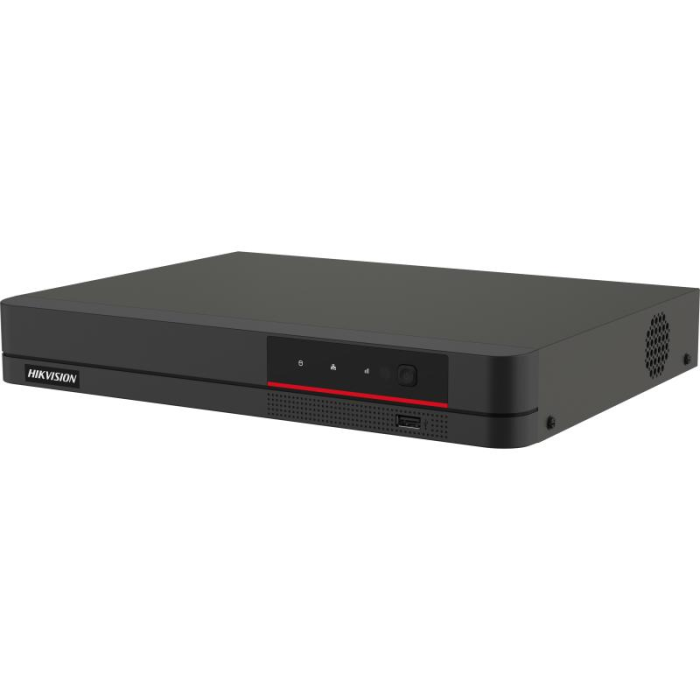

Hikvision DS-7604NI-K1/4P/4G(C) 4 Channel PoE AcuSense 4G NVR

Overview

The Hikvision DS-7604NI-K1/4P/4G(C) is a 4-channel 4G cellular NVR — an entry-tier Hikvision network video recorder with a built-in 4G LTE cellular WAN modem, allowing it to transmit recordings, alerts and live views over a mobile network without needing fixed-line broadband. Designed for remote-site installs, temporary deployments and mobile / portable surveillance applications. It records H.265+ / H.265 / H.264+ / H.264 with H.265+ compression cutting storage by up to 75%. Recording resolution up to 8 MP per channel. DecodingWhat is Decoding Capability capacity: 1-ch @ 8 MP, 3-ch @ 4 MP, or 6-ch @ 1080p simultaneously (30 fps).

Storage: 1 × SATA HDD bay, accepting a drive up to 8 TB. Incoming bandwidth 40 Mbps / outgoing bandwidth 80 Mbps. 4-channel synchronous playback. Smart search / smart playback improves review efficiency by jumping straight to motion or event-flagged segments. Stream-over-TLS encryption protects recordings in transit, including the cellular backhaul leg.

The defining feature of this NVR is its 4G LTE cellular WAN: a micro SIM card slot on the rear panel connects directly to a mobile network using the supplied SMA antenna module (3 m cable). LTE-FDD bands B1 / B3 / B5 / B7 / B8 / B20 / B28; LTE-TDD bands B38 / B40 / B41; WCDMA fallback B1 / B5 / B8; GSM/EDGE fallback 850 / 900 / 1800 MHz — covering all UK mobile networks (EE, Vodafone, O2, Three) plus EU and most international roaming carriers. An optional GPS antenna can be added via a second ANT interface for asset-tracking / fleet applications. Network keep-alive, data-usage monitoring, real-time data display and configurable usage notifications help installers manage SIM data allowances and avoid bill shock. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI runs entirely camera-side — pair with Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras to log perimeter, line-crossing and intrusion events transparently. For on-NVR AI channels, see the K-tier NXI range (Wave 5e) or iDS-M-X DeepinMind (Wave 5a).

Output: 1 × HDMI up to 4K (3840 × 2160) @ 30 Hz + 1 × VGA up to 1080p — simultaneous HDMI/VGA output for dual-monitor walls. 1-channel audio output (RCA, 1 KΩ) + 1-channel two-way audio (RCA, 2.0 Vp-p). Network: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet (a wired uplink alternative to the cellular WAN, if a wired connection becomes available), plus the built-in 4-port PoE switch (≤ 50 W budget, IEEE 802.3 af/at). Power: 48 VDC, 1.875 A, max consumption ≤ 10 W (without HDD, PoE off). Compact 1U desktop chassis 320 × 240 × 48 mm, approx. 1.18 kg without HDD. 32 simultaneous remote connections. Operating -10 °C to 55 °C. Approvals: CE, FCC, RoHS, REACH, WEEE, UKCA.

Key Features

• 4-channel IP camera input — H.265+ / H.265 / H.264+ / H.264, up to 8 MP per channel
• Built-in 4G LTE cellular WAN modem — micro SIM card slot + SMA antenna; LTE-FDD B1 / B3 / B5 / B7 / B8 / B20 / B28; LTE-TDD B38 / B40 / B41; WCDMA / GSM fallback
• Network keep-alive, data-usage monitoring and usage notification — manage SIM allowances and avoid surprise overage charges
• 1 × SATA bay for HDDs up to 8 TB — raw capacity up to 8 TB
• 4-port PoE switch built in — IEEE 802.3 af/at, ≤ 50 W total budget; cameras connect directly with no external PoE hardware
• Camera-side AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide recorded transparently — pair with Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras for perimeter / line-crossing / intrusion events
• Motion Detection 2.0 (up to 4-ch by-camera) + multiple VCA events
• DecodingWhat is Decoding Capability: 1-ch @ 8 MP / 3-ch @ 4 MP / 6-ch @ 1080p (30 fps); 4-ch synchronous playback
• H.265+ compression cuts storage by up to 75% vs H.264
• 1 × HDMI up to 4K (3840 × 2160) @ 30 Hz + 1 × VGA up to 1080p — simultaneous HDMI/VGA output
• 1-channel audio output (RCA, 1 KΩ) + 1-channel two-way audio (RCA, 2.0 Vp-p)
• 1 × RJ-45 10/100 Mbps self-adaptive Ethernet (wired uplink alternative to cellular)
• Optional GPS antenna via secondary ANT interface — suits asset-tracking / vehicle / fleet applications
• Smart search + smart playback for faster review of recorded footage
• Stream-over-TLS encryption secures playback / download (incl. over cellular)
• ONVIF Profile S/G + SDK + ISAPI; Hik-Connect, DDNS, Hik-Central, iVMS-4200, plug-in-free web access
• Front: 1 × USB 2.0; Rear: 1 × USB 2.0
• Compact 1U desktop chassis 320 × 240 × 48 mm; ~1.18 kg without HDD; ≤ 10 W
• Operating -10 °C to 55 °C; humidity 10–90% (non-condensing); 32 remote connections

Typical Applications

• Remote-site surveillance with no fixed-line broadband — rural farms, telecom masts, solar farms, water-treatment sites, off-grid utilities
• Construction-site CCTV — SIM-only deployment, drops in on day one without waiting for a BT line install
• Temporary deployments and pop-ups — event security, retail pop-ups, festival surveillance, film-set perimeter
• Mobile / vehicle / marine — pair with optional GPS antenna for asset-tracking + cellular backhaul
• Disaster-recovery / fallback NVR — standby unit at sites with intermittent fixed-line connectivity
• Small-to-mid surveillance installations with up to 4 IP cameras — retail, offices, restaurants, warehouses
• Single-box installs — built-in 4-port PoE switch eliminates external PoE hardware (≤ 50 W total budget)
• Sites with Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras — AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI runs camera-side and is recorded transparently here
• Trade installers needing 4K HDMI viewing with proven UK distributor support

Compatible Hikvision Devices

• Hikvision IP cameras — G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 (mini-bullet, turret, T-mount, dome, motorised-VF), AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Darkfighter, ANPR, panoramic, fisheye
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / Face Capture / Perimeter Protection cameras — AI events run camera-side and are recorded transparently here
• For cameras beyond the built-in 4-port PoE budget, add Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP
• Mobile network SIM cards — UK: EE, Vodafone, O2, Three (data-only / IoT M2M SIMs recommended); EU and international roaming carriers also supported
• Optional GPS antenna (SMA) for asset-tracking applications
• iVMS-4200 desktop client (Windows / macOS)
• Hik-Connect mobile app (iOS / Android) for remote view, playback and push notifications — perfect partner for cellular-backhauled installs
• Hik-Central enterprise VMS / Hik-Central Professional for multi-site centralised management
• ONVIF Profile S/G compatible third-party IP cameras
• Surveillance-grade HDDs — Seagate SkyHawk / WD Purple recommended (available pre-fitted in the -BB bundle variant)

What's in the Box

• 1 × Hikvision DS-7604NI-K1/4P/4G(C) 4G NVR
• 1 × 48 VDC power adapter
• 1 × USB mouse
• 1 × SMA cellular antenna module (3 m cable)
• 1 × HDD mounting screws
• 1 × quick start guide
• 1 × Cat-6 patch lead (model dependent)
