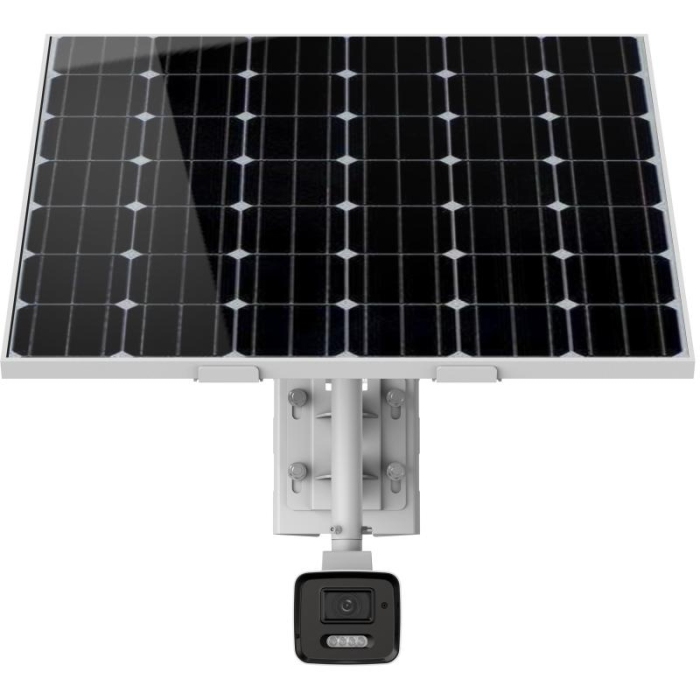

Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSense Varifocal Bullet 4G Solar Kit WHITE
The Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Varifocal Bullet 4G Solar Kit WHITE is a 4MP 4G solar-powered bullet camera kit with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. Hikvision model name: 4MP Motorized Varifocal Bullet Solar Power 4G Network Camera Kit.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2560 × 1440) resolution, 1/1.8" Progressive Scan CMOS sensor
- 80 W solar panel and 360 Wh rechargeable lithium battery - no mains power needed
- 120 dB WDR for clear images against strong backlight
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Battery management with level display, temperature, charge / discharge and low-battery sleep protection, remote wake-up
- 4G LTE connectivity (Micro SIM) - no network cabling needed
- IP66 weatherproof
- Built-in high-capacity eMMC / SSD storage for on-site recording
- 2.8 to 12 mm motorised varifocal lens, 107.4° to 39.8° horizontal field of view
- Up to 30 m IR night vision
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output (max. 12 VDC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: supplied 80 W solar panel and 360 Wh lithium battery (no mains needed)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Varifocal Bullet 4G Solar Kit WHITE — 4G Solar Camera Kit
4MP 4G solar-powered bullet camera kit with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. Hikvision: 4MP Motorized Varifocal Bullet Solar Power 4G Network Camera Kit.
Overview
The Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Varifocal Bullet 4G Solar Kit WHITE is a 4MP 4G solar-powered bullet camera kit with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. The motorised 2.8 to 12 mm varifocal lens is zoomed and focused remotely, so the field of view can be set from the recorder or app. It records colour down to 0.0005 lux and 0 lux with IR. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. The kit's solar panel and lithium battery power the camera and 4G router off-grid, so it can be installed where there is no mains power or network cable. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2560 × 1440) resolution, 1/1.8" Progressive Scan CMOS sensor
- 80 W solar panel and 360 Wh rechargeable lithium battery - no mains power needed
- 120 dB WDR for clear images against strong backlight
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Battery management with level display, temperature, charge / discharge and low-battery sleep protection, remote wake-up
- 4G LTE connectivity (Micro SIM) - no network cabling needed
- IP66 weatherproof
- Built-in high-capacity eMMC / SSD storage for on-site recording
- 2.8 to 12 mm motorised varifocal lens, 107.4° to 39.8° horizontal field of view
- Up to 30 m IR night vision
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output (max. 12 VDC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: supplied 80 W solar panel and 360 Wh lithium battery (no mains needed)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Construction sites, farms and remote compounds - no mains power or network cabling
- Temporary and event sites - quick to deploy and relocate
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- Supplied 80 W solar panel and 360 Wh lithium battery (no mains needed)
- Hikvision wall, pole and junction-box brackets for this housing (see datasheet)
What's in the Box
- 1 × Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Varifocal Bullet 4G Solar Kit WHITE
- Solar panel, battery, 4G router and mounting hardware as supplied in the Hikvision kit (see datasheet)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSense Varifocal Bullet 4G Solar Kit WHITE
Specifications as published by Hikvision (22-10-2026) for DS-2XS6A46G1-IZS/C36S80(2.8-12mm). Where Hikvision lists variants (e.g. -2U, -S), the values for this model apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2XS6A46G1-IZS/C36S80(2.8-12mm) |
| MPN | DS-2XS6A46G1-IZS/C36S80(2.8-12mm) |
| EAN | 6942160420097 |
| Brand | Hikvision |
| Hikvision product name | 4MP Motorized Varifocal Bullet Solar Power 4G Network Camera Kit |
| Product Type | 4G Solar Camera Kit |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5° |
| Lens Type | Auto, Semi-auto, Manual |
| Iris Type | Auto-iris |
| Aperture | 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6 |
| Lens Mount | All In One Lens |
| Pixel Density | |
| DORI | 2.8 to 12 mm: Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | Performance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480) |
| Video Compression | Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+ |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | Hik-Connect (proactive mode also supports), Hik-central Professional |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Communication | |
| SIM Card Type | MicroSIM |
| Frequency | DS-2XS6A46G1-IZS/C36S80: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz DS-2XS6A46G1-IZS/C36S80(US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5 DS-2XS6A46G1-IZS/C36S80(LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz DS-2XS6A46G1-IZS/C36S80(JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/6/8/19 |
| Standard | DS-2XS6A46G1-IZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A46G1-IZS/C36S80 (US): LTE-FDD/WCDMA DS-2XS6A46G1-IZS/C36S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A46G1-IZS/C36S80 (JP): LTE-TDD/LTE-FDD/WCDMA |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Satellite Positioning | |
| Satellite Positioning Detection | GPS |
| Interface | |
| Audio | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 12 VDC, 1 A) |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB, Built-in 256 GB eMMC storage (256 GB device model supports), Built-in 512 GB SSD storage (512 GB device model supports), Built-in 1 TB SSD storage (1 TB device model supports) |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power Output | 12 VDC, max. 1000 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
| General | |
| Power | 12 VDC ± 20%, 4-pin M8 waterproof connector 1 TB/512 GB device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W 3. The max. power consumption: 20 W (6 W if without 12 V load) Other device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 3 W 3. The max. power consumption: 18 W (6 W if without 12 V load) |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimension | 816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled) |
| Package Dimension | 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0") |
| Weight | Approx. 26.450 kg (58.3 lb.) |
| With Package Weight | Approx. 32.715 kg (72.1 lb.) |
| Storage Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter |
| Battery | |
| Battery Type | Lithium |
| Capacity | 360 Wh (90 Wh for each battery) |
| Battery Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Battery Life | More than 500 cycles |
| Cycle Lifetime | Proactive mode: 5 days, Standby mode: 80 days *in cloudy/rainy days (25 °C) |
| Battery Weight | Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery) |
| Approval | |
| EMC | CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) |
| RF | CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133); ICASA: same as CE-RED; IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment) |
| Safety | CB (IEC 62368-1:2014+A11) CE-LVD/UKCA (EN 62368-1:2014/A11:2017) LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Camera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance |
Frequently Asked Questions
What lens does the Hikvision DS-2XS6A46G1-IZS/C36S80 have?
2.8 to 12 mm motorised varifocal, horizontal field of view 107.4° to 39.8°.
What is the night-vision range?
30 m IR.
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles, so line-crossing and intrusion alarms ignore animals, leaves and rain.
How is it powered?
Supplied 80 W solar panel and 360 Wh lithium battery (no mains needed).
Is it suitable for outdoor use?
Yes — IP66.
Does it record locally?
Yes — microSD card up to 256 GB, plus NAS and NVR recording.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2XS6A46G1-IZS/C36S80 4MP 2.8-12mm 30m IR AcuSense Varifocal Bullet 4G Solar Kit WHITE
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2XS6A46G1-IZS/C36S80 Data Sheet (official PDF) | Download | |
| Hikvision DS-2XS6A46G1-IZS/C36S80 User Manual (official PDF) | Download | |
| Hikvision DS-2XS6A46G1-IZS/C36S80 product page | Web | View on hikvision.com |
| Browse all 4MP Hikvision IP cameras | Web | View IP cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
