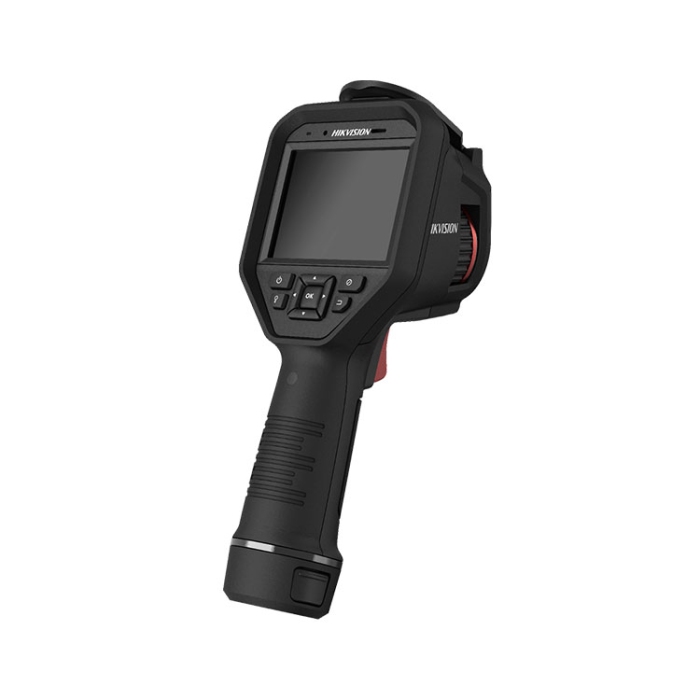

DS-2TP21B-6AVF/W Hikvision Temperature Scanning Thermography Handheld Wireless Camera
Hikvision DS-2TP21B-6AVF/W Thermal Handheld Wireless Camera
Temperature Screening Thermographic Handheld Camera
Thermal Lens: 6.2mm 160×120
Optical Resolution: 2MP, 5MP & 8MP
The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a 160×120 resolution thermal detector. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine
- 160 × 120 resolution (thermal), and 8 MP resolution (optical)
- DDE,3D DNR, and adaptive AGC
- 640 × 480 resolution 3.5” LCD touch display
- Up to five hours continuous running
- Temperature measurement range: 30°C to 45°C
- Temperature measurement accuracy: ±0.5°C
* Biometric recognition products are not 100% applicable to anti-spoofing environments.If you require a higher security level, use multiple authentication modes.
* In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to warm the device up.

Thermal
- Image Sensor VOx Uncooled Focal Plane Arrays
- Resolution 160×120
- Pixel Interval17μm
- Response Waveband 8μm to 14μm
- NETDLess than 40 mK (@25°C,F#=1.1)
- Focal Length 6.2mm
- Focus Mode Manual
- Field Of View 25° × 18.7°
- IFOV 2.74 mrad
- Image Frequency25 hz
- ApertureF 1.1
Optical
- Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
- Video Resolution640 × 480
Thermography
- Rules Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
- Thermographic RangeFrom 30 °C to 45 °C
- Accuracy± 0.5 °C
Image Display
- Monitor 640 × 480 resolution 3.5-inch LCD touch display
- Image Mode Thermal view, B/W optical view, image fusion view are selectable
- Palettes Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
- Image FusionFusion view of thermal view and overlaid details of the optical channel
- Digital ZoomThermal:1×, 2×, 4×
System Function
- Laser LightSupport (Point to the thermography target)
- CaptureThermal/Optical/Fusion image
- VideoThermal/Optical/Fusion image
- Text Comment Yes
- Voice Comment Yes
- Wi-Fi Yes
- Storage Built-in memory module (16 G)
- ClientiVMS-4800 (PC);Hik-Thermal (Mobile APP)
- Battery Type Dismountable and rechargeable Li-ion Battery
- Battery Operating Time 5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.
General
- Hardware InterfaceType-C USB
- Power Supply5 VDC/2 A
- Power Consumption Max. 4.5 W
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Protection Leve lIP54
- Drop Test Height 2 m (6.56 feet)
- weight with Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)
- Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
