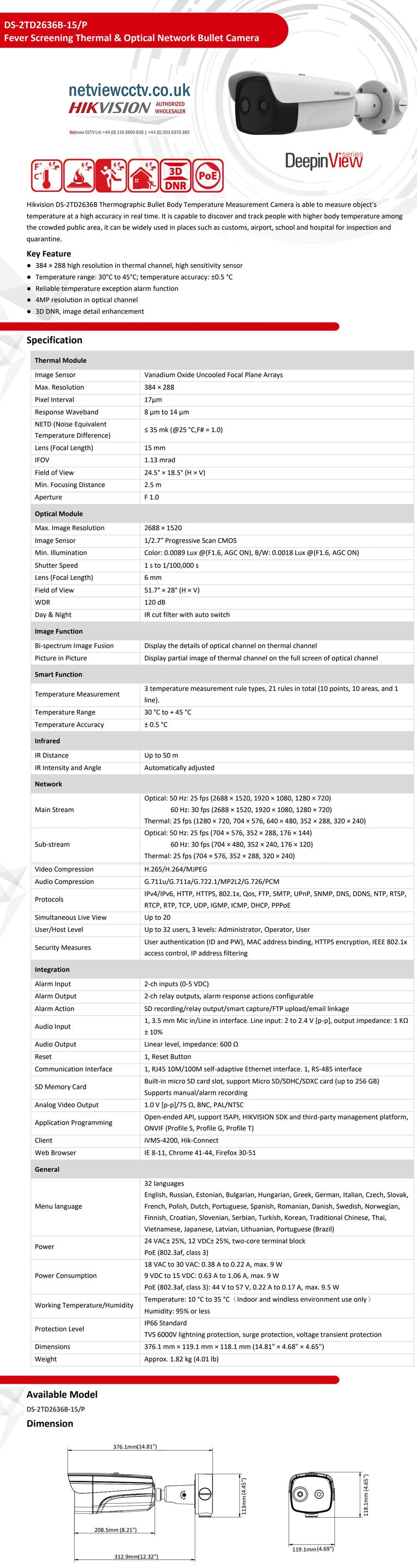

DS-2TD2636B-15/P Hikvision 15mm Temperature Scanning Thermal Bullet Camera
Hikvision DS-2TD2636B-15/P High End Thermal IP Camera
Temperature Screening Thermographic Bullet Camera
Thermal Lens: 15mm 384×288
Optical lens: 6mm 2688×1520 (4MP)
Optimal Distances:
Hikvision DS-2TD2636B Thermographic Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.
- High sensitivity thermal module with 384 x 288 resolution
- NETD is less than 40 mk (@25° C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Reliable Temperature detection alarm
- High quality optical module with 4 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
* Biometric recognition products are not 100% applicable to anti-spoofing environments.If you require a higher security level, use multiple authentication modes.
* In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to warm the device up.

Thermal
- Image Sensor VOx Uncooled Focal Plane Arrays
- Resolution3 84×288
- Pixel Interval 17μm
- Response Waveband 8μm to 14μm
- NETD Less than 40 mK (@25°C,F#=1.0)
- Focal Length 15mm
- Focus Mode Athermalized
- IFOV 1.13 mrad
- Aperture F1.0
- Field Of View 24.2°× 18.4° (H × V)
- Min. Focusing Distance 2.5 m
Optical
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688×1520, 4MP
- Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
- Field Of View51.7° × 28° (H × V)
- Focal Length6mm
- Focus ModeFixed
- Shutter Speed1s to 1/100,000s
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
- Day & Night ModeIR cut filter with auto switch
- WDR120 dB
Illuminator
- IR DistanceUp to 50 m
- IR Intensity And AngleAutomatically adjusted
Feature
- Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
Smart Function
- Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
- Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
- Temperature Accuracy± 0.5 °C
Network
- Main StreamThermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
- Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
- Simultaneous Live ViewUp to 20
Interface
- ClientiVMS-4200, Hik-Connect
- Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
- Alarm Input2-ch inputs (0-5vDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600Ω
- RS4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
- Analog Video Output1.0V [p-p]/75Ω, BNC, PAL/NTSC
- Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
- On-Board StorageBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- WiperNo
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
- Power Consumption18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
- Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
- WeightApprox. 1.82 kg (4.01 lb)
Frequently Asked Questions
What is the Hikvision DS-2TD2636B-15/P?
A high-end bi-spectrum thermographic bullet camera that measures the temperature of objects in real time alongside a normal video image, designed for longer-range monitoring.
What lenses does it have?
A 15mm thermal lens with a higher 384 × 288 thermal resolution, paired with a 6mm optical lens (4MP, 2688 × 1520).
What is it used for?
Real-time temperature measurement and monitoring over greater distances — industrial, fire-prevention and screening applications.
Is it weatherproof?
Yes — IP66 rated for outdoor installation.
Which recorders is it compatible with?
Hikvision NVRs and third-party systems via ONVIF.
