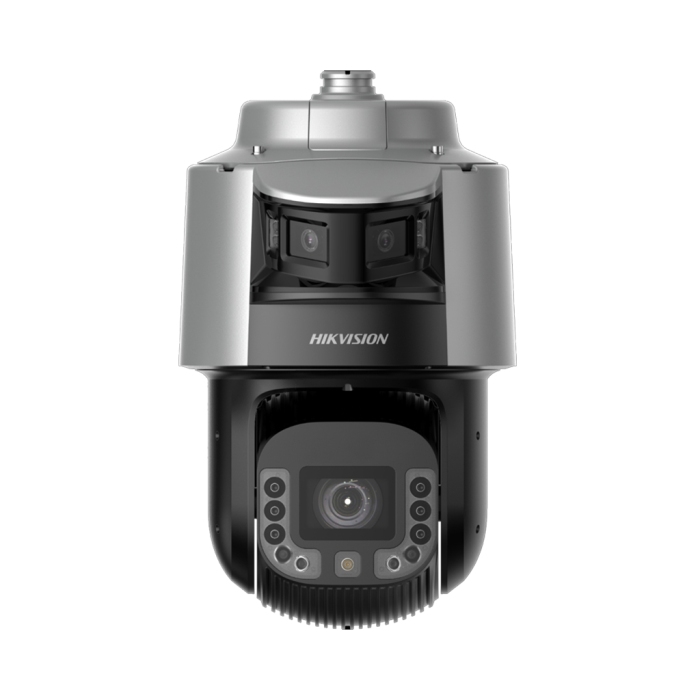

4MP TandemVu 180° PTZ DS-2SF8C442MXS-DLW(24F0)(P3) 300m IR 42X Zoom

Overview

The Hikvision DS-2SF8C442MXS-DLW(24F0)(P3) is a TandemVu 180° quad-panoramic + PTZ multi-sensor camera — 4 fixed-lens panoramic cameras (stitched 180° view) + 1 PTZ DarkFighter dome. Four fixed lenses stitch together a continuous 180° panoramic view across the entire scene; the integrated PTZ dome simultaneously zooms in on any target up to 42× optical magnification. Ideal for forecourts, large car parks, town-centre installations and any site where you need both 'whole scene at all times' situational awareness AND detailed PTZ tracking.

DarkFighter ultra-low-light tier preserves image quality down to 0.001 lux on both the panoramic and PTZ sensors. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI runs on-camera with human / vehicle classification. Smart Tracking automatically follows moving targets that cross the 180° panoramic field of view — the PTZ dome zooms to keep the subject centred and detailed. Integrated wiper keeps the optics clear in rain and dust.

Pan range: 0° to 360° (continuous). Tilt: -20° to 90° (auto-flip). Pan and tilt speeds are user-configurable with preset patrols, scheduled tours and event-triggered movements. H.265+ / H.265 / H.264+ / H.264 / MJPEG compression. ONVIF Profile S/G/T conformant; supports Hikvision Hik-Connect P2P, Hik-Central, iVMS-4200 and plug-in-free web access.

Construction: IP66 + IP67 weatherproof, IK10 impact rating. Dimensions Ø 280 × 540 mm, weight ≤ 12 kg. Power: 24 VAC + Hi-PoE ≤ 80 W. Audio: 1-ch in / 1-ch out. Alarm I/O: 7 in / 2 out. UK CE / UKCA certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor.

Key Features

• 4 MP × 4 panoramic + 4 MP PTZ resolution
• 42× optical zoom (PTZ 5.9 mm – 247.8 mm; panoramic 4 × fixed lens)
• 300 m IR range
• DarkFighter ultra-low-light sensor (down to 0.001 lux)
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI on-camera human / vehicle classification (Line Crossing, Intrusion, Region Entrance/Exit)
• Smart Tracking auto-tracks moving targets across the scene
• TandemVu multi-sensor: 4 fixed-lens panoramic cameras (stitched 180° view) + 1 PTZ DarkFighter dome
• Pan range: 0° to 360° (continuous)
• Tilt range: -20° to 90° (auto-flip)
• 300 presets, 8 patrols (32 presets each), 4 patterns
• Audio: 1-ch in / 1-ch out
• Alarm I/O: 7 in / 2 out
• H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression
• Dual-stream encoding (main stream + sub-stream)
• 16 privacy mask zones; 24 view angle / E-PTZ
• WDR 120 dB (3D-DNR), HLC, BLC, defog
• IP66 + IP67 weatherproof, IK10 impact rating
• Dimensions Ø 280 × 540 mm; weight ≤ 12 kg
• Power: 24 VAC + Hi-PoE ≤ 80 W
• ONVIF Profile S/G/T, Hik-Connect P2P, Hik-Central, iVMS-4200, plug-in-free web access
• HTTPS, IEEE 802.1X, IP filter, stream encryption
• UK CE / UKCA certified

Typical Applications

• Forecourts and large car parks — continuous 180° panoramic of the whole site + PTZ for detail
• Town-centre installations with crowd monitoring + targeted PTZ follow
• Large public sites (squares, plazas, transport hubs)
• Sites with operator-attended monitoring rooms
• Replacement for multiple fixed cameras + separate PTZ — single camera, single drop, single mount
• Sites needing wide-area coverage from a single camera — replaces multiple fixed cameras
• Pre-set patrol routines for unattended monitoring of multiple zones
• Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock

Compatible Hikvision Devices

• Hikvision NVR range — iDS-* AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide (Wave 5a), DS-9xxx-NI storage (5b), DS-9xxx VPro AcuSeekWhat is Hikvision AcuSeek (5c), DS-7xxxNI-M consumer storage (5d), DS-7xxxNXI-K AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide (5e), 4G cellular NVR (5f-1), DS-7xxx VPro I-tier (5f-2)
• Hikvision iVMS-4200 desktop client (Windows / macOS) for multi-camera management
• Hik-Connect mobile app (iOS / Android) for remote view, playback and push notifications
• Hik-Central enterprise VMS / Hik-Central Professional for multi-site centralised PTZ control
• Hikvision DS-1200KI / DS-1600KI PTZ network keyboards for joystick control
• ONVIF Profile S/G/T compatible third-party VMS and NVR systems
• Mounting brackets — refer to the DS-1602ZJ / DS-1604ZJ / DS-1691ZJ wall, corner, pole and pendant mount range

What's in the Box

• 1 × Hikvision DS-2SF8C442MXS-DLW(24F0)(P3) TandemVu 8-Series 180° Quad-Panoramic + 42× PTZ
• 1 × mounting plate / hardware kit
• 1 × waterproof connector kit
• 1 × cable / connector accessory bag
• 1 × quick start guide
