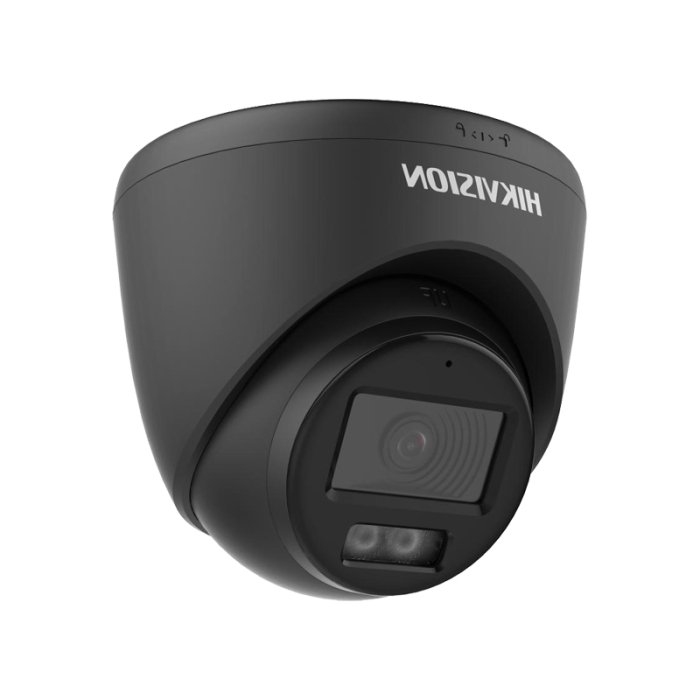

Hikvision DS-2CE72UF3T-LSYE 4K (8MP) PoC Smart Hybrid ColorVu Camera with Audio in BLACK
The Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black is a 4K (8 MP) Turbo HD Smart HybridSmart Hybrid Light Light turret — white-light LED + IR illumination with selectable colour / IR / hybrid modes, built-in microphone and audio-output for 2-way audio over coax (AoCWhat is Hikvision AOC). 2.8 mm fixed fixed lens, 40 m IR range, IP67 rated body, and 5-in-1 hybrid coax output drops straight into any existing DVR or coax run.
Smart HybridSmart Hybrid Light Light hybrid white-light LED + IR illumination — colour at night when triggered (motion / event), 24/7 colour with white-light always-on, or IR-only for covert mode. Built-in microphone and audio-output enable 2-way audio over coax (AoCWhat is Hikvision AOC) when paired with a compatible Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR — no separate audio cable run. Power-over-Coax (PoCWhat is Hikvision PoC) — video, control and power all ride one coax cable from a PoCWhat is Hikvision PoC-capable DVR (no separate 12 VDC supply). 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.
Key Features
- 4K (8 MP) resolution (3840 x 2160)
- 2.8 mm fixed fixed lens
- 40 m IR range with Smart IR
- Smart HybridSmart Hybrid Light Light — auto IR / white-light / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 modes
- 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or coax cable run (BNC)
- Built-in microphone + audio-output — 2-way audio over coax (AoCWhat is Hikvision AOC)
- Power-over-Coax (PoCWhat is Hikvision PoC) — video + power on a single coax cable
- Digital WDR + 3D-DNR for clean low-light / back-lit scenes
- IP67 weatherproof
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC or PoCWhat is Hikvision PoC
- CE / UKCA / RoHS approved
Note: Smart HybridSmart Hybrid Light Light Turbo HD cameras include built-in microphone and audio-output for 2-way audio over coax. Pair with a compatible Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR (audio-over-coax / AoCWhat is Hikvision AOC) to record audio alongside video without running a separate audio cable.
Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black — 4K (8 MP) Smart HybridSmart Hybrid Light Light Turret
4K (8 MP) 4K (8 MP) Smart HybridSmart Hybrid Light Light Turret, 2.8 mm fixed lens, 40 m IR, Smart HybridSmart Hybrid Light Light (white-light LED + IR + selectable modes), 2-way audio over coax (AoCWhat is Hikvision AOC), PoCWhat is Hikvision PoC, IP67 rated.
Overview
The Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black is a 4K (8 MP) Turbo HD Smart HybridSmart Hybrid Light Light turret — an analogue camera that brings IP-style hybrid white-light / IR illumination and ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026-style colour-at-night imaging down the existing coax cable run, no IP migration required. Built-in microphone and audio-output deliver 2-way audio over coax (AoCWhat is Hikvision AOC) when paired with a compatible Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR.
Smart HybridSmart Hybrid Light Light works in three selectable modes. Hybrid (default) — IR-only at night for unobtrusive imaging, white-light LED triggered on motion / event for colour capture. White-light always-on — 24/7 full-colour imaging for premises that benefit from a visibly-lit deterrent. IR-only — covert mode for back-of-house deployments.
5-in-1 hybrid coax is the major selling angle. The DS-2CE72UF3T-LSYE(2.8mm)/Black auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the 4K (8 MP) camera. Digital WDR + 3D-DNR clean up back-lit and noisy low-light scenes.
Construction: IP67 weatherproof housing, -40 °C to 60 °C operating range. Available in black for matt installs (gable boards, soffits, dark facias). Power: 12 VDC or Power-over-Coax (PoCWhat is Hikvision PoC) from a PoCWhat is Hikvision PoC-capable DVR. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.
Key Features
- 4K (8 MP) resolution (3840 x 2160)
- 1/1.8″ Progressive Scan CMOS sensor (4K)
- 2.8 mm fixed fixed lens
- F1.6 / F2.0 typical aperture
- 40 m IR range with Smart IR intensity adjustment
- Smart HybridSmart Hybrid Light Light — auto IR / white-light / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 modes
- White-light LED illumination (event-triggered or always-on)
- 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or BNC coax run
- Digital WDR (DWDR)
- 3D-DNR digital noise reduction
- Day & Night with IR-cut filter (auto-switch)
- On-screen menu adjustable from DVR over coax (UTC)
- Built-in microphone — 2-way audio over coax (AoCWhat is Hikvision AOC)
- Audio-output for AoCWhat is Hikvision AOC playback when paired with a compatible Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR
- Power-over-Coax (PoCWhat is Hikvision PoC) — single coax cable carries video + power
- IP67 rated outdoor body
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC / PoCWhat is Hikvision PoC
- CE / UKCA / FCC / RoHS / REACH / WEEE certified
- Black housing — for matt / discreet installs (soffits, dark facias, premium retail)
Typical Applications
- Black-housing matt installs — soffits, dark facias, premium retail interiors where a white camera body would be visually intrusive
- Domestic / residential perimeter — selectable hybrid white-light + IR for colour-at-night without permanent white-light glare
- Back-yard / drive-way coverage — white-light LED kicks in on motion for colour event capture
- Hospitality and retail back-of-house — selectable IR-only mode keeps the camera unobtrusive while still delivering AoCWhat is Hikvision AOC audio
- Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
- 2-way audio installations — AoCWhat is Hikvision AOC pairs with Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVRs for recorded audio alongside video without separate cabling
- Single-coax installs — PoCWhat is Hikvision PoC removes the need for a separate 12 VDC supply at the camera end
Compatible Hikvision Devices
- PoCWhat is Hikvision PoC-capable Hikvision Turbo HD DVRs — iDS-7200HUHI-M1/P, DS-7200HUHI-K1/P (PoCWhat is Hikvision PoC variants supply video + power on one coax)
- Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
- Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
- Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
- Hikvision iVMS-4200 desktop client when used with a compatible DVR
- Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
- Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input
What's in the Box
- 1 × Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black 4K (8 MP) Smart HybridSmart Hybrid Light Light Turret
- 1 × mounting bracket / hardware kit
- 1 × cable / connector accessory bag
- 1 × waterproof BNC / power adaptor set
- 1 × quick start guide
Further reading
📄 Download: Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black Datasheet (PDF) — full technical specification including video-format compatibility table, I/O wiring diagram and approval certificates.
Detailed Specifications — Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black
Full technical specification taken from the official Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black 4K (8 MP) Smart Hybrid Light Turret datasheet.
| Camera & Image | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS (4K) |
| Resolution | 4K (8 MP) (3840 x 2160) |
| Max Frame Rate | max 3840 × 2160 @ 15 fps; 1920 × 1080 @ 25/30 fps |
| Minimum Illumination | 0.003 lux @ F1.6 (Colour); 0 lux with white-light LED or IR on |
| WDR | Digital WDR (DWDR) |
| Noise Reduction | 3D-DNR digital noise reduction |
| Shutter | 1/3 s to 1/100,000 s (auto / manual) |
| Day & Night | IR-cut filter with auto-switch |
| BLC / HLC | Supported |
| Lens & Optical | |
| Lens Type | Fixed |
| Focal Length | 2.8 mm fixed |
| Aperture | F1.6 |
| Lens Mount | Integrated (sealed) |
| IR Cut Filter | Yes — auto-switch |
| Illumination & Night Vision | |
| IR Range | 40 m Smart IR (intensity adjustment) |
| White-light LED Range | Up to 20 m (event / always-on / scheduled) |
| Smart Hybrid Light Modes | Hybrid (IR + white-light on trigger), White-light always on (24/7 colour), IR-only (covert) |
| Day/Night | IR-cut filter with auto-switch; selectable Colour / B/W / Auto |
| Video Output | |
| Video Standards | 5-in-1 hybrid coax — HD-TVI / AHD / HDCVI / CVBS |
| Auto-Detect | Yes — camera auto-detects DVR video standard on connection |
| Default Output | HD-TVI (switchable on-screen menu over coax) |
| Output Impedance | 75 ohm (BNC, composite-style) |
| Coaxial Cable Reach | Up to 500 m on RG-59 (HD-TVI); longer with video balun / amplifier |
| OSD Control | Up the Coax (UTC) — menu adjustable from compatible DVR over BNC |
| Audio | |
| Built-in Microphone | Yes — audio-over-coax (AoC) |
| Audio Output | Built-in audio-output (line-level) |
| Audio Transmission | Over-coax (AoC) on compatible Hikvision Turbo HD Acusense DVRs — no separate audio cable required |
| Audio Format | G.711u (compressed) over coax |
| PoC / Power | |
| Power-over-Coax (PoC) | Yes — supports single-coax power + video from a PoC-capable Hikvision Turbo HD DVR |
| PoC Standard | Hikvision PoC (proprietary) |
| Local Power Option | 12 VDC ± 25% (when not using PoC) |
| General | |
| Power Supply | 12 VDC ± 25% / PoC |
| Body / Form Factor | Turret (eyeball) - black housing |
| IP Rating | IP67 |
| Operating Temperature | -40 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Approvals | FCC, CE (EN 55032, EN 55035, EN 50130-4, EN 61000-3-2, EN 61000-3-3), UKCA, RoHS, REACH, WEEE |
Frequently Asked Questions
What is the Hikvision DS-2CE72UF3T-LSYE?
A 4K (8MP) Turbo HD Smart Hybrid Light turret camera with PoC, recording over standard coax cable.
What is Smart Hybrid Light?
White-light LEDs and IR with selectable colour, IR or hybrid night modes.
Does it have audio?
Yes — a built-in microphone and audio output for 2-way audio over coax (AoC).
What lens and IR range does it have?
A 2.8mm fixed lens with 40m IR.
What colour is this model?
Black, for a discreet finish.
Will it work with my existing DVR?
Yes — its 5-in-1 hybrid coax output (HD-TVI/AHD/HDCVI/CVBS) drops into any existing DVR or coax run.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
Documentation — Hikvision DS-2CE72UF3T-LSYE(2.8mm)/Black 4K (8 MP) Smart Hybrid Light Turret
Download the official Hikvision datasheet for the DS-2CE72UF3T-LSYE(2.8mm)/Black, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-2CE72UF3T-LSYE(2.8mm)/Black Product Datasheet | Download datasheet | |
| Browse all 4K (8 MP) HD analogue (Turbo HD) cameras | Web | View 4K (8 MP) HD analogue cameras |
| Browse all HD analogue / Turbo HD cameras (BNC) | Web | View HD cameras (BNC) |
| All CCTV cameras at Netview CCTV | Web | View all CCTV cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-2CE72UF3T-LSYE(2.8mm)/Black, contact our trade team on 0116 3800 838 or [email protected].
