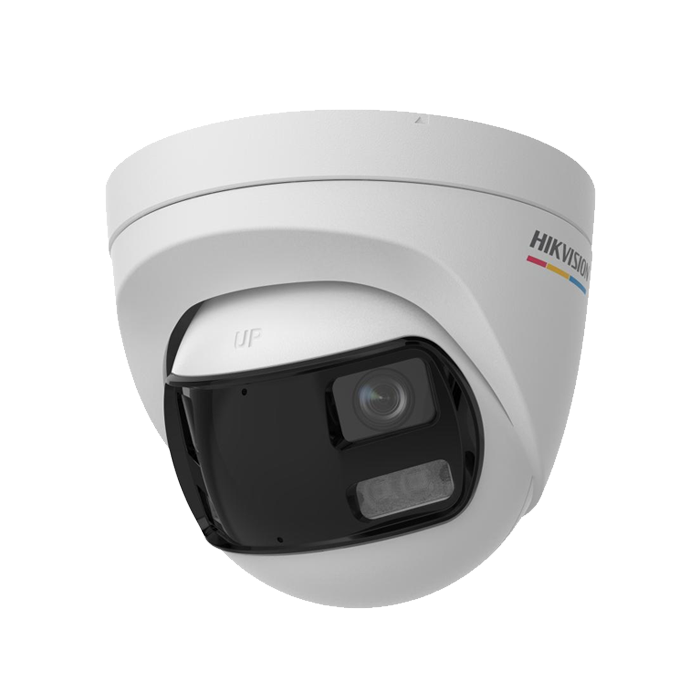

Hikvision DS-2CE72KF3TP-DLS 3K 180° Dual Lens Panoramic Smart Hybrid Camera with Audio

Overview

The Hikvision DS-2CE72KF3TP-DLS is a 3K (5 MP) dual-lens panoramic Turbo HD camera — twin 2.8 mm sensors stitch a 180° panoramic image in-camera so one BNC channel covers what would normally need two cameras. Built-in microphone and audio-output give 2-way audio over coax (AoCWhat is Hikvision AOC) and the housing supports Power-over-Coax (PoCWhat is Hikvision PoC) for single-cable installs into PoCWhat is Hikvision PoC-capable Turbo HD DVRs.

Two 2.8 mm sensors mounted on a single board capture independent fields, with in-camera stitching producing a single 180° panoramic output stream — the DVR sees one BNC channel. Combined 40 m Smart IR illuminates both sensor fields evenly. Power-over-Coax (PoCWhat is Hikvision PoC) support means the camera draws its supply from the same coax cable as the video signal when paired with a PoCWhat is Hikvision PoC-capable Hikvision Turbo HD DVR.

5-in-1 hybrid coax is the major selling angle. The DS-2CE72KF3TP-DLS auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the 3K (5 MP) camera. Digital WDR + 3D-DNR clean up back-lit and noisy low-light scenes.

Construction: IP67 weatherproof housing, -40 °C to 60 °C operating range. Power: 12 VDC or Power-over-Coax (PoCWhat is Hikvision PoC) from a PoCWhat is Hikvision PoC-capable DVR. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.

Key Features

• 3K (5 MP) resolution (2960 x 1665 per lens)
• 1/2.7″ Progressive Scan CMOS sensor (3K)
• Dual 2.8 mm fixed lenses — 180° panoramic stitched view
• F1.6 / F2.0 typical aperture
• 40 m IR range with Smart IR intensity adjustment
• Twin 2.8 mm sensors stitched in-camera to 180° panoramic output
• 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
• Drops into any existing UK analogue DVR or BNC coax run
• Digital WDR (DWDR)
• 3D-DNR digital noise reduction
• Day & Night with IR-cut filter (auto-switch)
• On-screen menu adjustable from DVR over coax (UTC)
• Built-in microphone — 2-way audio over coax (AoCWhat is Hikvision AOC)
• Audio-output for AoCWhat is Hikvision AOC playback when paired with a compatible Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR
• Power-over-Coax (PoCWhat is Hikvision PoC) — single coax cable carries video + power
• IP67 rated outdoor body
• Operating temperature: -40 °C to 60 °C
• Power: 12 VDC / PoCWhat is Hikvision PoC
• CE / UKCA / FCC / RoHS / REACH / WEEE certified

Typical Applications

• Corner / wide-angle coverage — 180° panoramic view replaces two single-lens cameras on the same channel
• Reception areas, lobbies, retail counters — full frontage coverage from a single mount
• Car-park forecourts — one camera covers entry + exit lanes from a single pole
• Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
• Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
• 2-way audio installations — AoCWhat is Hikvision AOC pairs with Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVRs for recorded audio alongside video without separate cabling
• Single-coax installs — PoCWhat is Hikvision PoC removes the need for a separate 12 VDC supply at the camera end

Compatible Hikvision Devices

• PoCWhat is Hikvision PoC-capable Hikvision Turbo HD DVRs — iDS-7200HUHI-M1/P, DS-7200HUHI-K1/P (PoCWhat is Hikvision PoC variants supply video + power on one coax)
• Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
• Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
• Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
• Hikvision iVMS-4200 desktop client when used with a compatible DVR
• Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
• Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input

What's in the Box

• 1 × Hikvision DS-2CE72KF3TP-DLS 3K (5 MP) Dual-Lens Panoramic Turret
• 1 × mounting bracket / hardware kit
• 1 × cable / connector accessory bag
• 1 × waterproof BNC / power adaptor set
• 1 × quick start guide
