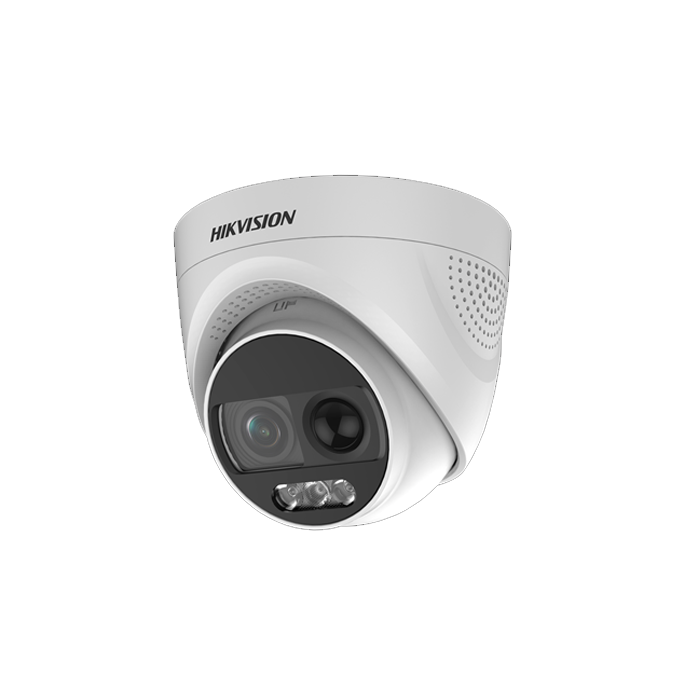

Hikvision DS-2CE72KF3T-PIRXO 3K 5MP ColorVu 2.8mm PIR Siren Turret Camera WHITE
The Hikvision DS-2CE72KF3T-PIRXO(2.8MM) is a 3K (5 MP) Turbo HD Smart HybridSmart Hybrid Light Light turret with integrated PIR motion detection and active strobe + siren deterrent — an analogue camera that delivers IP-style hybrid white-light/IR illumination plus PIR-triggered visual + audible warning on approach. 2.8 mm fixed fixed lens, 40 m IR range, IP67 rated body, and 5-in-1 hybrid coax output drops into any existing DVR or coax cable run.
Smart HybridSmart Hybrid Light Light hybrid white-light LED + IR illumination — colour at night when triggered (motion / event), 24/7 colour with white-light always-on, or IR-only for covert mode. PIR-triggered active deterrent — on-board strobe + siren fires on PIR motion detection for visual + audible warning on approach. 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.
Key Features
- 3K (5 MP) resolution (2960 x 1665)
- 2.8 mm fixed fixed lens
- 40 m IR range with Smart IR
- Smart HybridSmart Hybrid Light Light — auto IR / white-light / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 modes
- Built-in PIR motion detection + strobe + siren active deterrent
- 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or coax cable run (BNC)
- Digital WDR + 3D-DNR for clean low-light / back-lit scenes
- IP67 weatherproof
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC
- CE / UKCA / RoHS approved
Note: PIRXO variants combine Smart HybridSmart Hybrid Light Light with PIR motion detection and strobe/siren active deterrent — well suited to back-yard, garage, side-passage installs that benefit from visible + audible warning on human approach. Pair with a Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR for alarm-in integration.
Hikvision DS-2CE72KF3T-PIRXO(2.8MM) — 3K (5 MP) Smart HybridSmart Hybrid Light Light PIR Active-Deterrent Turret
3K (5 MP) 3K (5 MP) Smart HybridSmart Hybrid Light Light PIR Active-Deterrent Turret, 2.8 mm fixed lens, 40 m IR, Smart HybridSmart Hybrid Light Light + strobe/siren active deterrent, IP67 rated.
Overview
The Hikvision DS-2CE72KF3T-PIRXO(2.8MM) is a 3K (5 MP) Turbo HD Smart HybridSmart Hybrid Light Light turret with integrated PIR motion detection and active strobe + siren deterrent. It brings IP-style hybrid white-light / IR illumination, PIR-triggered alarm action and active deterrent down the existing coax cable run — no IP migration required.
Smart HybridSmart Hybrid Light Light works in three selectable modes. Hybrid (default) — IR-only at night for unobtrusive imaging, white-light LED triggered on motion / event for colour capture. White-light always-on — 24/7 full-colour imaging for premises that benefit from a visibly-lit deterrent. IR-only — covert mode for back-of-house deployments. Active deterrent: on-board strobe and siren fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems on motion or DVR alarm-in for visible / audible warning — PIR motion sensor triggers the deterrent on human-grade approach, ignoring small animal / foliage motion that triggers IR-only video analytics.
5-in-1 hybrid coax is the major selling angle. The DS-2CE72KF3T-PIRXO(2.8MM) auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the 3K (5 MP) camera. Digital WDR + 3D-DNR clean up back-lit and noisy low-light scenes.
Construction: IP67 weatherproof housing, -40 °C to 60 °C operating range. Power: 12 VDC. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.
Key Features
- 3K (5 MP) resolution (2960 x 1665)
- 1/2.7″ Progressive Scan CMOS sensor (3K)
- 2.8 mm fixed fixed lens
- F1.6 / F2.0 typical aperture
- 40 m IR range with Smart IR intensity adjustment
- Smart HybridSmart Hybrid Light Light — auto IR / white-light / ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 modes
- White-light LED illumination (event-triggered or always-on)
- Active strobe + siren deterrent — PIR-triggered
- 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or BNC coax run
- Digital WDR (DWDR)
- 3D-DNR digital noise reduction
- Day & Night with IR-cut filter (auto-switch)
- On-screen menu adjustable from DVR over coax (UTC)
- IP67 rated outdoor body
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC
- CE / UKCA / FCC / RoHS / REACH / WEEE certified
Typical Applications
- Domestic perimeter with active deterrent — PIR-triggered strobe + siren give visible / audible warning on human approach
- Back-yard / driveway / side-passage — PIR rejects small-animal / foliage motion that would otherwise trigger IR-only analytics
- Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
- Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
- Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
- Hikvision iVMS-4200 desktop client when used with a compatible DVR
- Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
- Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input
What's in the Box
- 1 × Hikvision DS-2CE72KF3T-PIRXO(2.8MM) 3K (5 MP) Smart HybridSmart Hybrid Light Light PIR Active-Deterrent Turret
- 1 × mounting bracket / hardware kit
- 1 × cable / connector accessory bag
- 1 × waterproof BNC / power adaptor set
- 1 × quick start guide
Further reading
📄 Download: Hikvision DS-2CE72KF3T-PIRXO(2.8MM) Datasheet (PDF) — full technical specification including video-format compatibility table, I/O wiring diagram and approval certificates.
Detailed Specifications — Hikvision DS-2CE72KF3T-PIRXO(2.8MM)
Full technical specification taken from the official Hikvision DS-2CE72KF3T-PIRXO(2.8MM) 3K (5 MP) Smart Hybrid Light PIR Active-Deterrent Turret datasheet.
| Camera & Image | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS (3K) |
| Resolution | 3K (5 MP) (2960 x 1665) |
| Max Frame Rate | max 2960 × 1665 @ 20 fps; 1920 × 1080 @ 25/30 fps |
| Minimum Illumination | 0.003 lux @ F1.6 (Colour); 0 lux with white-light LED or IR on |
| WDR | Digital WDR (DWDR) |
| Noise Reduction | 3D-DNR digital noise reduction |
| Shutter | 1/3 s to 1/100,000 s (auto / manual) |
| Day & Night | IR-cut filter with auto-switch |
| BLC / HLC | Supported |
| Lens & Optical | |
| Lens Type | Fixed |
| Focal Length | 2.8 mm fixed |
| Aperture | F1.6 |
| Lens Mount | Integrated (sealed) |
| IR Cut Filter | Yes — auto-switch |
| Illumination & Night Vision | |
| IR Range | 40 m Smart IR (intensity adjustment) |
| White-light LED Range | Up to 20 m (event / always-on / scheduled) |
| Smart Hybrid Light Modes | Hybrid (IR + white-light on trigger), White-light always on (24/7 colour), IR-only (covert) |
| Active Deterrent | Built-in strobe and siren — PIR-triggered |
| PIR Sensor | Yes — built-in passive infrared motion sensor (human-grade trigger) |
| Day/Night | IR-cut filter with auto-switch; selectable Colour / B/W / Auto |
| Video Output | |
| Video Standards | 5-in-1 hybrid coax — HD-TVI / AHD / HDCVI / CVBS |
| Auto-Detect | Yes — camera auto-detects DVR video standard on connection |
| Default Output | HD-TVI (switchable on-screen menu over coax) |
| Output Impedance | 75 ohm (BNC, composite-style) |
| Coaxial Cable Reach | Up to 500 m on RG-59 (HD-TVI); longer with video balun / amplifier |
| OSD Control | Up the Coax (UTC) — menu adjustable from compatible DVR over BNC |
| General | |
| Power Supply | 12 VDC ± 25% |
| Body / Form Factor | Turret (eyeball) - white housing |
| IP Rating | IP67 |
| Operating Temperature | -40 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Approvals | FCC, CE (EN 55032, EN 55035, EN 50130-4, EN 61000-3-2, EN 61000-3-3), UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-2CE72KF3T-PIRXO(2.8MM) 3K (5 MP) Smart Hybrid Light PIR Active-Deterrent Turret
Download the official Hikvision datasheet for the DS-2CE72KF3T-PIRXO(2.8MM), plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-2CE72KF3T-PIRXO(2.8MM) Product Datasheet | Download datasheet | |
| Browse all 3K (5 MP) HD analogue (Turbo HD) cameras | Web | View 3K (5 MP) HD analogue cameras |
| Browse all HD analogue / Turbo HD cameras (BNC) | Web | View HD cameras (BNC) |
| All CCTV cameras at Netview CCTV | Web | View all CCTV cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-2CE72KF3T-PIRXO(2.8MM), contact our trade team on 0116 3800 838 or [email protected].
