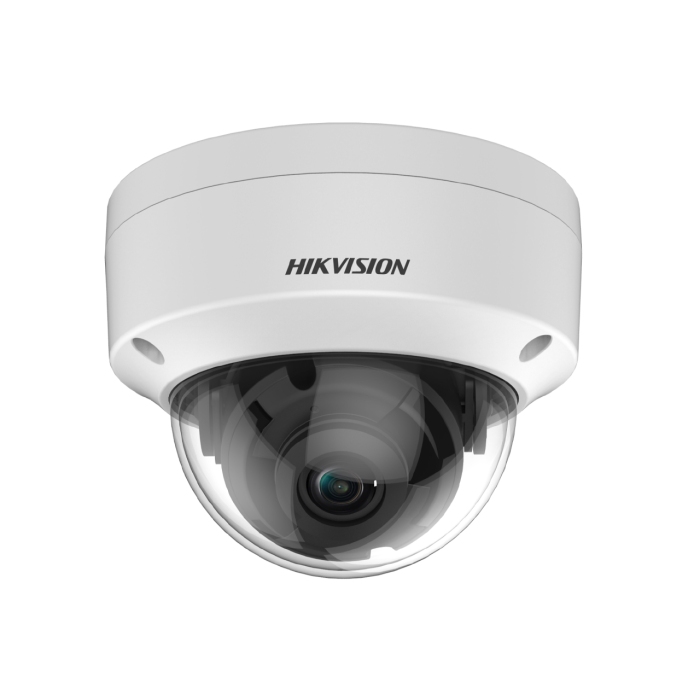

5MP PoC Hikvision DS-2CE57H0T-VPITE 2.8mm 85° Internal Vandal Dome Camera

Overview

The Hikvision DS-2CE57H0T-VPITE(2.8MM)(C) is a 5 MP Turbo HD vandal dome — IK10 impact-resistant housing for communal entrances, stairwells, low-mount perimeter and school environments. 2.8 mm fixed fixed lens, 20 m Smart IR, IP66 rated.

IK10 impact resistance is the headline spec. The dome housing is engineered to survive sustained physical attack — well suited to communal entrances, stairwells, school grounds, retail back-of-house and low-mount perimeter installs where exposed cameras are at risk. Power-over-Coax (PoCWhat is Hikvision PoC) support runs video + power on the same coax cable.

5-in-1 hybrid coax is the major selling angle. The DS-2CE57H0T-VPITE(2.8MM)(C) auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the 5 MP camera. Digital WDR + 3D-DNR clean up back-lit and noisy low-light scenes.

Construction: IP66 weatherproof housing with IK10 impact-resistant dome, -40 °C to 60 °C operating range. Power: 12 VDC or Power-over-Coax (PoCWhat is Hikvision PoC) from a PoCWhat is Hikvision PoC-capable DVR. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.

Key Features

• 5 MP resolution (2560 x 1944)
• 1/2.5″ Progressive Scan CMOS sensor (5 MP)
• 2.8 mm fixed fixed lens
• F1.6 / F2.0 typical aperture
• 20 m IR range with Smart IR intensity adjustment
• IK10 impact-resistant vandal dome housing
• 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
• Drops into any existing UK analogue DVR or BNC coax run
• Digital WDR (DWDR)
• 3D-DNR digital noise reduction
• Day & Night with IR-cut filter (auto-switch)
• On-screen menu adjustable from DVR over coax (UTC)
• Power-over-Coax (PoCWhat is Hikvision PoC) — single coax cable carries video + power
• IP66 rated outdoor body
• Operating temperature: -40 °C to 60 °C
• Power: 12 VDC / PoCWhat is Hikvision PoC
• CE / UKCA / FCC / RoHS / REACH / WEEE certified

Typical Applications

• Communal entrances / stairwells — IK10 impact resistance handles attack-prone sites
• School grounds and education sites — low-mount playground and corridor cameras need a vandal-rated dome
• Retail back-of-house and warehouse interiors
• Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
• Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
• Single-coax installs — PoCWhat is Hikvision PoC removes the need for a separate 12 VDC supply at the camera end

Compatible Hikvision Devices

• PoCWhat is Hikvision PoC-capable Hikvision Turbo HD DVRs — iDS-7200HUHI-M1/P, DS-7200HUHI-K1/P (PoCWhat is Hikvision PoC variants supply video + power on one coax)
• Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
• Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
• Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
• Hikvision iVMS-4200 desktop client when used with a compatible DVR
• Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
• Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input

What's in the Box

• 1 × Hikvision DS-2CE57H0T-VPITE(2.8MM)(C) 5 MP Vandal Dome
• 1 × mounting bracket / hardware kit
• 1 × cable / connector accessory bag
• 1 × waterproof BNC / power adaptor set
• 1 × quick start guide
