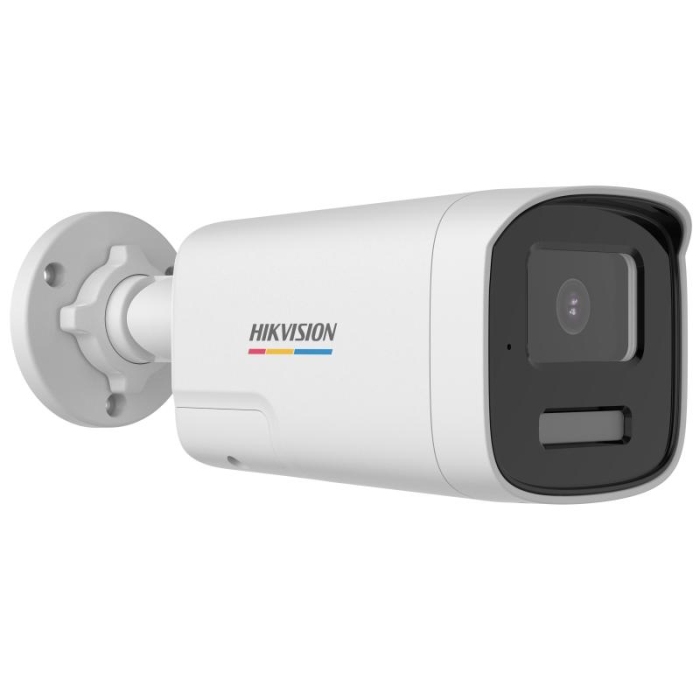

Hikvision DS-2CE12KF0T-LTS 3K ColorVu 2-Way Audio Bullet Camera 3.6mm
The Hikvision DS-2CE12KF0T-LTS(3.6MM) is a 3K (5 MP) Turbo HD ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 camera — F1.0 super-aperture for 24/7 colour imaging in low light with built-in microphone and audio-output (2-way audio over coax). 3.6 mm fixed lens, 40 m IR range, IP67 rated body, and 5-in-1 hybrid coax output (HD-TVI / AHD / HDCVI / CVBS auto-detect) so the camera drops straight into any existing DVR or coax run.
F1.0 super-aperture ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 optics deliver clean colour imaging down to extreme low light without relying on white-light LEDs — supplementary IR kicks in for total-darkness scenes. Built-in microphone and audio-output enable 2-way audio over coax (no separate audio cable run needed) when paired with an AoCWhat is Hikvision AOC-capable Turbo HD DVR. 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.
Key Features
- 3K (5 MP) resolution (2960 x 1665)
- 3.6 mm fixed lens
- 40 m IR range with Smart IR
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 F1.0 super-aperture — 24/7 colour imaging
- 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or coax cable run (BNC)
- Built-in microphone + audio-output — 2-way audio over coax
- Digital WDR + 3D-DNR for clean low-light / back-lit scenes
- IP67 weatherproof
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC
- CE / UKCA / RoHS approved
Note: -LTS Turbo HD cameras include built-in microphone and audio-output for 2-way audio over coax. Pair with a compatible Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR (audio-over-coax / AoCWhat is Hikvision AOC) to record audio alongside video without running a separate audio cable. ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 K10/K12 bullets are fixed-aperture F1.0 — no white-light LED on this variant; supplementary IR handles total-dark scenes.
Hikvision DS-2CE12KF0T-LTS(3.6MM) — 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 bullet
3K (5 MP) 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 bullet, 3.6 mm lens, 40 m IR, ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 F1.0 super-aperture (24/7 colour), 2-way audio over coax, IP67 rated.
Overview
The Hikvision DS-2CE12KF0T-LTS(3.6MM) is a 3K (5 MP) Turbo HD ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 bullet — the analogue camera with Hikvision's F1.0 super-aperture optics that deliver 24/7 colour imaging in low light without relying on white-light LEDs. Built-in microphone and audio-output deliver 2-way audio over coax when paired with a compatible Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR.
The F1.0 super-aperture lens pairs with a 1/2.7″ 3K CMOS sensor (2960 × 1665) to retain colour information at very low scene illumination. Supplementary IR (40 m range) kicks in for total-darkness scenes when ambient light is below the ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 threshold. Note: the K10 / K12 fixed-bullet variants are ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 fixed-aperture (no white-light LED) — for active deterrent with strobe/siren and white-light boost, see the DS-2CE72KF0T-LTS turret variants in the same Wave 9 launch.
5-in-1 hybrid coax is the major selling angle. The DS-2CE12KF0T-LTS(3.6MM) auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR: keep the recorder, keep the cables, swap in the 3K (5 MP) command. Digital WDR + 3D-DNR clean up back-lit scenes and noisy low-light footage.
Construction: IP67 weatherproof housing, -40 °C to 60 °C operating range. Power: 12 VDC. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.
Key Features
- 3K (5 MP) resolution (2960 x 1665)
- 1/2.7″ Progressive Scan CMOS sensor
- 3.6 mm fixed lens
- F1.0 super-aperture (ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026, fixed-aperture)
- 40 m IR range with Smart IR intensity adjustment
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 24/7 colour imaging — F1.0 fixed-aperture optics
- 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or BNC coax run
- Digital WDR (DWDR)
- 3D-DNR digital noise reduction
- Day & Night with IR-cut filter (auto-switch)
- Built-in microphone — -LTS suffix denotes 2-way audio
- Audio-output for 2-way audio over coax (AoCWhat is Hikvision AOC) when paired with a compatible Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR
- IP67 rated outdoor body
- Operating temperature: -40 °C to 60 °C
- Power: 12 VDC
- CE / UKCA / FCC / RoHS / REACH / WEEE certified
Typical Applications
- Low-light commercial premises — forecourts, back-of-house, perimeter installs needing colour-at-night without intrusive white light
- Domestic / residential perimeter — 24/7 colour imaging without bright white-light LEDs on neighbours
- Premium retail / hospitality — colour capture on entrance / car-park areas where IR-only mono imaging looks dated
- Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
- 2-way audio installations — -LTS audio-over-coax pairs with Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVRs for recorded audio alongside video without separate cabling
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
- Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
- Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
- Hikvision iVMS-4200 desktop client (Windows / macOS) when used with a compatible DVR
- Hik-Connect mobile app (iOS / Android) for remote view when used with a compatible DVR
- Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
- Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input
What's in the Box
- 1 × Hikvision DS-2CE12KF0T-LTS(3.6MM) 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 bullet
- 1 × mounting bracket / hardware kit
- 1 × cable / connector accessory bag
- 1 × waterproof BNC / power adaptor set
- 1 × quick start guide
📄 Download: Hikvision DS-2CE12KF0T-LTS(3.6MM) Datasheet (PDF) — full technical specification including video-format compatibility table, I/O wiring diagram and approval certificates.
Detailed Specifications — Hikvision DS-2CE12KF0T-LTS(3.6MM)
Full technical specification taken from the official Hikvision DS-2CE12KF0T-LTS(3.6MM) 3K ColorVu bullet datasheet.
| Camera & Image | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS (3K) |
| Resolution | 3K (5 MP) (2960 x 1665) |
| Max Frame Rate | max 2960 × 1665 @ 20 fps; 1920 × 1080 @ 25/30 fps |
| Minimum Illumination | 0.0005 lux @ F1.0 (Colour, with light); 0 lux with IR |
| WDR | Digital WDR (DWDR) |
| Noise Reduction | 3D-DNR digital noise reduction |
| Shutter | 1/3 s to 1/100,000 s (auto / manual) |
| Day & Night | IR-cut filter with auto-switch |
| BLC / HLC | Supported |
| Lens & Optical | |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Aperture | F1.0 (super-aperture, ColorVu) |
| Lens Mount | Integrated (sealed) |
| IR Cut Filter | Yes — auto-switch |
| Illumination & Night Vision | |
| IR Range | 40 m Smart IR (intensity adjustment) |
| ColorVu Mode | 24/7 colour imaging via F1.0 super-aperture optics — colour retained at very low scene illumination without white-light LED |
| Supplementary IR | Engages for total-darkness scenes (below ColorVu colour threshold) |
| Day/Night | IR-cut filter with auto-switch; selectable Colour / B/W / Auto |
| Video Output | |
| Video Standards | 5-in-1 hybrid coax — HD-TVI / AHD / HDCVI / CVBS |
| Auto-Detect | Yes — camera auto-detects DVR video standard on connection |
| Default Output | HD-TVI (switchable on-screen menu over coax) |
| Output Impedance | 75 ohm (BNC, composite-style) |
| Coaxial Cable Reach | Up to 500 m on RG-59 (HD-TVI); longer with video balun / amplifier |
| OSD Control | Up the Coax (UTC) — menu adjustable from compatible DVR over BNC |
| Audio | |
| Built-in Microphone | Yes — -LTS suffix denotes audio-over-coax (AoC) |
| Audio Output | Built-in audio-output (line-level) |
| Audio Transmission | Over-coax (AoC) on compatible Hikvision Turbo HD Acusense DVRs — no separate audio cable required |
| Audio Format | G.711u (compressed) over coax |
| General | |
| Power Supply | 12 VDC ± 25% |
| Body / Form Factor | Bullet - white housing |
| IP Rating | IP67 |
| Operating Temperature | -40 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Approvals | FCC, CE (EN 55032, EN 55035, EN 50130-4, EN 61000-3-2, EN 61000-3-3), UKCA, RoHS, REACH, WEEE |
Frequently Asked Questions
What is the Hikvision DS-2CE12KF0T-LTS?
A 3K (5MP) Turbo HD ColorVu bullet camera that records over standard coax cable.
Does it see in colour at night?
Yes — an F1.0 super-aperture lens gives 24/7 full-colour imaging in low light.
Does it have audio?
Yes — a built-in microphone and audio output for 2-way audio over coax.
What lens and IR range does this version have?
A 3.6mm fixed lens with 40m IR, giving a slightly narrower, longer-reaching view than the 2.8mm.
Will it work with my existing DVR?
Yes — its 5-in-1 hybrid coax output (HD-TVI/AHD/HDCVI/CVBS auto-detect) drops straight into any existing DVR or coax run.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
Documentation — Hikvision DS-2CE12KF0T-LTS(3.6MM) 3K ColorVu bullet
Download the official Hikvision datasheet for the DS-2CE12KF0T-LTS(3.6MM), plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-2CE12KF0T-LTS(3.6MM) Product Datasheet | Download datasheet | |
| Browse all 3K HD Hybrid (Turbo HD) cameras | Web | View 3K Turbo HD cameras |
| Browse all HD Hybrid / Turbo HD cameras at Netview CCTV | Web | View all HD Hybrid / Turbo HD cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-2CE12KF0T-LTS(3.6MM), contact our trade team on 0116 3800 838 or [email protected].
