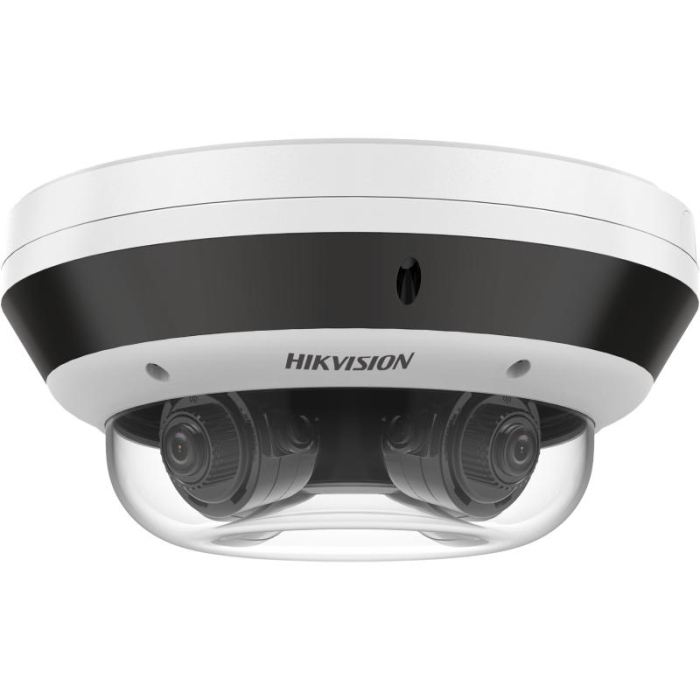

Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE
The Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE is a 4x 4MP 4-directional multisensor IP camera, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. Hikvision model name: 4-Directional Multisensor Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4x 4MP (2688 × 1520) resolution, 1/3" Progressive Scan CMOS sensor
- 4 adjustable lenses in one camera cover up to 360° with no blind spots; tilt angle adjustable per lens
- Each lens up to 4MP for clear, detailed images
- 120 dB WDR for clear images against strong backlight
- IP67 weatherproof and IK10 vandal-resistant
- 3D DNR for clean, sharp images
- 2.8 to 12 mm motorised varifocal lens, 102.4° to 31.2° horizontal field of view
- Up to 30 m IR night vision
- MicroSD slot up to 1 TB
- Alarm I/O: 2 inputs, 2 outputs (max. 24 VDC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE — IP Multisensor Camera
4x 4MP 4-directional multisensor IP camera, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. Hikvision: 4-Directional Multisensor Network Camera.
Overview
The Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE is a 4x 4MP 4-directional multisensor IP camera, 2.8 to 12 mm motorised varifocal lens and 30 m IR night vision. The motorised 2.8 to 12 mm varifocal lens is zoomed and focused remotely, so the field of view can be set from the recorder or app. It records colour down to 0.005 lux and 0 lux with IR. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4x 4MP (2688 × 1520) resolution, 1/3" Progressive Scan CMOS sensor
- 4 adjustable lenses in one camera cover up to 360° with no blind spots; tilt angle adjustable per lens
- Each lens up to 4MP for clear, detailed images
- 120 dB WDR for clear images against strong backlight
- IP67 weatherproof and IK10 vandal-resistant
- 3D DNR for clean, sharp images
- 2.8 to 12 mm motorised varifocal lens, 102.4° to 31.2° horizontal field of view
- Up to 30 m IR night vision
- MicroSD slot up to 1 TB
- Alarm I/O: 2 inputs, 2 outputs (max. 24 VDC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, junctions and large open areas - four views from one mounting point
- Building corners and perimeters - no blind spots
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- PoE+ (802.3at) switches and injectors or a 12 VDC PSU
- Hikvision wall, pole and junction-box brackets for this housing (see datasheet)
What's in the Box
- 1 × Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE
- 1 × drill template and fixing screws (where supplied)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2CD6D44G1H-IZS 4x 4MP 2.8-12mm 30m IR 4-Directional Multisensor Network Camera WHITE
Specifications as published by Hikvision (22-10-2026) for DS-2CD6D44G1H-IZS(2.8-12MM). Where Hikvision lists variants (e.g. -2U, -S), the values for this model apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2CD6D44G1H-IZS(2.8-12MM) |
| MPN | DS-2CD6D44G1H-IZS(2.8-12MM) |
| EAN | 6942160443614 |
| Brand | Hikvision |
| Hikvision product name | 4-Directional Multisensor Network Camera |
| Product Type | IP Multisensor Camera |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -180° to 180°,tilt: 0° to 135°,rotate: 0° to 355° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8° |
| Lens Mount | Ø14 |
| Focus | Semi-auto,Manual |
| Aperture | F1.6 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 25 fps (2688 × 1520), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection,object removal detection,scene change detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| General | |
| Power | 12 VDC ± 20%, 1.67 A, max. 20 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.41 A, max. 23.4 W |
| Dimension | Ø290 mm × 148 mm (Ø11.42" × 5.8") |
| Package Dimension | 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
| Weight | Approx. 4.7 kg (10.3 lb.) |
| With Package Weight | Approx. 7.7 kg (16.8 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | flash log,password protection,one-key reset |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
Frequently Asked Questions
What lens does the Hikvision DS-2CD6D44G1H-IZS have?
2.8 to 12 mm motorised varifocal, horizontal field of view 102.4° to 31.2°.
What is the night-vision range?
30 m IR.
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range.
How is it powered?
12 VDC ± 20%, 1.67 A, max. 20 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.41 A, max. 23.4 W.
Is it suitable for outdoor use?
Yes — IP67 and IK10 vandal-resistant.
Does it record locally?
Yes — microSD card up to 1 TB, plus NAS and NVR recording.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
