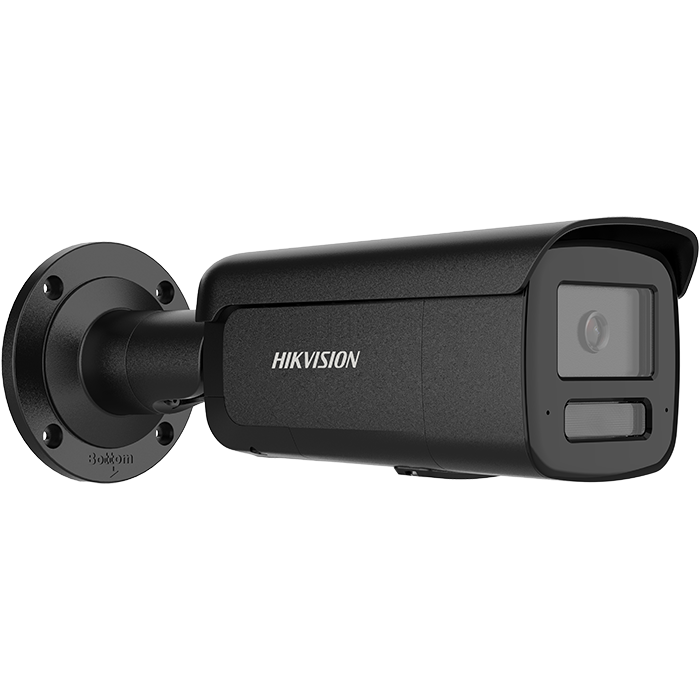

Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP G3 Hybrid 2.8mm 109° Bullet IP Camera with Mic, Spk, A&A I/O, BLACK

Overview

The Hikvision DS-2CD2T87G3-LIS2UY/SL(2.8mm)/BLACK is the 8 MP (4K) G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 fixed T-mount bullet IP camera in black finish with a 2.8 mm F1.0 lens. The 1/1.8" Progressive Scan CMOS sensor delivers 3840 × 2160 4K imaging at 50 Hz: 25 fps; 60 Hz: 30 fps (at 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720), with minimum colour illumination of 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light. Hikvision's F1.0 super-aperture collects significantly more light than a standard F1.6 lens, while HikAI-ISP applies advanced noise reduction so the camera delivers usable colour images even at very low light levels — and the 4K sensor preserves fine detail for forensic-grade evidence frames at long perimeter distances.

Smart HybridSmart Hybrid Light Light combines white-light LEDs and 850 nm infrared LEDs with up to 60 m effective range and 3 supplemental lighting modes (Smart HybridSmart Hybrid Light / IR / White) — twice the range of the standard turret / mini-bullet, making the T-mount the right pick for long-perimeter and car-park applications. 130 dB Scene-Adaptive WDR handles high-contrast scenes — back-lit doorways, vehicle headlights, sunset car parks — with 3D DNR, BLC, HLC, defog, distortion correction, EIS image stabilisation and 4 programmable polygon privacy masks.

AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics filter human and vehicle classifications on Line Crossing, Intrusion, Region Entrance and Region Exit events — reducing false alarms from foliage, wildlife and weather by approximately 90% compared with simple motion detection. Face Capture, scene-change detection, video-tampering and motion exception events are also supported on-camera. Multi-codec output (H.265+ / H.264+ / H.265 / H.264 / MJPEG) up to 16 Mbps with main stream + sub-stream + third stream gives plenty of headroom for 4K bandwidth requirements while keeping recording storage manageable. ONVIF Profile S/G/T, ISAPI, SDK and ISUP provide third-party VMS / NVR integration; iVMS-4200 desktop, Hik-Connect mobile and Hik-Central enterprise are fully supported.

The /SL variant is the fully-featured deterrent model — built-in 2 W speaker (max. 120 dB SPL @ 10 cm, louder than turret /SL siblings), 1 line in + 1 line out audio terminal blocks (3.3 Vpp, non-equilibrium), 2 alarm inputs + 2 alarm outputs (max. 24 VDC/VAC, 1 A each — twice the I/O of fixed-turret /SL), an active white-light strobe and audio-alarm linkage actions. When AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide detects a person or vehicle crossing a tripwire or entering an intrusion zone, the camera triggers an audible warning + flashing strobe to deter intruders in real time, alongside the standard email/FTP/NAS/SD recording linkages. IEEE 802.3at Class 4 (max. 18 W) carries video, audio, alarm I/O, speaker and strobe over a single Cat-5e/6 run.

Built on a rectangular all-metal T-mount bullet chassis (286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6"), Approx. 1250 g (2.8 lb.)) the camera is IP67 ingress-protected and NEMA 4X moderate-level anti-corrosion — suitable for coastal areas about 2 km from coastlines and acid-rain affected sites. Operating range is -30 °C to 60 °C with humidity ≤ 95% non-condensing. Storage is on-board via microSD / microSDHC / microSDXC up to 512 GB with Auto Network Replenishment (ANR) that fills VMS recording gaps from the local card during network outages.

Key Features

• 8 MP (4K) resolution at 3840 × 2160 on 1/1.8" Progressive Scan CMOS
• Hikvision ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — 24/7 full-colour 4K imaging via F1.0 super-aperture lens
• 2.8 mm fixed F1.0 lens — 108.8° H FoV / 56.4° V FoV / 134.3° diagonal
• DORI D: 89 m, O: 35 m, R: 17 m, I: 8 m at 2.8 mm (4K sensor extends DORI vs 4 MP T-mount siblings)
• Smart HybridSmart Hybrid Light Light up to 60 m — IR (850 nm) + White Light, 3 supplemental modes (long-perimeter optimised)
• HikAI-ISP for excellent low-light noise reduction; 130 dB Scene-Adaptive WDR
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification (Line crossing, Intrusion, Region entrance/exiting)
• Face Capture (deep-learning), Scene Change Detection, Motion / Tampering / Exception events
• Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 16 Mbps
• Built-in arrayed dual-microphone + 2 W speaker (max. 120 dB SPL @ 10 cm) — louder than turret /SL
• Line in + line out audio terminal blocks (3.3 Vpp); 2 alarm in + 2 alarm out (max. 24 VDC/VAC, 1 A) — twice the I/O of turret /SL
• Active white-light strobe + audio alarm linkage; AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-triggered intruder deterrent
• 1 × RJ45 10/100 Mbps Ethernet; PoE IEEE 802.3at Class 4 (max. 18 W)
• microSD up to 512 GB on-board with Auto Network Replenishment (ANR); NAS via NFS / SMB / CIFS
• ONVIF Profile S/G/T + ISAPI + SDK + ISUP for third-party VMS / NVR integration
• iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise; plug-in-free web browser
• Rectangular T-mount bullet, metal chassis; IP67 ingress; NEMA 4X moderate anti-corrosion
• -30 °C to 60 °C operating range; humidity ≤ 95% non-condensing

Typical Applications

• Long-perimeter 4K surveillance — agricultural sites, depots, factory boundaries, where high-pixel-count meets 60m night range
• Car parks and loading bays — full-colour 24/7 4K imaging at distance with vehicle classification
• Commercial yards and warehousing — bullet form factor handles overhead-mount across wide spans
• Large-area covering with 4K digital-zoom evidence — single 8 MP T-mount replaces 2 × 4 MP cameras
• High-risk perimeters needing audible + visible deterrence on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events
• Sites needing 2+2 alarm I/O for external siren / strobe / panic-button integration

Compatible Hikvision Devices

• Hikvision NVRs — DS-7600 / 7700 / 9600 series (verify AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide + 4K channel allocation per model)
• Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP for single-cable installs
• iVMS-4200 desktop client (Windows / macOS)
• Hik-Connect mobile app (iOS / Android) for remote view and notifications
• Hik-Central enterprise VMS / Hik-Central Professional
• ONVIF Profile S/G/T compatible third-party VMS / NVR systems
• Storage: microSD up to 512 GB on-board, plus NAS via NFS / SMB / CIFS

Optional Accessories

• DS-1275ZJ-SUS — pendant / wall mount adapter
• DS-1276ZJ-SUS — vertical pole mount adapter
• DS-1280ZJ-XS — junction box for cable management
• DS-1273ZJ-130 — corner mount bracket

What's in the Box

• 1 × Hikvision DS-2CD2T87G3-LIS2UY/SL(2.8mm)/BLACK 8 MP (4K) T-mount bullet IP camera (Black, 2.8 mm)
• 1 × mounting template + screw pack
• 1 × quick start guide + drill template
• 1 × waterproof RJ45 connector
