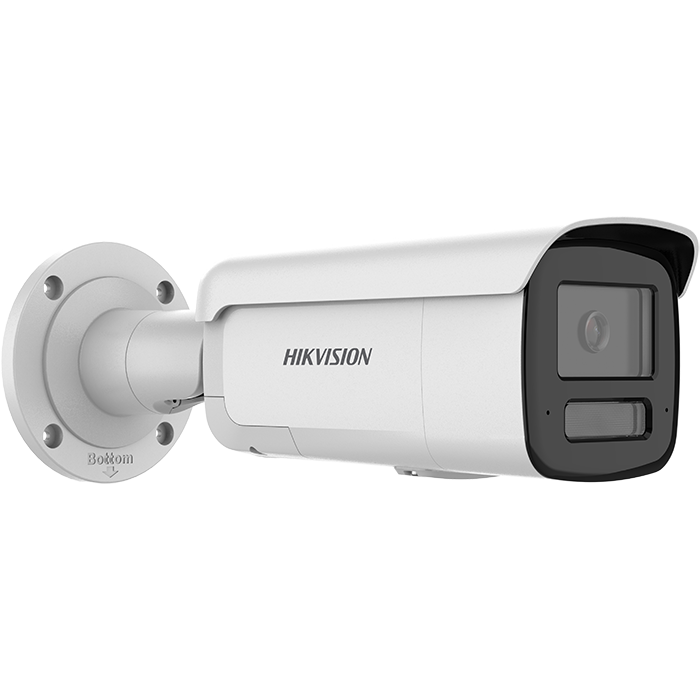

Hikvision DS-2CD2T86G2H-4I 8MP 4K 4mm 80m IR AcuSense Darkfighter Fixed Bullet Network Camera WHITE
Hikvision DS-2CD2T86G2H-4I 8MP 4K 4mm 80m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Darkfighter Fixed Bullet Network Camera WHITE
4mm 83° Field of View Fixed Lens
The Hikvision DS-2CD2T86G2H-4I is a professional 8MP bullet IP camera designed for high-performance outdoor and indoor surveillance. Equipped with DarkFighter technology, it delivers exceptional low-light imaging, capturing clear, detailed color video even in near darkness. The integrated AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI enables accurate human and vehicle detection, reducing false alarms and improving monitoring efficiency.
Ideal for commercial sites, warehouses, retail premises, and perimeter security applications.
-
4K 8MP resolution for sharp, detailed video
-
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI technology with human and vehicle classification
-
DarkFighter low-light performance for clear colour images in near-darkness
-
Up to 80 m infrared night vision with Smart IR
-
120 dB true WDR for balanced images in challenging lighting
-
Efficient H.265+ video compression to reduce storage and bandwidth usage
-
Weatherproof IP67 metal housing for outdoor and indoor installation
-
Supports PoE (802.3af) and 12 VDC for flexible installation
Ideal for CCTV installers and security professionals across the UK, this Hikvision Bullet camera offers dependable 24/7 video surveillance with smart analytics and robust outdoor protection.
For bracket options available, see accessories tab below.
| Specification Category | Technical Details |
|---|---|
| Product Model | DS-2CD2T86G2H-4I |
| Camera Type | Fixed bullet IP network camera |
| Image Sensor | 1/1.8 inch progressive scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Resolution Class | 8 megapixel (4K) |
| Minimum Illumination | Color: 0.005 Lux @ F1.6 (AGC on); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day / Night Function | True day/night with IR cut filter |
| Lens Type | Fixed focal lens |
| Lens Focal Length | 2.8 mm / 4 mm / 6 mm options |
| Angle of View | Horizontal approx. 103° (2.8 mm), 83° (4 mm), 53° (6 mm) |
| Infrared Illumination | Built-in IR LEDs |
| IR Distance | Up to 80 m |
| IR Wavelength | 850 nm |
| Smart IR | Supported |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Frame Rate | Up to 30 fps at 3840 × 2160 |
| Main Stream | 3840 × 2160 at up to 30 fps |
| Sub Stream | 640 × 480 at up to 30 fps |
| Third Stream | Supported |
| Wide Dynamic Range | 120 dB true WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Smart Analytics | AcuSense AI with human and vehicle classification |
| Motion Detection | Motion Detection 2.0 |
| Smart Events | Line crossing, intrusion detection |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS, RTP, RTSP, NTP |
| ONVIF Support | Profiles S, G, and T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Power Consumption | Max. 12 W |
| Operating Temperature | −30 °C to +60 °C |
| Operating Humidity | Up to 95% non-condensing |
| Ingress Protection | IP67 weatherproof |
| Housing Material | Metal |
| Colour | Black |
| Dimensions | Approx. 247 × 90 × 90 mm |
| Weight | Approx. 1.2 kg |
| Installation | Wall or ceiling mount |
| Application | Outdoor and indoor professional surveillance |
