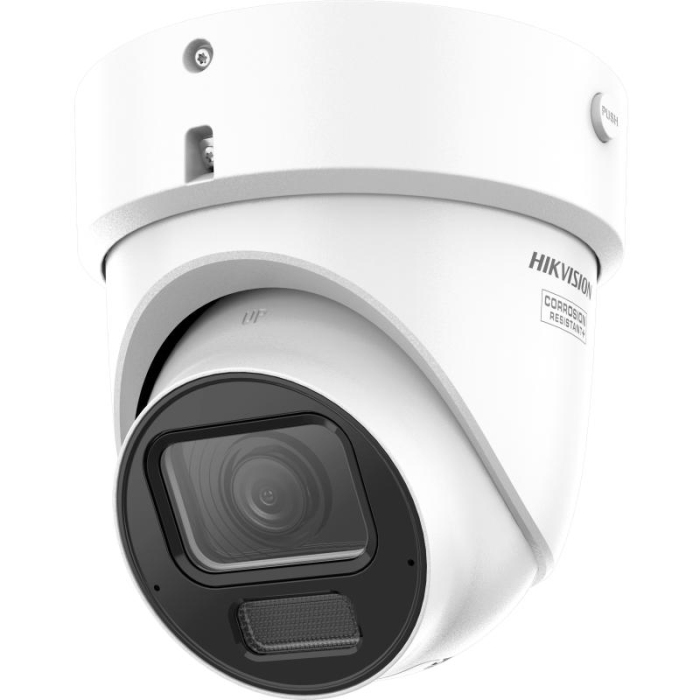

Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSense DarkFighter Varifocal Turret Network Camera WHITE
The Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DarkFighter Varifocal Turret Network Camera WHITE is an 8MP turret IP camera with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / DarkFighter, 2.8 to 12 mm motorised varifocal lens and 40 m IR night vision. Hikvision model name: 8MP Powered by Darkfighter Motorized Varifocal Turret Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 8MP (3840 × 2160) resolution, 1/1.8" Progressive Scan CMOS sensor
- Motorised varifocal lens - zoom and focus remotely for easy installation
- Waterproof cable-socket design for quick, reliable installation
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Anti-corrosion design (NEMA 4X) for harsh and coastal environments
- IP67 weatherproof and IK10 vandal-resistant
- 120 dB WDR for clear images against strong backlight
- 2.8 to 12 mm motorised varifocal lens, 112.3° to 41.2° horizontal field of view
- Up to 40 m IR night vision
- MicroSD slot up to 512 GB
- Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DarkFighter Varifocal Turret Network Camera WHITE — IP Surveillance Camera
8MP turret IP camera with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / DarkFighter, 2.8 to 12 mm motorised varifocal lens and 40 m IR night vision. Hikvision: 8MP Powered by Darkfighter Motorized Varifocal Turret Network Camera.
Overview
The Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DarkFighter Varifocal Turret Network Camera WHITE is an 8MP turret IP camera with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / DarkFighter, 2.8 to 12 mm motorised varifocal lens and 40 m IR night vision. The motorised 2.8 to 12 mm varifocal lens is zoomed and focused remotely, so the field of view can be set from the recorder or app. It records colour down to 0.0008 lux and 0 lux with IR. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. Powered by DarkFighter, it keeps a clean, bright picture in very low light. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 8MP (3840 × 2160) resolution, 1/1.8" Progressive Scan CMOS sensor
- Motorised varifocal lens - zoom and focus remotely for easy installation
- Waterproof cable-socket design for quick, reliable installation
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Anti-corrosion design (NEMA 4X) for harsh and coastal environments
- IP67 weatherproof and IK10 vandal-resistant
- 120 dB WDR for clear images against strong backlight
- 2.8 to 12 mm motorised varifocal lens, 112.3° to 41.2° horizontal field of view
- Up to 40 m IR night vision
- MicroSD slot up to 512 GB
- Alarm I/O: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A); audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Homes, shops and offices - discreet eyeball housing, easy to aim
- Entrances, car parks and yards
- Coastal, marine and industrial sites - NEMA 4X anti-corrosion
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- PoE switches and injectors or a 12 VDC PSU
- Hikvision wall, pole and junction-box brackets for this housing (see datasheet)
What's in the Box
- 1 × Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DarkFighter Varifocal Turret Network Camera WHITE
- 1 × drill template and fixing screws (where supplied)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSense DarkFighter Varifocal Turret Network Camera WHITE
Specifications as published by Hikvision (22-10-2026) for DS-2CD2H86G2H-IZSY(2.8-12mm)(eF). Where Hikvision lists variants (e.g. -2U, -S), the values for this model apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) |
| MPN | DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) |
| EAN | 6936422162085 |
| Brand | Hikvision |
| Hikvision product name | 8MP Powered by Darkfighter Motorized Varifocal Turret Network Camera |
| Product Type | IP Surveillance Camera |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Lens Mount | Integrated |
| Aperture | Max. F1.2 |
| Depth of Field | 1 m to ∞ |
| Pixel Density | |
| DORI | Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+,, Sub-stream: H.265/H.264/MJPEG,, Third stream: H.265/H.264,, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Face Capture | Yes |
| General | |
| Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W,2-core terminal block,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.95 W |
| Material | Base: Metal, cover: Metal |
| Dimension | Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6") |
| Package Dimension | 170 mm × 170 mm × 225 mm (6.7" × 6.7" × 8.9") |
| Weight | Approx. 1230 g (2.7 lb.) |
| With Package Weight | Approx. 1490 g (3.3 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat,mirror,password reset via email,pixel counter,anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006,NEMA 4X (NEMA 250-2018) |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
Frequently Asked Questions
What lens does the Hikvision DS-2CD2H86G2H-IZSY have?
2.8 to 12 mm motorised varifocal, horizontal field of view 112.3° to 41.2°.
What is the night-vision range?
40 m IR.
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles, so line-crossing and intrusion alarms ignore animals, leaves and rain.
How is it powered?
12 VDC ± 25%, 0.9 A, max. 10.8 W,2-core terminal block,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.95 W.
Is it suitable for outdoor use?
Yes — IP67 and IK10 vandal-resistant, with NEMA 4X anti-corrosion.
Does it record locally?
Yes — microSD card up to 512 GB, plus NAS and NVR recording.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2CD2H86G2H-IZSY 8MP 2.8-12mm 40m IR AcuSense DarkFighter Varifocal Turret Network Camera WHITE
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2CD2H86G2H-IZSY Data Sheet (official PDF) | Download | |
| Hikvision DS-2CD2H86G2H-IZSY Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2CD2H86G2H-IZSY User Manual (official PDF) | Download | |
| Hikvision DS-2CD2H86G2H-IZSY product page | Web | View on hikvision.com |
| Browse all 8MP Hikvision IP cameras | Web | View IP cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
