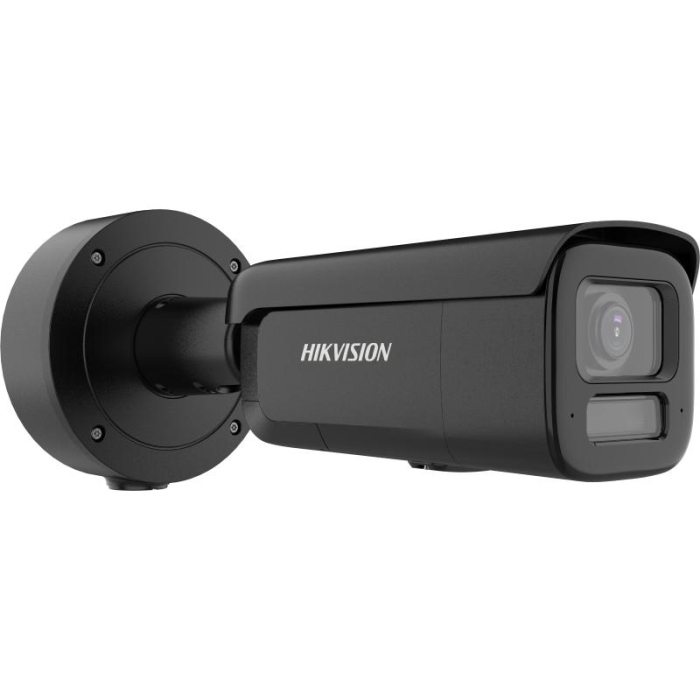

Hikvision DS-2CD2687G3-LIZSY 8MP G3 Hybrid Motorized VF Bullet IP Camera with A&A I/O, in BLACK
Hikvision DS-2CD2687G3-LIZSY — 8 MP Motorised-VF Bullet IP Camera (Black)
8 MP G3 4K motorised varifocal bullet in BLACK with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, Smart HybridSmart Hybrid Light Light to 60 m, IP67. 2.8-12 mm motorised zoom + alarm I/O. Same-day dispatch, Leicester.
8 MP 4K G3 motorised-VF bullet (Black). 2.8-12 mm zoom. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide + alarm I/O. IP67/IK10. PoE Class 4.
- 8 MP 4K
- 2.8-12 mm motorised zoom
- Hybrid Light to 60 m
- 1 alarm I/O
- Black
Hikvision DS-2CD2687G3-LIZSY(2.8-12mm)(BLACK) — 8 MP / 4K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Motorised-VF Bullet (Black)
Hikvision G3 8 MP / 4K motorised-vari-focal bullet in matte black — 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 colour, Smart HybridSmart Hybrid Light Light to 60 m, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, HikAI-ISP, 130 dB WDR, IP67 / IK10 / NEMA 4X metal chassis.
Overview
Matte black finish of the 8 MP / 4K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light motorised-VF bullet — chosen for installations where the camera should disappear into dark soffits, modern facades or industrial sites. The 1/1.8" Progressive Scan CMOS captures 3840 × 2160 / 4K at 30 fps (60 Hz) / 25 fps (50 Hz) with 0.0005 Lux @ F1.2.
The motorised 2.8-12 mm F1.2 vari-focal lens covers wide FoV 112.3° to tele 41.2° — DORI Detect 89.2 m (wide) to 220.0 m (tele). Smart HybridSmart Hybrid Light Light combines IR (850 nm) and white-light up to 60 m, with 3 lighting modes. Scene-adaptive 130 dB WDR. HikAI-ISP delivers excellent low-light noise reduction.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification reduces false alarms by ~90% on perimeter events. Face Capture, scene-change, video-tampering, motion exception events. Multi-codec H.265+/H.264+/H.265/H.264/MJPEG up to 16 Mbps. ONVIF Profile S/G/T + ISAPI/SDK/ISUP. microSD up to 512 GB on-board with ANR. iVMS-4200 / Hik-Connect / Hik-Central.
Audio: 1 × line in + 1 × line out (3.3 Vpp, terminal block). Alarm: 1 × 1 (max 24 VDC/24 VAC, 1 A). PoE 802.3at Class 4 (max 18 W) or 12 VDC 1.21 A. All-metal chassis. IP67 + IK10 + NEMA 4X moderate. Ø 140 mm × 333.8 mm, ~1520 g. -30 °C to 60 °C.
Key Features
- 8 MP / 4K resolution at 3840 × 2160 on 1/1.8-inch CMOS
- Matte black finish — discreet in dark soffits / modern facades
- 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2
- Motorised 2.8-12 mm F1.2 vari-focal — DORI 89.2 m (wide) to 220.0 m (tele)
- Smart HybridSmart Hybrid Light Light up to 60 m, 3 lighting modes
- HikAI-ISP, 130 dB scene-adaptive WDR
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
- Multi-codec H.265+ up to 16 Mbps
- Line in/out audio + 1×1 alarm I/O
- PoE 802.3at Class 4 (max 18 W)
- microSD up to 512 GB; ANR
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- All-metal IP67 + IK10 + NEMA 4X moderate chassis
Typical Applications
- Designer interiors and modern building facades where black blends in
- Industrial / vandal-prone sites needing 4K + IK10 + active deterrent-ready alarm interface
- Long-distance perimeter at 4K — DORI Detect to 220 m at tele
- Car parks, forecourts at 4K with 24/7 colour
- Coastal / acid-rain sites with NEMA 4X moderate anti-corrosion
Compatible Hikvision Devices
- Hikvision NVRs with 4K AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel support — DS-7600 / 7700 / 9600 series
- Hikvision PoE switches — Class 4 capable (DS-3E1xxxP / DS-3E2xxxP)
- iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
- ONVIF Profile S/G/T compatible third-party VMS / NVR systems
Optional Accessories
- DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
- DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
What's in the Box
- 1 × Hikvision DS-2CD2687G3-LIZSY(2.8-12mm)(BLACK) 8 MP / 4K motorised-VF bullet (Black)
- 1 × integrated bracket + mounting template + screw pack
- 1 × audio + alarm terminal block wiring connector
- 1 × quick start guide + drill template
📄 Download: Hikvision DS-2CD2687G3-LIZSY Datasheet (PDF) — full technical specification.
Detailed Specifications — Hikvision DS-2CD2687G3-LIZSY(2.8-12mm)(BLACK)
Full technical specification taken from the official Hikvision DS-2CD2687G3-LIZSY datasheet.
| Camera | |
|---|---|
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 (8 MP / 4K) |
| Min. Illumination | 0.0005 Lux @ F1.2; 0 Lux with light |
| Lens | |
| Lens Type | Varifocal motorised lens, 2.8 to 12 mm |
| Aperture | F1.2 |
| FOV | H 112.3°-41.2°, V 58.1°-23.1°, D 137.4°-47.3° |
| DORI (Wide) | D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m |
| DORI (Tele) | D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Illuminator | |
| Supplement Light | White Light + IR (Smart Hybrid Light), up to 60 m, 3 modes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 30/25 fps @ 4K / 3200 × 1800 / 2688 × 1520 / 1080p / 720p |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 130 dB scene-adaptive WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, EIS, Defog |
| Audio | |
| Audio Input | 1 × line in (3.3 Vpp, terminal block) |
| Audio Output | 1 × line out (3.3 Vpp, terminal block, 100 Ω) |
| Built-in Mic / Speaker | No (LIZSY); /SL adds arrayed dual-mic + 2 W speaker |
| Alarm | |
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 24 VDC/24 VAC, 1 A) |
| Network | |
| API | ONVIF (S, G, T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Security | HTTPS, 802.1X, TLS 1.1/1.2/1.3 |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance/exit |
| Face Capture | Yes (deep-learning) |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| On-board Storage | microSD up to 512 GB |
| General | |
| Power | 12 VDC ± 25%, 1.21 A, max. 14.5 W |
| PoE | IEEE 802.3at Class 4 (max 18 W) |
| Material | All metal — cover + body + bracket |
| Dimensions | Ø 140 mm × 333.8 mm |
| Weight | ~1520 g |
| Operating Conditions | -30 °C to 60 °C; humidity ≤ 95% non-condensing |
| Protection | IP67 + IK10 |
| Anti-Corrosion | NEMA 4X moderate |
| Finish | Black |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2687G3-LIZSY record?
8MP (4K, 3840 × 2160).
What lens does it have?
A motorised varifocal 2.8–12mm lens with remote zoom and focus.
Does it see in colour at night?
Yes — ColorVu 3.0 gives 24/7 colour down to 0.0005 Lux, backed by Smart Hybrid Light (white + IR) up to 60m.
Does it have audio and alarm connections?
Yes — it has audio and alarm input/output (line in/out) to connect external microphones, speakers or alarm devices. It does not have a built-in speaker/strobe deterrent — for that, choose the /SL model.
What colour is this model?
Matte black, for a discreet finish.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics with HikAI-ISP and 130dB WDR classify people and vehicles.
How tough is it?
IP67 weatherproof, IK10 impact-rated and NEMA 4X, in a metal housing.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
