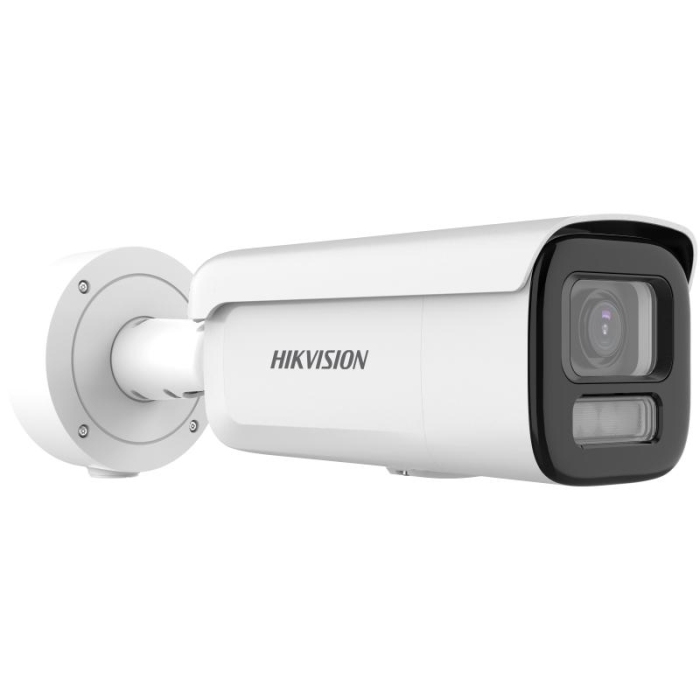

Hikvision DS-2CD2687G3-LIZSY 8MP G3 Hybrid Motorized VF Bullet IP Camera with A&A I/O, in WHITE

Overview

The Hikvision DS-2CD2687G3-LIZSY(2.8-12mm) is the 8 MP / 4K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light motorised-VF bullet in the G3 range, in white. Combining a 1/1.8" Progressive Scan CMOS, F1.2 motorised 2.8-12 mm lens, and Hikvision's HikAI-ISP, the camera delivers 3840 × 2160 / 4K imaging at 30 fps (60 Hz) / 25 fps (50 Hz) with 0.0005 Lux @ F1.2 minimum colour illumination.

The motorised 2.8-12 mm F1.2 lens covers wide FoV 112.3° (DORI Detect 89.2 m / Identify 8.9 m) to tele FoV 41.2° (DORI Detect 220.0 m / Identify 22.0 m). Smart HybridSmart Hybrid Light Light combines IR (850 nm) and white-light up to 60 m, with 3 lighting modes. Scene-adaptive 130 dB WDR.

AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification reduces false alarms by ~90% on perimeter events. Face Capture (deep-learning), scene-change, video-tampering and motion exception events. Multi-codec H.265+/H.264+/H.265/H.264/MJPEG up to 16 Mbps with main + sub + third stream — higher bit-rate ceiling than the 4 MP sibling reflects the 4K-resolution data flow.

Audio interface provides 1 × line in + 1 × line out (3.3 Vpp, terminal block). Alarm interface: 1 × input + 1 × output (max 24 VDC/24 VAC, 1 A). Power: PoE 802.3at Class 4 (max 18 W) or 12 VDC 1.21 A (max 14.5 W). All-metal chassis (front cover + body + bracket all metal). IP67 + IK10 + NEMA 4X moderate anti-corrosion. Ø 140 mm × 333.8 mm, ~1520 g. -30 °C to 60 °C.

Key Features

• 8 MP / 4K resolution at 3840 × 2160 on 1/1.8-inch Progressive Scan CMOS
• 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2
• Motorised 2.8-12 mm F1.2 vari-focal lens — DORI 89.2 m (wide) to 220.0 m (tele)
• Smart HybridSmart Hybrid Light Light up to 60 m — IR + white, 3 lighting modes
• HikAI-ISP, scene-adaptive 130 dB WDR, 3D DNR, BLC, HLC, Defog, EIS
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
• Face Capture (deep-learning), Scene Change Detection, perimeter events
• Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 16 Mbps
• Line in + line out audio (3.3 Vpp, terminal block)
• 1 × 1 alarm I/O (max 24 VDC/24 VAC, 1 A)
• PoE 802.3at Class 4 (max 18 W) or 12 VDC 1.21 A (max 14.5 W)
• microSD up to 512 GB; ANR; NAS storage
• ONVIF Profile S/G/T + ISAPI + SDK + ISUP
• All-metal chassis; IP67 + IK10 + NEMA 4X moderate; ~1520 g

Typical Applications

• Long-distance perimeter — DORI Detect to 220 m at tele zoom
• 4K forensic-grade surveillance — banking, transport, healthcare, education
• Vari-focal flexibility — one camera replaces 2-3 fixed-lens variants
• Car parks, forecourts, loading bays at 4K with 24/7 colour
• Coastal / acid-rain sites needing NEMA 4X moderate anti-corrosion

Compatible Hikvision Devices

• Hikvision NVRs with 4K AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel support — DS-7600 / 7700 / 9600 series
• Hikvision PoE switches — Class 4 capable switch required (DS-3E1xxxP / DS-3E2xxxP)
• iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
• ONVIF Profile S/G/T compatible third-party VMS / NVR systems
• Storage: microSD up to 512 GB on-board, plus NAS via NFS / SMB / CIFS

Optional Accessories

• DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
• DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
• DS-2251ZJ — additional mounting options

What's in the Box

• 1 × Hikvision DS-2CD2687G3-LIZSY(2.8-12mm) 8 MP / 4K motorised-VF bullet (White)
• 1 × integrated bracket + mounting template + screw pack
• 1 × audio + alarm terminal block wiring connector
• 1 × quick start guide + drill template
• 1 × waterproof RJ45 connector
