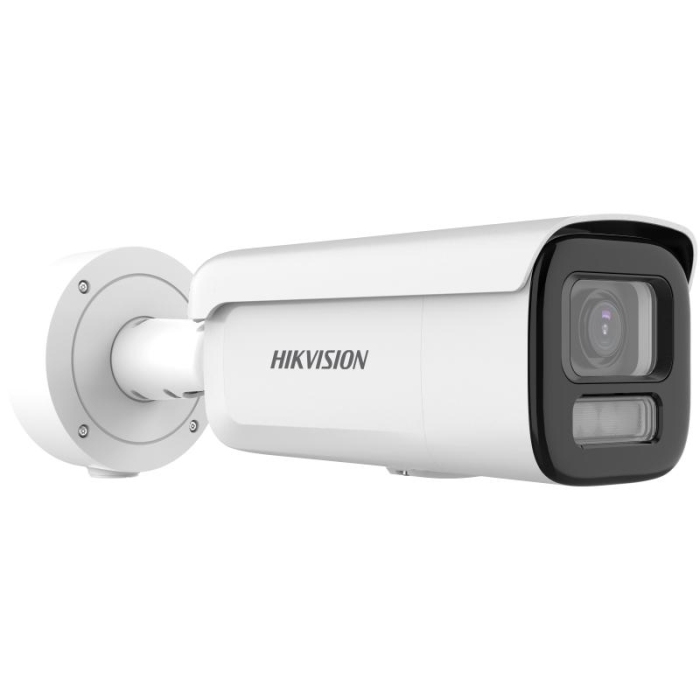

Hikvision DS-2CD2687G3-LIZS2UY/SL 8MP G3 Hybrid Motorized VF Bullet IP Camera with Mic, Spk, & A&A I/O, in WHITE
Hikvision DS-2CD2687G3-LIZS2UY/SL — 8 MP Motorised-VF Bullet with Speaker, Strobe, A&A I/O (White)
8 MP G3 4K motorised varifocal bullet with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, Hybrid Light to 60 m. Mic + 2 W speaker + strobe + 2 alarm I/O. Same-day dispatch, Leicester.
8 MP 4K G3 motorised-VF bullet (/SL White) — 2.8-12 mm zoom. Mic + 2 W speaker + strobe + 2 alarm I/O. PoE Class 4.
- 8 MP 4K
- 2.8-12 mm motorised zoom
- Mic + 2 W speaker (120 dB) + strobe
- 2 alarm in/out
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide + IP67 + IK10
Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) — 8 MP / 4K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 /SL Active-Deterrent Motorised-VF Bullet (White)
Hikvision G3 8 MP / 4K motorised-VF bullet with active deterrent — 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, Smart HybridSmart Hybrid Light Light to 60 m, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, arrayed dual-mic + 2 W speaker (120 dB SPL), white-light strobe, 2×2 alarm I/O, IP67 + IK10 + NEMA 4X.
Overview
The Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) is the flagship active-deterrent /SL variant of the 8 MP / 4K G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light motorised-VF bullet, in white. Combining 4K resolution, motorised 2.8-12 mm F1.2 vari-focal optics, ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 24/7 colour and a full active-deterrent stack (arrayed dual-mic + 2 W speaker + white-light strobe + 2×2 alarm I/O), this is the most capable single-channel camera in the G3 motorised-VF range.
The 1/1.8" Progressive Scan CMOS captures 3840 × 2160 at 30 fps (60 Hz) with 0.0005 Lux @ F1.2 minimum colour illumination. The motorised 2.8-12 mm F1.2 lens covers wide FoV 112.3° (DORI Detect 89.2 m) to tele FoV 41.2° (DORI Detect 220.0 m). Smart HybridSmart Hybrid Light Light up to 60 m, 3 lighting modes. HikAI-ISP. Scene-adaptive 130 dB WDR.
Active-deterrent stack: built-in arrayed dual-microphone for high-quality on-camera audio capture; built-in 2 W speaker (120 dB SPL @ 10 cm) for Smart PA two-way talk and pre-recorded audio warnings; white-light strobe flashes on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events to deter intruders. Audio interface: 1 × line in + 1 × line out (3.3 Vpp, terminal block). Alarm interface: 2 × input + 2 × output (max 24 VDC/24 VAC, 1 A) — multiple external sensors and external relays.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification reduces false alarms by ~90%. Face Capture, scene-change, video-tampering, motion exception events. Multi-codec H.265+/H.264+/H.265/H.264/MJPEG up to 16 Mbps. ONVIF Profile S/G/T + ISAPI/SDK/ISUP. microSD up to 512 GB with ANR. PoE 802.3at Class 4 (max 18 W). All-metal IP67 + IK10 + NEMA 4X moderate. Ø 140 mm × 333.8 mm. -30 °C to 60 °C.
Key Features
- 8 MP / 4K at 3840 × 2160 on 1/1.8-inch CMOS
- 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2
- Motorised 2.8-12 mm F1.2 vari-focal — DORI 89.2 m (wide) to 220.0 m (tele)
- Smart HybridSmart Hybrid Light Light up to 60 m — IR + white, 3 lighting modes
- HikAI-ISP, 130 dB scene-adaptive WDR, 3D DNR, BLC, HLC, Defog, EIS
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
- Built-in arrayed dual-microphone for real-time high-quality audio
- Built-in 2 W speaker (120 dB SPL @ 10 cm) — Smart PA + audio deterrent
- White-light strobe deterrent (event-triggered)
- Line in + line out audio (3.3 Vpp, terminal block)
- 2 × input + 2 × output alarm I/O
- Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 16 Mbps
- PoE 802.3at Class 4 (max 18 W)
- microSD up to 512 GB; ANR
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- All-metal IP67 + IK10 + NEMA 4X moderate chassis
Typical Applications
- Highest-spec single-channel active-deterrent perimeter — banking, transport, secure sites
- 4K forensic-grade surveillance with two-way talk + strobe deterrent
- Long-distance perimeter at 4K — DORI Detect 220 m at tele zoom
- Sites requiring multiple external sensors (2 alarm inputs) and external relays (2 outputs)
- Industrial / vandal-prone sites needing IK10 + 4K + active deterrent in one unit
Compatible Hikvision Devices
- Hikvision NVRs with 4K AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel support — DS-7600 / 7700 / 9600 series
- Hikvision PoE switches — Class 4 capable (DS-3E1xxxP / DS-3E2xxxP)
- iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
- ONVIF Profile S/G/T compatible third-party VMS / NVR systems
Optional Accessories
- DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
- DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
What's in the Box
- 1 × Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) 8 MP / 4K /SL motorised-VF bullet (White)
- 1 × integrated bracket + mounting template + screw pack
- 1 × audio + alarm terminal block wiring connector
- 1 × quick start guide + drill template
📄 Download: Hikvision DS-2CD2687G3-LIZS2UY/SL Datasheet (PDF) — full technical specification.
Detailed Specifications — Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) (White)
Full technical specification taken from the official Hikvision DS-2CD2687G3-LIZS2UY/SL datasheet.
| Camera | |
|---|---|
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 (8 MP / 4K) |
| Min. Illumination | 0.0005 Lux @ F1.2; 0 Lux with light |
| Lens | |
| Lens Type | Varifocal motorised, 2.8 to 12 mm |
| Aperture | F1.2 |
| FOV | H 112.3°-41.2°, V 58.1°-23.1°, D 137.4°-47.3° |
| DORI (Wide) | D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m |
| DORI (Tele) | D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Illuminator | |
| Supplement Light | White Light + IR (Smart Hybrid Light), up to 60 m, 3 modes |
| IR Wavelength | 850 nm |
| Active Deterrent | White-light strobe (event-triggered) + 2 W audio alarm |
| Video | |
| Main Stream | 30/25 fps @ 4K / 3200 × 1800 / 2688 × 1520 / 1080p / 720p |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 130 dB scene-adaptive WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, EIS, Defog |
| Audio | |
| Audio Input | Built-in arrayed dual-mic + 1 × line in (3.3 Vpp) |
| Audio Output | 1 × line out (3.3 Vpp, 100 Ω) |
| Built-in Speaker | 2 W max, 120 dB SPL @ 10 cm |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Audio Sampling Rate | 8 / 16 / 32 / 48 kHz |
| Environment Noise Filtering | Yes |
| Alarm | |
| Alarm Input | 2 input |
| Alarm Output | 2 output (max. 24 VDC/24 VAC, 1 A) |
| Network | |
| API | ONVIF (S, G, T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Security | HTTPS, 802.1X, TLS 1.1/1.2/1.3 |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance/exit |
| Face Capture | Yes (deep-learning) |
| Linkage | FTP/NAS/SD upload; trigger speaker + strobe + recording / capture; email |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| On-board Storage | microSD up to 512 GB |
| General | |
| Power | 12 VDC ± 25%; PoE IEEE 802.3at Class 4 (max 18 W) |
| Material | All metal — cover + body + bracket |
| Dimensions | Ø 140 mm × 333.8 mm |
| Weight | ~1520 g |
| Operating Conditions | -30 °C to 60 °C; humidity ≤ 95% non-condensing |
| Protection | IP67 + IK10 |
| Anti-Corrosion | NEMA 4X moderate |
| Finish | White |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2687G3-LIZS2UY/SL record?
8MP (4K, 3840 × 2160).
What lens does it have?
A motorised varifocal 2.8–12mm lens with remote zoom and focus.
Does it see in colour at night?
Yes — ColorVu 3.0 gives 24/7 colour down to 0.0005 Lux, backed by Smart Hybrid Light (white + IR) up to 60m.
What deterrent and audio features does the /SL model add?
An arrayed dual-microphone, a built-in speaker, alarm/audio I/O and a white-light strobe — for two-way audio and active deterrence on AcuSense detection.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles.
Is it weatherproof?
Yes — IP67 weatherproof and IK10 impact-rated.
How is it powered?
Via PoE or 12V DC.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
