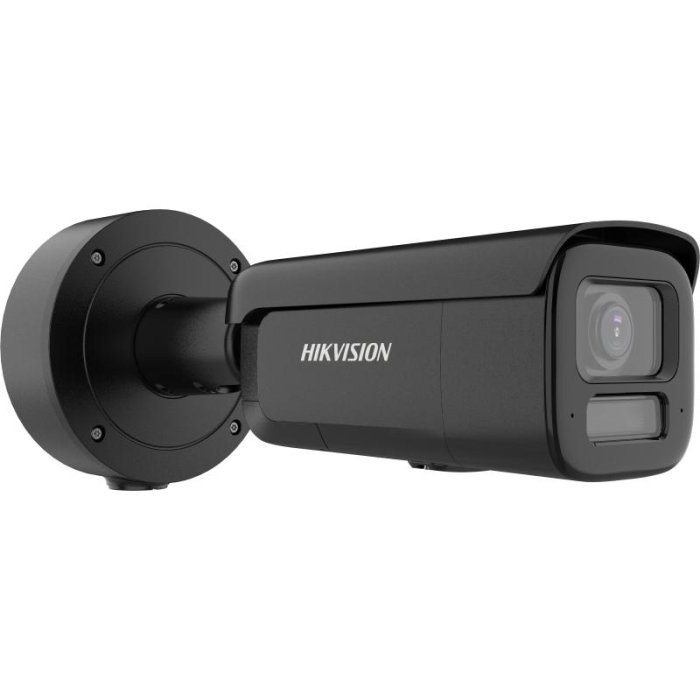

Hikvision DS-2CD2647G3-LIZSY 4MP G3 Hybrid Motorized VF Bullet IP Camera with A&A I/O, in BLACK
Hikvision DS-2CD2647G3-LIZSY — 4 MP Motorised-VF Bullet IP Camera (Black)
4 MP G3 motorised varifocal bullet IP camera in BLACK with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, Smart HybridSmart Hybrid Light Light to 60 m, IP67. 2.8-12 mm motorised zoom + alarm I/O. Same-day dispatch, Leicester.
4 MP G3 motorised-VF bullet (Black) — 2.8-12 mm zoom, 114.6° to 41.8° FoV. F1.2 + 1/1.8" CMOS. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide. 1 alarm in/out. IP67 + IK10. PoE Class 4.
- 4 MP 2688 x 1520
- 2.8-12 mm motorised zoom
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 + Hybrid Light to 60 m
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide + 1 alarm in/out
- Black; IP67 + IK10
Hikvision DS-2CD2647G3-LIZSY(2.8-12mm)(BLACK) — 4 MP ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Motorised-VF Bullet (Black)
Hikvision G3 4 MP motorised-vari-focal bullet in matte black — 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 colour imaging, Smart HybridSmart Hybrid Light Light (IR + White) to 60 m, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, HikAI-ISP, 130 dB WDR, IP67 / IK10 / NEMA 4X metal chassis.
Overview
The Hikvision DS-2CD2647G3-LIZSY(2.8-12mm)(BLACK) is the matte black finish of the 4 MP ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light motorised-VF bullet — chosen for installations where the camera should disappear into dark soffits, modern facades or industrial / vandal-prone sites. The 1/1.8" Progressive Scan CMOS captures 2688 × 1520 imaging at 30 fps (60 Hz) or 25 fps (50 Hz) with 0.0005 Lux @ F1.2 minimum colour illumination and 0 Lux performance with supplemental light.
The Smart HybridSmart Hybrid Light Light integrates IR (850 nm) and white-light supplemental illumination up to 60 m, with three lighting modes. Scene-adaptive 130 dB WDR handles high-contrast scenes. The 2.8-12 mm motorised lens covers wide FoV 114.6° to tele FoV 41.8° — DORI Detect 61.5 m to 151.7 m. Hikvision's HikAI-ISP delivers excellent low-light noise reduction.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics reduce false alarms by ~90% on Line Crossing, Intrusion, Region Entrance and Region Exit perimeter events. Face Capture, scene-change, video-tampering and motion exception events. Multi-codec H.265+/H.264+/H.265/H.264/MJPEG up to 8 Mbps with main + sub + third stream. ONVIF Profile S/G/T plus ISAPI/SDK/ISUP. iVMS-4200 / Hik-Connect / Hik-Central. microSD up to 512 GB on-board with ANR.
Audio interface provides 1 × line in + 1 × line out (3.3 Vpp, terminal block) for external mic/PA amplifier connection. Alarm interface offers 1 × 1 (max 24 VDC/24 VAC, 1 A). Power: PoE 802.3at Class 4 (max 15 W) or 12 VDC 1.08 A (max 13 W). All-metal chassis. IP67 + IK10 + NEMA 4X moderate. Ø 140 mm × 333.8 mm, 1540 g. -30 °C to 60 °C operating range.
Key Features
- 4 MP at 2688 × 1520 on 1/1.8-inch Progressive Scan CMOS
- Matte black finish — discreet in dark soffits / modern facades
- 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2
- Motorised 2.8-12 mm F1.2 vari-focal lens — DORI 61.5 m (wide) to 151.7 m (tele)
- Smart HybridSmart Hybrid Light Light up to 60 m — IR + white, 3 lighting modes
- HikAI-ISP — excellent low-light noise reduction
- Scene-adaptive 130 dB WDR, 3D DNR, BLC, HLC, Defog, Distortion Correction, EIS
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
- Face Capture (deep-learning), Scene Change Detection, perimeter events
- Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 8 Mbps
- Line in + line out audio (3.3 Vpp, terminal block)
- 1 × 1 alarm I/O (max 24 VDC/24 VAC, 1 A)
- PoE 802.3at Class 4 (max 15 W) or 12 VDC 1.08 A
- microSD up to 512 GB; ANR; NAS storage
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- All-metal chassis; IP67 + IK10 + NEMA 4X moderate; 1540 g
Typical Applications
- Designer interiors and modern building facades where black blends in
- Industrial / vandal-prone sites needing IK10 impact resistance
- Car parks, forecourts, loading bays needing flexible FoV
- Perimeter monitoring with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide + ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 24/7 colour
- Coastal / acid-rain sites needing NEMA 4X moderate anti-corrosion
Compatible Hikvision Devices
- Hikvision NVRs — DS-7600 / 7700 / 9600 series with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel allocation
- Hikvision PoE switches — Class 4 capable switch (DS-3E1xxxP / DS-3E2xxxP)
- iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
- ONVIF Profile S/G/T compatible third-party VMS / NVR systems
Optional Accessories
- DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
- DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
- DS-2251ZJ — additional mounting options
What's in the Box
- 1 × Hikvision DS-2CD2647G3-LIZSY(2.8-12mm)(BLACK) 4 MP motorised-VF bullet (Black)
- 1 × integrated bracket + mounting template + screw pack
- 1 × audio + alarm terminal block wiring connector
- 1 × quick start guide + drill template
- 1 × waterproof RJ45 connector
📄 Download: Hikvision DS-2CD2647G3-LIZSY Datasheet (PDF) — full technical specification.
Detailed Specifications — Hikvision DS-2CD2647G3-LIZSY(2.8-12mm)(BLACK)
Full technical specification taken from the official Hikvision DS-2CD2647G3-LIZSY datasheet.
| Camera | |
|---|---|
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 (4 MP) |
| Min. Illumination (Colour) | 0.0005 Lux @ (F1.2, AGC ON); 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0°-355°, Tilt 0°-90°, Rotate 0°-360° |
| Lens | |
| Lens Type | Varifocal motorised lens, 2.8 to 12 mm |
| Aperture | F1.2 |
| Focal Length & FOV | H 114.6°-41.8°, V 59.3°-23.6°, D 141.3°-48.1° |
| Depth of Field | 1 m to ∞ |
| DORI (Wide / 2.8 mm) | D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m |
| DORI (Tele / 12 mm) | D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
| Illuminator | |
| Supplement Light Type | White Light + IR (Smart Hybrid Light) |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes — 3 lighting modes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream (60 Hz) | 30 fps @ 2688 × 1520 / 1920 × 1080 / 1280 × 720 |
| Main Stream (50 Hz) | 25 fps @ 2688 × 1520 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream | 30/25 fps @ 1280 × 720 / 640 × 480 / 640 × 360 |
| Third Stream | 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 130 dB scene-adaptive WDR |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
| Audio | |
| Audio Input | 1 × line in (3.3 Vpp, terminal block, 4.7 KΩ) |
| Audio Output | 1 × line out (3.3 Vpp, terminal block, 100 Ω) |
| Built-in Microphone / Speaker | No (LIZSY variant); /SL adds arrayed dual-mic + 2 W speaker |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Audio Sampling Rate | 8 / 16 / 32 / 48 kHz |
| Alarm | |
| Alarm Input | 1 input (terminal block) |
| Alarm Output | 1 output (max. 24 VDC / 24 VAC, 1 A) |
| Network | |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 6 channels |
| Security | HTTPS, 802.1X, digest auth, IP filter, TLS 1.1/1.2/1.3 |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance/exit |
| Face Capture | Yes (deep-learning) |
| Basic Event | Motion, video tampering, exception |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive |
| On-board Storage | microSD up to 512 GB |
| General | |
| Power Supply | 12 VDC ± 25%, 1.08 A, max. 13 W |
| PoE | IEEE 802.3at Class 4 (max 15 W) |
| Material | All metal — cover + body + bracket |
| Dimensions | Ø 140 mm × 333.8 mm |
| Weight | 1540 g (3.4 lb.) |
| Operating Conditions | -30 °C to 60 °C; humidity ≤ 95% non-condensing |
| Protection | IP67 + IK10 |
| Anti-Corrosion | NEMA 4X moderate |
| Finish | Black |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2647G3-LIZSY record?
4MP (2688 × 1520).
What lens does it have?
A motorised varifocal 2.8–12mm lens with remote zoom and focus.
Does it see in colour at night?
Yes — ColorVu 3.0 gives 24/7 colour down to 0.0005 Lux, backed by Smart Hybrid Light (white + IR) up to 60m.
Does it have audio and alarm connections?
Yes — it has audio and alarm input/output (line in/out) to connect external microphones, speakers or alarm devices. It does not have a built-in speaker/strobe deterrent — for that, choose the /SL model.
What colour is this model?
Matte black, for a discreet finish.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics with HikAI-ISP and 130dB WDR classify people and vehicles.
How tough is it?
IP67 weatherproof, IK10 impact-rated and NEMA 4X, in a metal housing.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
