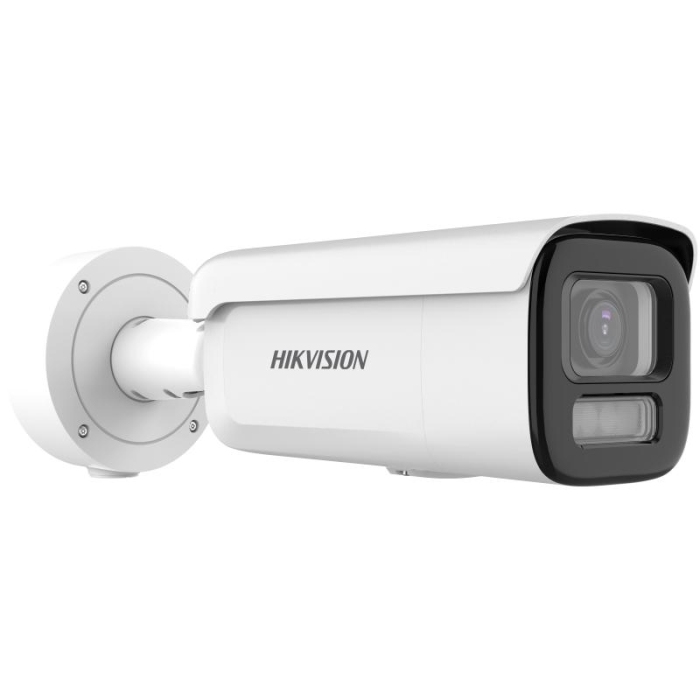

Hikvision DS-2CD2647G3-LIZSY — 4 MP Motorised-VF Bullet IP Camera (White)
4 MP G3 motorised varifocal bullet IP camera with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, Smart HybridSmart Hybrid Light Light to 60 m, IP67. 2.8-12 mm motorised zoom + alarm I/O. Same-day dispatch, Leicester.
4 MP G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 motorised varifocal bullet with 2.8-12 mm zoom — 114.6° wide to 41.8° tele FoV. F1.2 + 1/1.8" CMOS. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide. 1 alarm in/out. IP67 + IK10. PoE 802.3at Class 4.
- 4 MP (2688 x 1520) on 1/1.8" CMOS
- 2.8-12 mm motorised varifocal zoom (4.3×)
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 + Hybrid Light to 60 m
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human/vehicle
- 1 alarm in + 1 alarm out
- IP67 + IK10 + NEMA 4X
Hikvision DS-2CD2647G3-LIZSY(2.8-12mm) — 4 MP ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Motorised-VF Bullet IP Camera (White)
Hikvision G3 4 MP motorised-vari-focal bullet — 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 colour imaging, Smart HybridSmart Hybrid Light Light (IR + White) to 60 m, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human/vehicle classification, HikAI-ISP, 130 dB scene-adaptive WDR, IP67 / IK10 / NEMA 4X metal chassis.
Overview
The Hikvision DS-2CD2647G3-LIZSY(2.8-12mm) is the 4 MP ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light bullet in the G3 motorised-vari-focal range, in white. Combining a 1/1.8" Progressive Scan CMOS, F1.2 motorised 2.8-12 mm lens and Hikvision's HikAI-ISP image-signal processing pipeline, the camera delivers 2688 × 1520 4 MP imaging at 30 fps (60 Hz) or 25 fps (50 Hz) with 0.0005 Lux @ F1.2 minimum colour illumination and 0 Lux performance with supplemental light.
The Smart HybridSmart Hybrid Light Light integrates IR (850 nm) and white-light supplemental illumination up to 60 m, with three lighting modes (IR-only / white-only / smart hybridSmart Hybrid Light switching) so installers can balance unobtrusive monitoring with full-colour evidence capture. Scene-adaptive 130 dB WDR handles high-contrast scenes (back-lit doorways, sunset car parks). The 2.8-12 mm motorised lens covers wide FoV 114.6° at 2.8 mm down to tele FoV 41.8° at 12 mm — DORI Detect ranges from 61.5 m (wide) to 151.7 m (tele) for one-camera-fits-many installs.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics filter human and vehicle classifications on Line Crossing, Intrusion, Region Entrance and Region Exit perimeter events — reducing false alarms by ~90% compared with simple motion detection. Face Capture (deep-learning), scene-change detection, video-tampering and motion exception events are supported on-camera. Multi-codec output (H.265+ / H.264+ / H.265 / H.264 / MJPEG) up to 8 Mbps with main + sub + third stream gives flexibility for VMS integration. ONVIF Profile S/G/T plus ISAPI/SDK/ISUP. iVMS-4200, Hik-Connect and Hik-Central are fully supported. microSD up to 512 GB on-board with ANR.
Audio interface provides 1 × line in + 1 × line out (3.3 Vpp, terminal block, non-equilibrium) for external microphone/PA amplifier connection. Alarm interface offers 1 × input + 1 × output (max 24 VDC/24 VAC, 1 A) for door contacts, gate sensors and external relays. Power: PoE 802.3at Class 4 (max 15 W) or 12 VDC 1.08 A (max 13 W). The metal chassis (front cover, body and bracket all metal) is IP67 ingress-protected, IK10 impact-rated, and NEMA 4X moderate anti-corrosion. Ø 140 mm × 333.8 mm, 1540 g. -30 °C to 60 °C operating range.
Key Features
- 4 MP resolution at 2688 × 1520 on 1/1.8-inch Progressive Scan CMOS
- 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2 (AGC ON)
- Motorised 2.8-12 mm F1.2 vari-focal lens — install once, zoom remotely
- FoV 114.6°-41.8° H / 59.3°-23.6° V; DORI Detect 61.5 m (wide) to 151.7 m (tele)
- Smart HybridSmart Hybrid Light Light up to 60 m — IR + white, 3 lighting modes
- HikAI-ISP — excellent low-light noise reduction
- Scene-adaptive 130 dB WDR, 3D DNR, BLC, HLC, Defog, Distortion Correction, EIS
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification
- Face Capture (deep-learning), Scene Change Detection, perimeter events
- Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 8 Mbps
- Line in + line out audio (3.3 Vpp, terminal block)
- 1 × 1 alarm I/O (max 24 VDC/24 VAC, 1 A)
- 1 × RJ45 10/100 Mbps Ethernet; PoE 802.3at Class 4 (max 15 W) or 12 VDC 1.08 A
- microSD up to 512 GB; ANR; NAS (NFS / SMB / CIFS) network storage
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- All-metal chassis (cover + body + bracket); IP67 + IK10 + NEMA 4X moderate
- -30 °C to 60 °C operating range; humidity ≤ 95% non-condensing
Typical Applications
- Car parks, forecourts, loading bays needing flexible FoV (one camera replaces 2-3 fixed-lens variants)
- Perimeter and entrance monitoring with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-filtered alarms and ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 24/7 colour
- Coastal / acid-rain sites needing NEMA 4X moderate anti-corrosion (up to 2 km from coastline)
- Industrial / vandal-prone sites needing IK10 impact resistance
- Sites requiring external sensor wiring (door contacts, PIR, gate switches) via alarm I/O
Compatible Hikvision Devices
- Hikvision NVRs — DS-7600 / 7700 / 9600 series with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel allocation
- Hikvision PoE switches — Class 4 capable switch (DS-3E1xxxP / DS-3E2xxxP)
- iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
- ONVIF Profile S/G/T compatible third-party VMS / NVR systems
- Storage: microSD up to 512 GB on-board, plus NAS via NFS / SMB / CIFS
Optional Accessories
- DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
- DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
- DS-2251ZJ — additional mounting options
What's in the Box
- 1 × Hikvision DS-2CD2647G3-LIZSY(2.8-12mm) 4 MP motorised-VF bullet IP camera (White)
- 1 × integrated bracket + mounting template + screw pack
- 1 × audio + alarm terminal block wiring connector
- 1 × quick start guide + drill template
- 1 × waterproof RJ45 connector
📄 Download: Hikvision DS-2CD2647G3-LIZSY Datasheet (PDF) — full technical specification.
Detailed Specifications — Hikvision DS-2CD2647G3-LIZSY(2.8-12mm) (White)
Full technical specification taken from the official Hikvision DS-2CD2647G3-LIZSY datasheet.
| Camera | |
|---|---|
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 (4 MP) |
| Min. Illumination (Colour) | 0.0005 Lux @ (F1.2, AGC ON); 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0°-355°, Tilt 0°-90°, Rotate 0°-360° |
| Lens | |
| Lens Type | Varifocal motorised lens, 2.8 to 12 mm |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | F1.2 |
| Focal Length & FOV | H 114.6°-41.8°, V 59.3°-23.6°, D 141.3°-48.1° |
| Depth of Field | 1 m to ∞ |
| DORI (Wide / 2.8 mm) | D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m |
| DORI (Tele / 12 mm) | D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
| Illuminator | |
| Supplement Light Type | White Light + IR (Smart Hybrid Light) |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes — 3 lighting modes (IR / White / Smart Hybrid) |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream (60 Hz) | 30 fps @ 2688 × 1520 / 1920 × 1080 / 1280 × 720 |
| Main Stream (50 Hz) | 25 fps @ 2688 × 1520 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream | 30/25 fps @ 1280 × 720 / 640 × 480 / 640 × 360 |
| Third Stream | 10 fps @ 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 (under certain settings) |
| Video Compression | Main: H.265+ / H.264+ / H.265 / H.264; Sub: H.265 / H.264 / MJPEG; Third: H.265 / H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline / Main / High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR / VBR |
| SVC | H.264 + H.265 |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Wide Dynamic Range (WDR) | 130 dB scene-adaptive WDR |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
| Audio | |
| Audio Input | 1 × line in (3.3 Vpp, terminal block, 4.7 KΩ input impedance, non-equilibrium) |
| Audio Output | 1 × line out (3.3 Vpp, terminal block, 100 Ω output impedance) |
| Built-in Microphone / Speaker | No (LIZSY variant); /SL variant adds arrayed dual-mic + 2 W speaker |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Audio Sampling Rate | 8 / 16 / 32 / 48 kHz |
| Environment Noise Filtering | Yes |
| Alarm | |
| Alarm Input | 1 input (terminal block) |
| Alarm Output | 1 output (max. 24 VDC / 24 VAC, 1 A) |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 6 channels |
| Security | HTTPS, 802.1X (EAP-TLS / LEAP / MD5), digest auth, IP filter, TLS 1.1/1.2/1.3, security audit log |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in-free: Chrome 80+ / Firefox 80+ / Edge 89+ |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance, Region exiting |
| Face Capture | Yes (deep-learning) |
| Smart Event | Scene change detection |
| Basic Event | Motion detection (human/vehicle), video tampering, exception |
| Linkage | Upload to FTP/NAS/SD; notify surveillance centre; trigger recording / capture; email |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive |
| On-board Storage | microSD up to 512 GB |
| Reset Key | Yes |
| General | |
| Power Supply | 12 VDC ± 25%, 1.08 A, max. 13 W (Ø5.5 mm coaxial power plug) |
| PoE | IEEE 802.3at Class 4 (max 15 W) |
| Material | Front cover, body and bracket all metal |
| Dimensions | Ø 140 mm × 333.8 mm (Ø 5.5" × 13.1") |
| Weight | 1540 g (3.4 lb.) |
| Operating Conditions | -30 °C to 60 °C; humidity ≤ 95% non-condensing |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Anti-Corrosion | NEMA 4X (NEMA 250-2018) — moderate |
| Approvals | CE-EMC, CE-LVD, CE-RoHS, CB, UL |
| Languages | 33 incl. English, French, German, Spanish, Italian, Dutch, Polish, Portuguese, Russian, Japanese |
| Finish | White |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2647G3-LIZSY record?
4MP (2688 × 1520).
What lens does it have?
A motorised varifocal 2.8–12mm lens with remote zoom and focus.
Does it see in colour at night?
Yes — ColorVu 3.0 gives 24/7 colour down to 0.0005 Lux, backed by Smart Hybrid Light (white + IR) up to 60m.
Does it have audio and alarm connections?
Yes — it has audio and alarm input/output (line in/out) to connect external microphones, speakers or alarm devices. It does not have a built-in speaker/strobe deterrent — for that, choose the /SL model.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics with HikAI-ISP and 130dB WDR classify people and vehicles.
How tough is it?
IP67 weatherproof, IK10 impact-rated and NEMA 4X, in a metal housing.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
