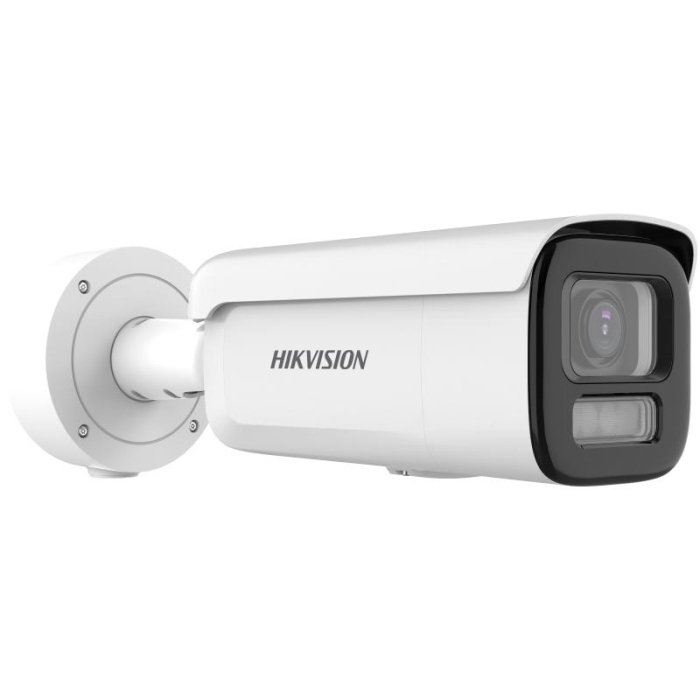

Hikvision DS-2CD2647G3-LIZS2UY/SL 4MP G3 Hybrid Motorized VF Bullet IP Camera with Mic, Spk, & A&A I/O, in WHITE
Hikvision DS-2CD2647G3-LIZS2UY/SL — 4 MP Motorised-VF Bullet with Speaker, Strobe, A&A I/O (White)
4 MP G3 motorised-VF bullet with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, Smart HybridSmart Hybrid Light Light to 60 m, IP67. Mic + 2 W speaker + active strobe + audio alarm + 2 alarm in/out. Same-day dispatch, Leicester.
4 MP G3 motorised-VF bullet (/SL deterrent White) — 2.8-12 mm zoom, 114.6° to 41.8° FoV. F1.2 + 1/1.8" CMOS. Mic + 2 W speaker (120 dB SPL) + strobe + audio alarm. 2 alarm in/out. IP67/IK10. PoE Class 4.
- 4 MP 2688 x 1520
- 2.8-12 mm motorised zoom
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 + Hybrid Light to 60 m
- Mic + 2 W speaker + strobe + audio alarm
- 2 alarm in + 2 alarm out + audio line in/out
- IP67 + IK10
Hikvision DS-2CD2647G3-LIZS2UY/SL(2.8-12mm) — 4 MP ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 /SL Active-Deterrent Motorised-VF Bullet (White)
Hikvision G3 4 MP motorised-VF bullet with active deterrent — 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0, Smart HybridSmart Hybrid Light Light to 60 m, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, HikAI-ISP, built-in arrayed dual-mic + 2 W speaker (120 dB SPL), active white-light strobe, 2×2 alarm I/O, IP67 + IK10 + NEMA 4X.
Overview
The Hikvision DS-2CD2647G3-LIZS2UY/SL(2.8-12mm) is the active-deterrent /SL variant of the 4 MP G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 Smart HybridSmart Hybrid Light Light motorised-VF bullet, in white. It adds a built-in arrayed dual-microphone, a 2 W speaker (120 dB SPL @ 10 cm), white-light strobe, line in/out audio terminal block, and 2 × 2 alarm I/O to the standard 4 MP motorised-VF platform. The 1/1.8" Progressive Scan CMOS captures 2688 × 1520 at 30 fps (60 Hz) with 0.0005 Lux @ F1.2 (ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026) and 0 Lux performance with light.
The motorised 2.8-12 mm F1.2 vari-focal lens delivers wide FoV 114.6° (DORI Detect 61.5 m) to tele FoV 41.8° (DORI Detect 151.7 m) — one camera covers entrance, perimeter and ANPR-distance scenes by remote zoom. Smart HybridSmart Hybrid Light Light combines IR (850 nm) and white-light up to 60 m, with 3 lighting modes. Scene-adaptive 130 dB WDR. HikAI-ISP delivers excellent low-light noise reduction.
The /SL active-deterrent stack: white-light strobe flashes on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events to deter intruders; 2 W speaker (120 dB SPL) drives Smart PA two-way talk or pre-recorded audio warnings; arrayed dual-microphone provides high-quality on-camera audio capture. Audio interface adds 1 × line in + 1 × line out (3.3 Vpp, terminal block, non-equilibrium) for external mic / PA amplifier. Alarm interface 2 × input + 2 × output (max 24 VDC/24 VAC, 1 A) — connect more external sensors and trigger more local relays than the LIZSY non-/SL sibling.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification reduces false alarms by ~90%. Face Capture, scene-change, video-tampering, motion exception events. Multi-codec H.265+/H.264+/H.265/H.264/MJPEG up to 8 Mbps. ONVIF Profile S/G/T + ISAPI/SDK/ISUP. microSD up to 512 GB on-board with ANR. PoE 802.3at Class 4 (max 18 W) or 12 VDC. All-metal IP67 + IK10 + NEMA 4X moderate chassis. -30 °C to 60 °C.
Key Features
- 4 MP at 2688 × 1520 on 1/1.8-inch Progressive Scan CMOS
- 24/7 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 3.0 — full-colour at 0.0005 Lux @ F1.2
- Motorised 2.8-12 mm F1.2 vari-focal lens — DORI 61.5 m (wide) to 151.7 m (tele)
- Smart HybridSmart Hybrid Light Light up to 60 m — IR + white, 3 lighting modes
- HikAI-ISP — excellent low-light noise reduction
- Scene-adaptive 130 dB WDR, 3D DNR, BLC, HLC, Defog, Distortion Correction, EIS
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
- Built-in arrayed dual-microphone for real-time high-quality audio
- Built-in 2 W speaker (120 dB SPL @ 10 cm) — Smart PA + audio deterrent
- White-light strobe deterrent — flashes on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events
- Line in + line out audio (3.3 Vpp, terminal block)
- 2 × input + 2 × output alarm I/O (max 24 VDC/24 VAC, 1 A)
- Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 8 Mbps
- PoE 802.3at Class 4 (max 18 W) or 12 VDC
- microSD up to 512 GB; ANR; NAS storage
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- All-metal chassis; IP67 + IK10 + NEMA 4X moderate
Typical Applications
- Active-deterrent perimeter — retail stores, schools, car parks needing strobe + audio deterrent on AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide events
- Two-way talk for visitor management at gated entrances
- Sites needing multiple external sensors (2 alarm inputs) and multiple external relays (2 alarm outputs)
- Vari-focal flexibility — one camera replaces 2-3 fixed-lens variants
- Industrial / vandal-prone sites needing IK10 + NEMA 4X + active deterrent in one unit
Compatible Hikvision Devices
- Hikvision NVRs — DS-7600 / 7700 / 9600 series with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel allocation
- Hikvision PoE switches — Class 4 capable switch required (DS-3E1xxxP / DS-3E2xxxP)
- iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise VMS
- ONVIF Profile S/G/T compatible third-party VMS / NVR systems
Optional Accessories
- DS-1475ZJ-SUS / DS-1475ZJ-Y — corner mount adapters
- DS-1476ZJ-SUS / DS-1476ZJ-Y — vertical pole mount adapters
- DS-2251ZJ — additional mounting options
What's in the Box
- 1 × Hikvision DS-2CD2647G3-LIZS2UY/SL(2.8-12mm) 4 MP /SL motorised-VF bullet (White)
- 1 × integrated bracket + mounting template + screw pack
- 1 × audio + alarm terminal block wiring connector
- 1 × quick start guide + drill template
- 1 × waterproof RJ45 connector
📄 Download: Hikvision DS-2CD2647G3-LIZS2UY/SL Datasheet (PDF) — full technical specification.
Detailed Specifications — Hikvision DS-2CD2647G3-LIZS2UY/SL(2.8-12mm) (White)
Full technical specification taken from the official Hikvision DS-2CD2647G3-LIZS2UY/SL datasheet.
| Camera | |
|---|---|
| Image Sensor | 1/1.8-inch Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 (4 MP) |
| Min. Illumination (Colour) | 0.0005 Lux @ (F1.2, AGC ON); 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-90°, Rotate 0°-360° |
| Lens | |
| Lens Type | Varifocal motorised lens, 2.8 to 12 mm |
| Aperture | F1.2 |
| Focal Length & FOV | H 114.6°-41.8°, V 59.3°-23.6°, D 141.3°-48.1° |
| Depth of Field | 1 m to ∞ |
| DORI (Wide) | D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m |
| DORI (Tele) | D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
| Illuminator | |
| Supplement Light Type | White Light + IR (Smart Hybrid Light) |
| Supplement Light Range | Up to 60 m |
| IR Wavelength | 850 nm |
| Active Deterrent | White-light strobe (event-triggered) + audio alarm via 2 W speaker |
| Video | |
| Main Stream | 30 fps @ 2688 × 1520 / 1080p / 720p (60 Hz) |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 130 dB scene-adaptive WDR |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
| Audio | |
| Audio Input | Built-in arrayed dual-microphone + 1 × line in (3.3 Vpp, terminal block) |
| Audio Output | 1 × line out (3.3 Vpp, terminal block, 100 Ω) |
| Built-in Speaker | Yes — 2 W max, max. sound pressure level 120 dB @ 10 cm |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Audio Sampling Rate | 8 / 16 / 32 / 48 kHz |
| Environment Noise Filtering | Yes |
| Alarm | |
| Alarm Input | 2 input (terminal block) |
| Alarm Output | 2 output (max. 24 VDC / 24 VAC, 1 A) |
| Network | |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 6 channels |
| Security | HTTPS, 802.1X, digest auth, IP filter, TLS 1.1/1.2/1.3 |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance/exit |
| Face Capture | Yes (deep-learning) |
| Basic Event | Motion, video tampering, exception |
| Linkage | Upload to FTP/NAS/SD; trigger speaker + strobe + recording / capture; email |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive |
| On-board Storage | microSD up to 512 GB |
| General | |
| Power Supply | 12 VDC ± 25% |
| PoE | IEEE 802.3at Class 4 (max 18 W) |
| Material | All metal — cover + body + bracket |
| Dimensions | Ø 140 mm × 333.8 mm |
| Weight | ~1540 g (3.4 lb.) |
| Operating Conditions | -30 °C to 60 °C; humidity ≤ 95% non-condensing |
| Protection | IP67 + IK10 |
| Anti-Corrosion | NEMA 4X moderate |
| Finish | White |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2647G3-LIZS2UY/SL record?
4MP (2688 × 1520).
What lens does it have?
A motorised varifocal 2.8–12mm lens — you can remotely zoom and focus for flexible coverage from wide-angle to long-range.
Does it see in colour at night?
Yes — ColorVu 3.0 gives 24/7 colour down to 0.0005 Lux, backed by Smart Hybrid Light (white + IR) up to 60m.
What deterrent and audio features does the /SL model add?
An arrayed dual-microphone, a built-in speaker, alarm/audio I/O and a white-light strobe — for two-way audio and active deterrence on AcuSense detection.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
How is it powered?
Via PoE or 12V DC.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
