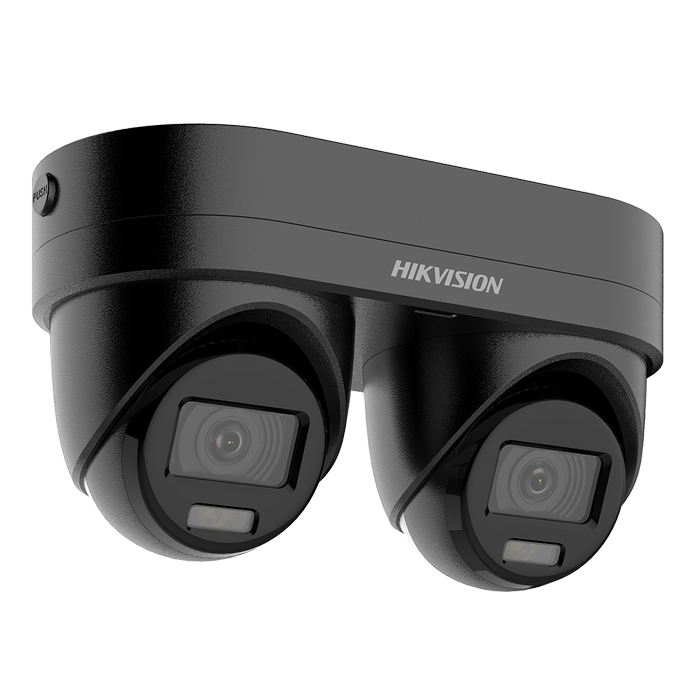

Hikvision DS-2CD2346G3D-IZ2UY/SL 4MP 2.8/4mm Motorized Varifocal Lens AcuSense Darkfighter Dual Turret IP Camera Strobe/Siren/Mic/Speaker BLACK
Hikvision DS-2CD2346G3D-IZ2UY/SL — 4 MP DUAL-LENS DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Camera with Mic, Speaker, Strobe (Black)
Premium DUAL-LENS camera in BLACK — 2 independent 4 MP channels in 1 chassis, 1 IP address, 1 PoE cable. Each channel: 1/3" CMOS, 2.8 or 4 mm point-varifocal F1.6 lens, independent Pan/Tilt/Rotate. Powered by DarkFighter, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human/Vehicle, 30 m smart IR, 120 dB WDR, IP67/IK10/NEMA 4X. Mic + 2 W speaker + active strobe + audio alarm + 1 alarm I/O. Ideal for corner mounts. Same-day dispatch, Leicester.
The Hikvision DS-2CD2346G3D-IZ2UY/SL in Black finish — 4 MP DUAL-LENS DarkFighter camera with 2 independent channels in a single chassis. Same imaging spec as the White variant — each channel uses 1/3" Progressive Scan CMOS (4 MP, 2688 × 1520), motorised 2.8 or 4 mm point-varifocal F1.6 lens, independent Pan 0°-360° / Tilt 0°-75° / Rotate 0°-360°, 0.001 Lux @ F1.6, 120 dB true WDR. Black finish for design-led installs needing discreet hardware.
Both channels: AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle deep-learning classification on Line crossing, Intrusion, Region entrance/exit (per channel). Face Capture, Scene Change Detection. Built-in arrayed dual-microphone + 2 W speaker for audio capture and deterrence. Active strobe + audio alarm AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-linked. 1 alarm in + 1 alarm out + audio line in/out. Multi-codec H.265+/H.264+/MJPEG per channel to 16 Mbps. ONVIF Profile S/G/T + ISAPI + SDK + ISUP. PoE 802.3at Class 4 (max 18 W). microSD up to 512 GB with ANR. NAS NFS / SMB / CIFS. Black metal cover + body. 199.9 × 120.1 × 97.2 mm, 1200 g. IP67 + IK10 + NEMA 4X. -30 °C to 60 °C.
- DUAL-LENS: 2 independent 4 MP channels in 1 chassis
- 1 IP, 1 PoE cable, 2 separate streams
- Each channel: 1/3" CMOS, F1.6, 2.8 or 4 mm point-varifocal motorised lens
- Independent Pan/Tilt/Rotate per channel
- Powered by DarkFighter — 0.001 Lux @ F1.6
- 120 dB true WDR + AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide per channel
- 30 m Smart Supplement IR (850 nm)
- Mic + 2 W speaker + active strobe + audio alarm
- 1 alarm in + 1 alarm out + audio line in/out
- Multi-codec H.265+/H.264+/MJPEG; main to 16 Mbps
- microSD up to 512 GB with ANR; NAS
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- PoE 802.3at Class 4 (max 18 W)
- Black metal cover + body; IP67 + IK10 + NEMA 4X
- 199.9 × 120.1 × 97.2 mm; 1200 g
Overview
The Hikvision DS-2CD2346G3D-IZ2UY/SL in Black finish is a premium DUAL-LENS DarkFighter camera with 2 independent 4 MP channels in a single chassis — 1 IP, 1 PoE cable. Each channel: 1/3" CMOS (2688 × 1520, 4 MP), 2.8 or 4 mm point-varifocal F1.6 motorised lens, independent Pan/Tilt/Rotate. Black for design-led installs.
Both channels: Powered by DarkFighter — 0.001 Lux @ F1.6, 0 Lux with IR. 120 dB true WDR. 30 m Smart Supplement IR. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification per channel. Mic + 2 W speaker + active strobe + audio alarm + 1 alarm I/O. Multi-codec to 16 Mbps. ONVIF Profile S/G/T. PoE 802.3at Class 4. Black metal. IP67 + IK10 + NEMA 4X.
Key Features
- DUAL-LENS: 2 independent 4 MP channels (Black)
- 1 IP, 1 PoE cable, 2 streams
- Per channel: 1/3" CMOS, F1.6, motorised 2.8/4 mm point-varifocal
- Independent Pan/Tilt/Rotate
- Powered by DarkFighter — 0.001 Lux @ F1.6
- 120 dB WDR + AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide
- Mic + 2 W speaker + strobe
- 1 alarm I/O
- PoE Class 4
- Black; IP67 + IK10 + NEMA 4X
Typical Applications
- Design-led discreet black hardware
- Corner mounts and T-junctions
- Building-corner coverage with one drop
- Reception areas with dual-angle monitoring
📄 Download: Hikvision DS-2CD2346G3D-IZ2UY/SL datasheet (PDF)
Detailed Specifications — DS-2CD2346G3D-IZ2UY/SL (Black, Dual-Lens)
| Camera (per channel) | |
|---|---|
| Channel Count | 2 independent |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 2688 × 1520 (4 MP) |
| Min. Lux | 0.001 @ F1.6; 0 with IR |
| Lens (per channel) | |
| Lens | Motorised 2.8 + 4 mm point-varifocal F1.6 |
| FoV | 2.8 mm: 99.3° · 4 mm: 80.0° |
| DORI | 2.8 mm D: 66.6 m / 4 mm D: 79.2 m |
| Illuminator | |
| IR Range | 30 m (Smart, 850 nm) |
| Video | |
| Compression | H.265+ / H.264+ / MJPEG per channel |
| Bit Rate | 32 Kbps - 16 Mbps |
| WDR | 120 dB true |
| Audio + Alarm | |
| Audio In | Arrayed dual-mic |
| Audio Out | 2 W speaker |
| Alarm | 1 in + 1 out |
| Strobe | Active, AcuSense-linked |
| Smart | |
| AcuSense | Human + Vehicle DL per channel |
| General | |
| PoE | 802.3at Class 4 (18 W) |
| Dimensions | 199.9 × 120.1 × 97.2 mm |
| Weight | 1200 g |
| Operating | -30 °C to 60 °C |
| Protection | IP67 / IK10 / NEMA 4X |
| Finish | Black |
Frequently Asked Questions
What makes the DS-2CD2346G3D a dual-lens camera?
It has two independent 4MP camera channels in a single housing, sharing one IP address and one PoE cable — letting you cover two directions or areas from a single mounting point and cable run.
What resolution does each lens record?
Each channel records 4MP (2688 × 1520).
What lenses does it use?
Each channel has a motorised varifocal 2.8–4mm lens with remote zoom and focus.
How is the low-light performance?
Powered-by-DarkFighter low-light technology with smart-supplement IR.
What deterrent features does it have?
A built-in microphone and speaker, white-light strobe and alarm I/O for audible and visual warnings on AcuSense detection.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
How many recorder channels does it use?
It connects over a single cable/IP but uses two channels on the NVR; ensure your Hikvision NVR has the spare channels. ONVIF compatible.
