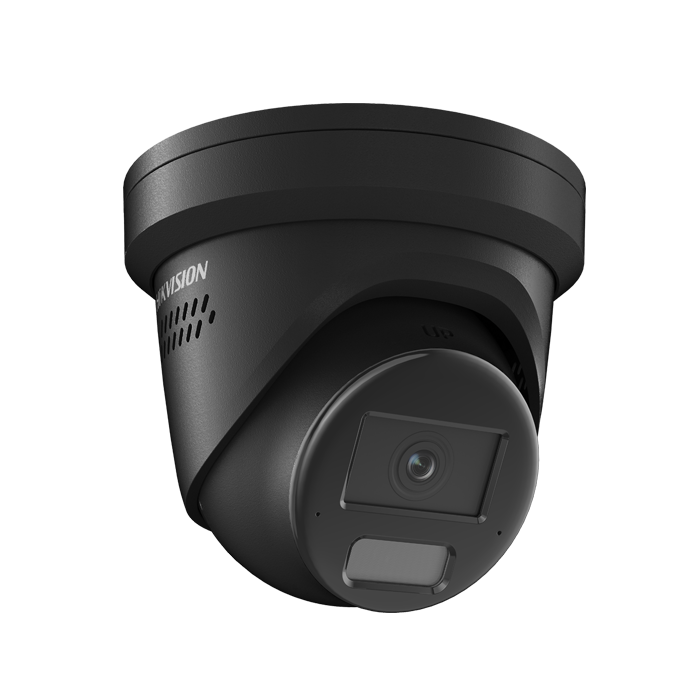

Hikvision DS-2CD2346G3-IZS2UY/SL 4MP 2.8/4mm Motorized Varifocal Lens AcuSense Darkfighter Turret IP Camera Strobe/Siren/Mic/Speaker BLACK
Hikvision DS-2CD2346G3-IZS2UY/SL — 4 MP DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motorised-VF Turret with Mic, Speaker, Strobe, A&A I/O (Black)
4 MP G3 motorised-VF turret /SL deterrent in BLACK — Powered by DarkFighter, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human/Vehicle classification, 30 m smart IR, 130 dB WDR, IP67/IK10/NEMA 4X. 2.8-4 mm motorised vari-focal + mic + 2 W speaker (105 dB SPL) + active strobe + audio alarm + 1 alarm in/out. PoE 802.3at Class 4. Same-day dispatch, Leicester.
The Hikvision DS-2CD2346G3-IZS2UY/SL in Black finish — 4 MP DarkFighter motorised-VF turret with full /SL deterrent feature set: built-in 2 W speaker (105 dB SPL), active strobe, audio-alarm linkage, 1 alarm I/O. The motorised 2.8-4 mm vari-focal lens lets installers dial in field-of-view remotely. 1/3" Progressive Scan CMOS at 2688 × 1520, 0.001 Lux @ F1.6, 130 dB true WDR, 30 m Smart Supplement IR (850 nm). AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification. Multi-codec to 16 Mbps. PoE 802.3at Class 4 (max 18 W).
- 4 MP at 2688 × 1520 on 1/3" CMOS
- Powered by DarkFighter — 0.001 Lux @ F1.6
- 2.8-4 mm motorised vari-focal — remote zoom/focus
- DORI Detect 66.6 m (2.8 mm) to 79.2 m (4 mm)
- 30 m Smart Supplement IR (850 nm)
- 130 dB true WDR + AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle
- Arrayed dual-microphone (audio capture)
- Built-in 2 W speaker (105 dB SPL) — audio deterrent
- Active strobe + audio alarm — AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-linked
- 1 × alarm in + 1 × alarm out
- microSD up to 512 GB with ANR; NAS
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- PoE 802.3at Class 4 (max 18 W)
- Black metal cover + body; IP67 + IK10 + NEMA 4X
Overview
The Hikvision DS-2CD2346G3-IZS2UY/SL in Black finish — /SL deterrent variant of the 4 MP DarkFighter motorised varifocal turret. Built-in 2 W speaker (105 dB SPL), active strobe, audio-alarm linkage, 1 × alarm in/out.
Imaging: 1/3" CMOS at 2688 × 1520 (4 MP), 2.8-4 mm motorised vari-focal F1.6, 0.001 Lux, 130 dB true WDR, 30 m Smart Supplement IR. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification. Multi-codec to 16 Mbps. ONVIF Profile S/G/T. PoE 802.3at Class 4. Black metal. IP67 + IK10 + NEMA 4X.
Key Features
- 4 MP at 2688 × 1520
- Powered by DarkFighter — 0.001 Lux @ F1.6
- 2.8-4 mm motorised vari-focal
- DORI Detect 66.6-79.2 m
- 2 W speaker (105 dB SPL) + strobe + audio alarm
- 1 alarm I/O
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide
- PoE Class 4
- Black; IP67 + IK10 + NEMA 4X
Typical Applications
- Design-led discreet black hardware with active deterrence
- Poorly-lit perimeters needing low-light colour + deterrent
- Retail front-of-house with audible warnings
📄 Download: Hikvision DS-2CD2346G3-IZS2UY/SL datasheet (PDF)
Detailed Specifications — DS-2CD2346G3-IZS2UY/SL (Black)
| Camera | |
|---|---|
| Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 2688 × 1520 (4 MP) |
| Min. Lux | 0.001 @ F1.6; 0 with IR |
| Lens | |
| Lens | Motorised varifocal 2.8-4 mm F1.6 |
| FoV | 2.8 mm: 99.3° · 4 mm: 80.0° |
| DORI | 2.8 mm D: 66.6 m / 4 mm D: 79.2 m |
| Illuminator | |
| IR Range | 30 m (Smart, 850 nm) |
| Video | |
| Compression | H.265+ / H.264+ / MJPEG |
| Bit Rate | 32 Kbps - 16 Mbps |
| WDR | 130 dB |
| Audio + Alarm | |
| Audio In | Arrayed dual-mic + line in |
| Audio Out | 2 W speaker (105 dB SPL) |
| Alarm | 1 in + 1 out |
| Strobe | Active, AcuSense-linked |
| Smart | |
| AcuSense | Human + Vehicle DL |
| General | |
| PoE | 802.3at Class 4 (18 W) |
| Dimensions | Ø 138.3 × 115.4 mm |
| Weight | 780 g |
| Protection | IP67 / IK10 / NEMA 4X |
| Finish | Black |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2346G3-IZS2UY/SL record?
4MP (2688 × 1520).
What lens does it have?
A motorised varifocal 2.8–4mm lens — you can remotely zoom and focus to fine-tune the field of view.
How is the low-light performance?
Powered-by-DarkFighter with colour imaging from 0.001 Lux at F1.6, plus smart-supplement IR up to 30m.
What deterrent features does the /SL model add?
A built-in microphone and speaker, a white-light strobe and siren, and alarm/audio I/O — AcuSense detection triggers audible and visual warnings to deter intruders.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
How is it powered?
Via PoE or 12V DC.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
