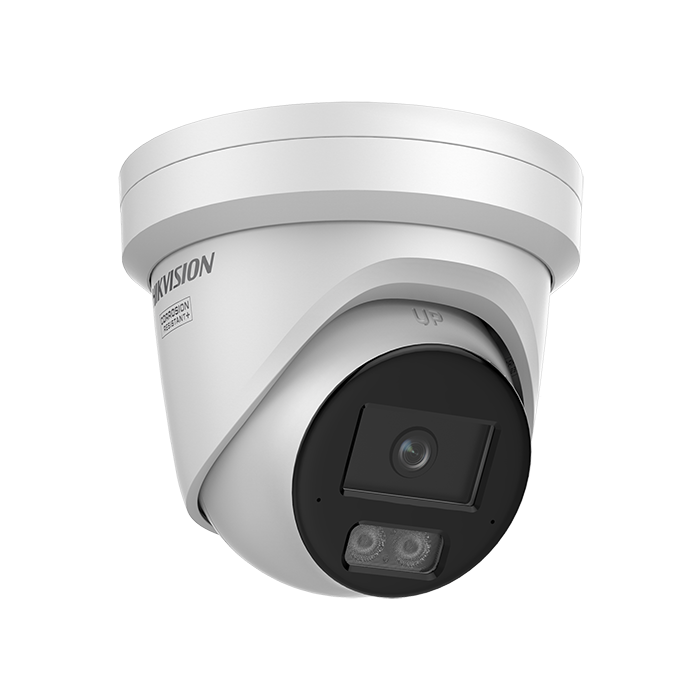

Hikvision DS-2CD2346G3-IZ2UY 4MP 2.8/4mm Motorized Varifocal Lens AcuSense Darkfighter Turret Network Camera with Mic WHITE
Hikvision DS-2CD2346G3-IZ2UY — 4 MP DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motorised-VF Turret with Mic (White)
4 MP G3 motorised-varifocal turret "Powered by DarkFighter" — outstanding low-light at 0.001 Lux @ F1.6, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human/vehicle deep-learning classification, 30 m IR Smart Supplement Light, 130 dB true WDR, IP67 + IK10 + NEMA 4X. 2.8-4 mm motorised vari-focal lens. Built-in arrayed dual-microphone. In stock at Netview CCTV, Leicester — same-day dispatch and trade pricing for installers.
The Hikvision DS-2CD2346G3-IZ2UY is the 4 MP DarkFighter motorised-varifocal turret IP camera in White finish, with a 2.8 to 4 mm motorised vari-focal lens delivering 99.3° to 80° horizontal FoV (DORI Detect 66.6 m to 79.2 m). The 1/3" Progressive Scan CMOS sensor and Hikvision DarkFighter image-signal processing deliver outstanding low-light performance at 0.001 Lux @ F1.6 (0 Lux with IR). 130 dB true WDR handles high-contrast scenes (back-lit doorways, sunset car parks).
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification reduces false alarms by ~90% on Line crossing, Intrusion, Region entrance/exit events. Face Capture, Scene Change Detection, Motion / Tampering / Exception events on-camera. Multi-codec output supports main stream up to 16 Mbps over H.265+ / H.264+ / MJPEG plus sub-stream and (under certain settings) third stream. ONVIF Profile S/G/T + ISAPI + SDK + ISUP integrate with third-party VMS / NVR; first-party iVMS-4200, Hik-Connect and Hik-Central. microSD up to 512 GB on-board with ANR (Auto Network Replenishment) plus NAS over NFS / SMB / CIFS. Built-in 2 arrayed microphones for high-quality audio capture. Plug-in-free web browser (Chrome 80+, Firefox 80+, Edge 89+).
Hikvision's DarkFighter technology combines a wide-aperture lens with a large-pixel sensor and advanced signal processing to retain colour detail in scenes below 1 lux — ideal for poorly-lit car parks, courtyards and unlit perimeters where standard cameras revert to black-and-white. The motorised vari-focal lens enables remote zoom-and-focus adjustment without a site visit — install once, dial in the field-of-view from your VMS or web browser. Powered by PoE 802.3af Class 3 (max 9.5 W) or 12 VDC. Metal-cover-metal-body chassis, IP67 ingress, IK10 impact, NEMA 4X moderate-level anti-corrosion (coastal areas up to 2 km from coastlines, acid-rain affected sites). -30 °C to 60 °C operating range.
- 4 MP resolution at 2688 × 1520 on 1/3" Progressive Scan CMOS
- Powered by DarkFighter — outstanding low-light at 0.001 Lux @ F1.6
- 2.8-4 mm motorised vari-focal lens (remote zoom/focus)
- 99.3° wide to 80° tele horizontal FoV; DORI Detect 66.6 m to 79.2 m
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification
- 130 dB true WDR + 3D DNR + BLC + HLC + Defog + Distortion Correction
- 30 m Smart IR supplement light (850 nm)
- Built-in 2 arrayed microphones for audio capture
- Multi-codec H.265+ / H.264+ / MJPEG; main stream up to 16 Mbps
- microSD up to 512 GB with ANR; NAS NFS / SMB / CIFS
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- iVMS-4200, Hik-Connect, Hik-Central; plug-in-free web
- PoE 802.3af Class 3 (max 9.5 W) or 12 VDC
- Metal cover + body; IP67 + IK10 + NEMA 4X (moderate)
- -30 °C to 60 °C operating range
Overview
The Hikvision DS-2CD2346G3-IZ2UY is a 4 MP motorised varifocal turret IP camera in the Hikvision G3 "Powered by DarkFighter" range — designed for installations needing outstanding low-light colour clarity plus the install convenience of a remote-adjustable lens. The 1/3" Progressive Scan CMOS sensor combined with Hikvision's DarkFighter image-signal processing delivers 0.001 Lux minimum colour illumination at F1.6, with 0 Lux performance using the integrated IR. The motorised 2.8-4 mm vari-focal lens lets installers dial in the field-of-view from a VMS or web browser — no second site visit needed to refine framing.
4 MP imaging at 2688 × 1520 with 130 dB true WDR for back-lit scenes. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification on Line crossing, Intrusion, Region entrance/exit — ~90% false-alarm reduction vs simple motion detection. Face Capture, Scene Change Detection. Multi-codec output to 16 Mbps. ONVIF Profile S/G/T + ISAPI + SDK + ISUP. iVMS-4200 / Hik-Connect / Hik-Central.
Built-in 2 arrayed microphones. microSD up to 512 GB with ANR. NAS NFS / SMB / CIFS. Plug-in-free web (Chrome 80+, Firefox 80+, Edge 89+). PoE 802.3af Class 3 (max 9.5 W) or 12 VDC. Metal cover + body. IP67 + IK10 + NEMA 4X (moderate). -30 °C to 60 °C.
Key Features
- 4 MP at 2688 × 1520 on 1/3" Progressive Scan CMOS
- Powered by DarkFighter — 0.001 Lux @ F1.6
- 2.8-4 mm motorised vari-focal — remote zoom/focus
- 99.3° wide to 80° tele H FoV
- DORI Detect 66.6 m (2.8 mm) to 79.2 m (4 mm)
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Human + Vehicle classification
- 130 dB true WDR + 3D DNR + BLC + HLC + Defog
- 30 m smart IR (850 nm)
- Built-in 2 arrayed microphones
- Multi-codec H.265+/H.264+/MJPEG to 16 Mbps
- microSD up to 512 GB with ANR; NAS
- ONVIF Profile S/G/T + ISAPI + SDK + ISUP
- PoE 802.3af Class 3 (max 9.5 W)
- Metal cover + body; IP67 + IK10 + NEMA 4X
Typical Applications
- Poorly-lit car parks, courtyards, unlit perimeters needing colour below 1 lux
- Remote-site installs needing future lens-framing adjustment without return visits
- Mixed outdoor monitoring with WDR for headlight back-light
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-filtered perimeter alarms
- Forensic-detail surveillance with digital zoom-in
What's in the Box
- 1 × Hikvision DS-2CD2346G3-IZ2UY DarkFighter motorised-VF turret (White)
- 1 × mounting template + screw pack
- 1 × quick start guide + drill template
- 1 × waterproof RJ45 connector
📄 Download: Hikvision DS-2CD2346G3-IZ2UY datasheet (PDF)
Detailed Specifications — Hikvision DS-2CD2346G3-IZ2UY (White)
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 (4 MP) |
| Min. Illumination (Colour) | 0.001 Lux @ F1.6; 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-75°, Rotate 0°-360° |
| Lens | |
| Lens Type | Motorised varifocal, 2.8 to 4 mm |
| Aperture | F1.6 |
| Horizontal FOV | 2.8 mm: 99.3° · 4 mm: 80.0° |
| DORI (2.8 mm) | D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m |
| DORI (4 mm) | D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Illuminator | |
| Supplement Light Range | Up to 30 m (IR, 850 nm, Smart Supplement) |
| Video | |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 130 dB true WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 8 polygon masks |
| Audio | |
| Audio Input | 2 built-in arrayed microphones |
| Audio Compression | G.711 / G.722.1 / G.726 / MP3 / AAC-LC |
| Smart Function | |
| AcuSense | Human + Vehicle deep-learning |
| Perimeter Protection | Line crossing, Intrusion, Region entrance/exit |
| Face Capture | Yes |
| Network | |
| API | ONVIF (S, G, T), ISAPI, SDK, ISUP |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| General | |
| PoE | IEEE 802.3af Class 3 (max 9.5 W) |
| Material | Metal cover + metal body |
| Dimensions | Ø 138.3 mm × 115.4 mm |
| Weight | 550 g (1.2 lb.) |
| Operating | -30 °C to 60 °C |
| Protection | IP67 / IK10 / NEMA 4X (moderate) |
| Finish | White |
Frequently Asked Questions
What resolution does the Hikvision DS-2CD2346G3-IZ2UY record?
4MP (2688 × 1520).
What lens does it have?
A motorised varifocal 2.8–4mm lens, so you can remotely zoom and focus to fine-tune the field of view during setup.
How is the low-light performance?
Powered-by-DarkFighter with colour imaging from 0.001 Lux at F1.6, plus smart-supplement IR night vision up to 30m.
Does it have audio?
Yes — a built-in microphone.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles.
Is it weatherproof?
Yes — IP67 rated for outdoor installation.
How is it powered?
Via PoE or 12V DC.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
