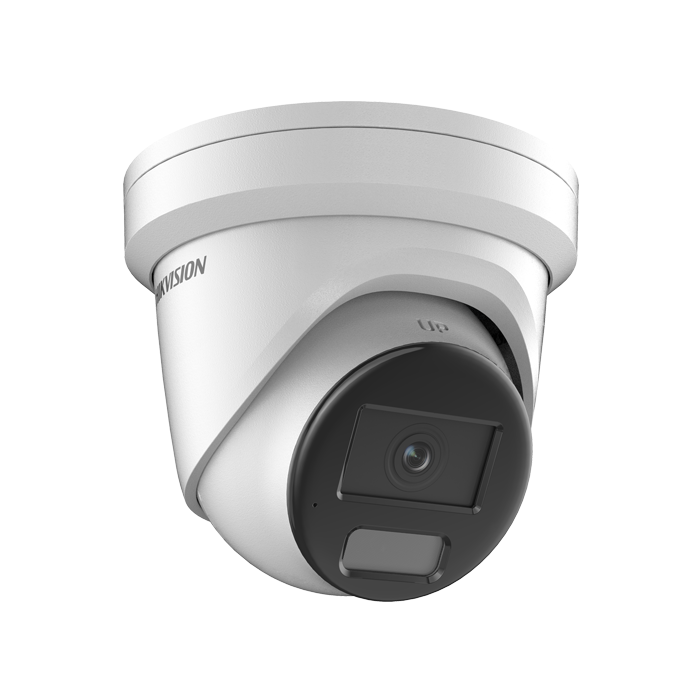

Hikvision DS-2CD23166G3-I2UY 16MP 2.8mm AcuSense Darkfighter Fixed Turret IP Camera with Mic WHITE

Overview

The Hikvision DS-2CD23166G3-I2UY is the 16 MP fixed turret in the Hikvision G3 "Powered by DarkFighter" range — the highest-resolution G3 fixed-lens model in the line-up. The 1/1.8" Progressive Scan CMOS sensor delivers 4608 × 3456 UHD imaging (up to 15 fps at full resolution, 30 fps stepped down to 4K) with 0.0008 Lux minimum colour illumination at F1.6 and 0 Lux performance with IR. Hikvision's DarkFighter sensor and image-signal processing dramatically improve low-light noise and detail retention compared to standard low-light cameras.

Smart HybridSmart Hybrid Light Light combines IR and white LEDs up to 40 m supplement range with intelligent supplement-light switching — minimising light pollution while ensuring usable colour detail at night. 130 dB true WDR captures both bright and shaded areas of high-contrast scenes (back-lit doorways, vehicle headlights, sunset car parks). The Hikvision image-engine offers 3D DNR, BLC, HLC, defog, distortion correction, white-balance adjustment, 4 polygon privacy masks and ROI-aware bit-rate control.

AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics filter human and vehicle classifications on Line Crossing, Intrusion, Region Entrance and Region Exit events — reducing false alarms from foliage, wildlife or weather by approximately 90% compared with simple motion detection. Face Capture, scene-change detection, video-tampering and motion exception events are also supported on-camera. Multi-codec output (H.265+ / H.264+ / H.265 / H.264 / MJPEG) up to 16 Mbps with main stream + sub-stream + (under certain settings) third stream gives flexibility for VMS integration. ONVIF Profile S/G/T, ISAPI, SDK and ISUP supply integration with third-party VMS / NVR; first-party Hikvision iVMS-4200 desktop, Hik-Connect mobile and Hik-Central enterprise platforms are fully supported.

The 16 MP turret runs on PoE 802.3af Class 3 (max 10.5 W) or 12 VDC (0.7 A, max 8.5 W) and includes microSD on-board storage up to 512 GB with Auto Network Replenishment (ANR) that fills VMS gaps from local card during network outages. Built-in arrayed dual-microphone captures real-time audio. The metal chassis is IP67 ingress-protected, IK10 impact-rated and NEMA 4X moderate-level anti-corrosion (suitable for coastal areas up to 2 km from coastlines, and acid-rain affected sites). Operating range is -30 °C to 60 °C with humidity ≤ 95% non-condensing.

Key Features

• 16 MP UHD resolution at 4608 × 3456 on 1/1.8" Progressive Scan CMOS
• Powered by DarkFighter — outstanding low-light performance at 0.0008 Lux @ F1.6
• 2.8 mm fixed F1.6 lens — 94.5° H FoV / 69.9° V FoV / 123.2° diagonal
• DORI Detect 117 m / Observe 46 m / Recognise 23 m / Identify 11 m
• Smart HybridSmart Hybrid Light Light (IR + White) up to 40 m with intelligent supplement-light switching
• 130 dB true WDR, 3D DNR, BLC, HLC, Defog, Distortion Correction
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification (Line crossing, Intrusion, Region entrance/exiting)
• Face Capture (deep-learning), Scene Change Detection, Motion / Tampering / Exception events
• Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 16 Mbps
• ROI bit-rate control; SVC scalable video coding; CBR and VBR rate control
• Built-in arrayed dual-microphone with environment noise filter
• PoE 802.3af Class 3 (max 10.5 W) or 12 VDC
• microSD up to 512 GB with ANR; NAS (NFS / SMB / CIFS)
• ONVIF Profile S/G/T + ISAPI + SDK + ISUP
• iVMS-4200, Hik-Connect, Hik-Central + plug-in-free web browser
• Metal cover + metal body; IP67 + IK10 + NEMA 4X
• -30 °C to 60 °C operating range

Typical Applications

• High-detail forensic surveillance — retail, banking, transport, healthcare needing maximum pixel count from a fixed lens
• Large-area coverage with digital-zoom evidence — one 16 MP camera replaces two 4 MP cameras
• Perimeter and entrance monitoring with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-filtered alarms
• Car parks, loading bays, courtyards needing colour clarity at night with WDR for headlights
• Long-range applications — use the 4 mm variant for DORI D: 148 m

Compatible Hikvision Devices

• Hikvision NVRs — DS-7600 / 7700 / 9600 series (check AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel allocation per NVR)
• Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP for single-cable installs
• iVMS-4200 desktop client (Windows / macOS)
• Hik-Connect mobile app (iOS / Android)
• Hik-Central enterprise VMS
• ONVIF Profile S/G/T compatible third-party VMS / NVR systems

Optional Accessories

• DS-1275ZJ-SUS — pendant mount adapter
• DS-1273ZJ-140 / DS-1273ZJ-140B — wall mount brackets
• DS-2200ZJ-WA-140 / DS-2200ZJ-WAJ-140 — wall mounts with junction box
• DS-1276ZJ-SUS — vertical pole mount
• DS-1280ZJ-PT6 — corner mount adapter

What's in the Box

• 1 × Hikvision DS-2CD23166G3-I2UY 16 MP turret IP camera (White, 2.8 mm)
• 1 × mounting template + screw pack
• 1 × quick start guide + drill template
• 1 × waterproof RJ45 connector
