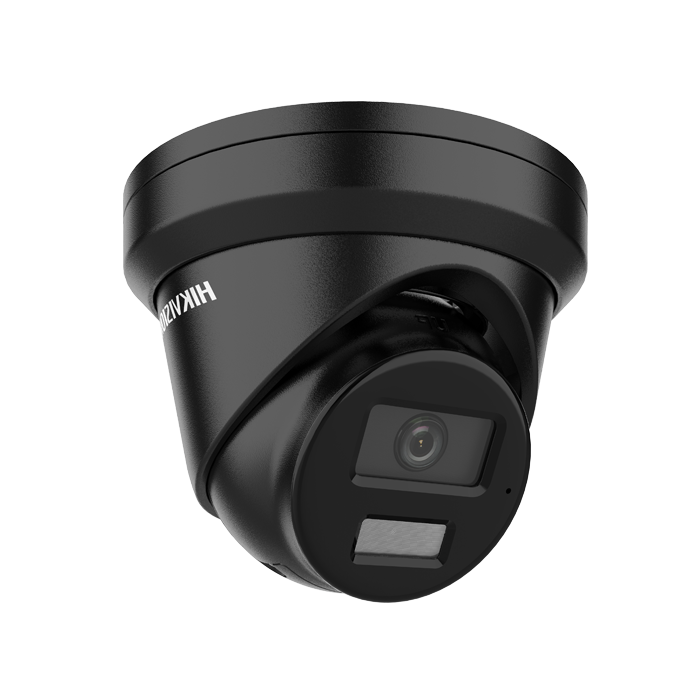

Hikvision DS-2CD23126G3-I2UY 12MP 2.8mm AcuSense Darkfighter Fixed Turret IP Camera with Mic BLACK

Overview

The Hikvision DS-2CD23126G3-I2UY(2.8MM)/B is the 12 MP fixed turret in the Hikvision G3 "Powered by DarkFighter" range, finished in matte black for installations that benefit from a less visible camera (designer interiors, dark soffits, modern building facades). The 1/1.8-inch Progressive Scan CMOS delivers 4608 × 2592 imaging (up to 20 fps at full resolution, 30 fps stepped down to 4K) with 0.0008 Lux @ (F1.6, AGC ON) minimum colour illumination at F1.6 and 0 Lux performance with IR. Hikvision's DarkFighter sensor and image-signal processing dramatically improve low-light noise and detail retention compared with standard low-light cameras.

Smart IR supplement light up to 40 m (850 nm) with intelligent supplement-light switching minimises light pollution while ensuring usable detail at night. 130 dB true WDR captures both bright and shaded areas of high-contrast scenes (back-lit doorways, vehicle headlights, sunset car parks). The Hikvision image-engine offers 3D DNR, BLC, HLC, defog, distortion correction, EIS image stabilization, white-balance adjustment, 4 polygon privacy masks and ROI-aware bit-rate control.

AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics filter human and vehicle classifications on Line Crossing, Intrusion, Region Entrance and Region Exit events — reducing false alarms from foliage, wildlife or weather by approximately 90% compared with simple motion detection. Face Capture, scene-change detection, video-tampering and motion exception events are also supported on-camera. Multi-codec output (H.265+ / H.264+ / H.265 / H.264 / MJPEG) up to 24 Mbps with main stream + sub-stream + (under certain settings) third stream gives flexibility for VMS integration. ONVIF Profile S/G/T, ISAPI, SDK and ISUP supply integration with third-party VMS / NVR; first-party Hikvision iVMS-4200 desktop, Hik-Connect mobile and Hik-Central enterprise platforms are fully supported.

The 12 MP turret runs on PoE 802.3af Class 3 (max 10.5 W) or 12 VDC 0.7 A (max 8.5 W) and includes microSD on-board storage up to 512 GB with Auto Network Replenishment (ANR). Built-in arrayed dual-microphone captures real-time audio. The metal chassis is IP67 ingress-protected and NEMA 4X moderate-level anti-corrosion (suitable for coastal areas up to 2 km from coastlines, and acid-rain affected sites). Operating range is -30 °C to 60 °C with humidity ≤ 95% non-condensing.

Key Features

• 12 MP resolution at 4608 × 2592 on 1/1.8-inch Progressive Scan CMOS
• Black finish — discreet installation in dark interiors / facades
• Powered by DarkFighter — outstanding low-light performance at 0.0008 Lux @ (F1.6, AGC ON)
• 2.8 mm fixed F1.6 lens — 94.2° H FoV / 51.1° V FoV / 110.2° diagonal
• DORI D: 117 m, O: 46 m, R: 23 m, I: 11 m at 2.8 mm
• Smart IR supplement light up to 40 m (850 nm) with intelligent supplement-light switching
• 130 dB true WDR, 3D DNR, BLC, HLC, Defog, Distortion Correction, EIS, Scene-Adaptive ISP
• AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning Human + Vehicle classification
• Face Capture (deep-learning), Scene Change Detection, Motion / Tampering / Exception events
• Multi-codec: H.265+ / H.264+ / H.265 / H.264 / MJPEG; main stream up to 24 Mbps
• ROI bit-rate control; SVC scalable video coding; CBR and VBR rate control
• Built-in arrayed dual-microphone, 8 / 16 / 32 / 48 kHz sampling, environment noise filter
• 1 × RJ45 10/100 Mbps Ethernet; PoE 802.3af Class 3 (max 10.5 W) or 12 VDC 0.7 A
• microSD up to 512 GB; ANR; NAS (NFS / SMB / CIFS) network storage
• ONVIF Profile S/G/T + ISAPI + SDK + ISUP for VMS integration
• iVMS-4200 desktop, Hik-Connect mobile, Hik-Central enterprise; web browser plug-in-free
• Security: HTTPS, 802.1X (EAP-TLS / LEAP / MD5), digest authentication, IP filter, TLS 1.1/1.2/1.3, security audit log
• Metal cover + metal body; IP67 ingress; NEMA 4X moderate anti-corrosion
• -30 °C to 60 °C operating range; humidity ≤ 95% non-condensing

Typical Applications

• High-end retail, hospitality, and designer interiors needing discreet cameras (black blends into dark ceilings/soffits)
• Forensic-grade surveillance — banking, transport, healthcare, education facilities
• Large-area covering with digital-zoom evidence — single 12 MP camera reduces channel count vs 2 × 4 MP cameras
• Perimeter and entrance monitoring with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-filtered alarms
• Car parks, loading bays, courtyards needing colour clarity at night and WDR for headlight backlight

Compatible Hikvision Devices

• Hikvision NVRs — DS-7600 / 7700 / 9600 series (verify AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide channel allocation per model)
• Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP for single-cable installs
• iVMS-4200 desktop client (Windows / macOS)
• Hik-Connect mobile app (iOS / Android) for remote view and notifications
• Hik-Central enterprise VMS / Hik-Central Professional
• ONVIF Profile S/G/T compatible third-party VMS / NVR systems
• Storage: microSD up to 512 GB on-board, plus NAS via NFS / SMB / CIFS

Optional Accessories

• DS-1275ZJ-SUS — pendant mount adapter
• DS-1273ZJ-140 / DS-1273ZJ-140B — wall mount brackets (black variant available)
• DS-2200ZJ-WA-140 / DS-2200ZJ-WAJ-140 — wall mounts with junction box
• DS-1276ZJ-SUS — vertical pole mount
• DS-1280ZJ-PT6 — corner mount adapter
• DS-1271ZJ-140 / DS-2280ZJ-WA140 / DS-2210ZJ-WA-140 — pendant / wall variants

What's in the Box

• 1 × Hikvision DS-2CD23126G3-I2UY(2.8MM)/B 12 MP turret IP camera (Black, 2.8 mm)
• 1 × mounting template + screw pack
• 1 × quick start guide + drill template
• 1 × waterproof RJ45 connector
