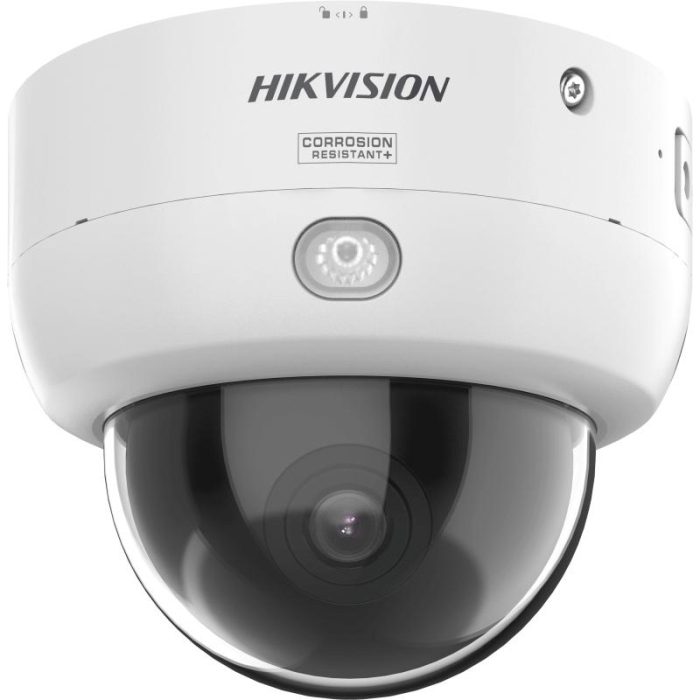

Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart Hybrid Light AcuSense PTRZ Dome Network Camera with Mic WHITE
The Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart HybridSmart Hybrid Light Light AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera with Mic WHITE is a 4MP dome IP camera with Smart HybridSmart Hybrid Light Light / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8/4 mm point-varifocal (two focal lengths in one lens) lens and 30 m IR night vision. Hikvision model name: 4 MP AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2688 × 1520) resolution, 1/3" Progressive Scan CMOS sensor
- Motorised pan, tilt, rotate and zoom (PTRZ) - aim and zoom remotely, no ladder work
- 2.8 mm and 4 mm in one lens (point varifocal) - switch the field of view remotely
- Smart HybridSmart Hybrid Light Light - smart, IR-only and white-light modes
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Crystal-clear audio from an arrayed dual microphone
- 120 dB WDR for clear images against strong backlight
- IP67 weatherproof and IK10 vandal-resistant
- Anti-corrosion design (NEMA 4X) for harsh and coastal environments
- Horizontal field of view 99.1° / 79.9°
- MicroSD slot up to 512 GB
- Alarm I/O: 1 input, 1 output (max. 12VDC, 30mA)
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G
Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart HybridSmart Hybrid Light Light AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera with Mic WHITE — IP Surveillance Camera
4MP dome IP camera with Smart HybridSmart Hybrid Light Light / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8/4 mm point-varifocal (two focal lengths in one lens) lens and 30 m IR night vision. Hikvision: 4 MP AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera.
Overview
The Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart HybridSmart Hybrid Light Light AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera with Mic WHITE is a 4MP dome IP camera with Smart HybridSmart Hybrid Light Light / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 2.8/4 mm point-varifocal (two focal lengths in one lens) lens and 30 m IR night vision. Its point-varifocal lens carries two focal lengths (2.8 mm and 4 mm) - switch between a wide and a closer view from the recorder or app without touching the camera. Motorised pan, tilt, rotate and zoom (PTRZ) let you aim the camera remotely after installation - no ladder work. It records colour down to 0.005 lux and 0 lux with IR. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. Smart HybridSmart Hybrid Light Light uses covert IR by default and switches to white light for colour video and deterrence when a person or vehicle is detected. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2688 × 1520) resolution, 1/3" Progressive Scan CMOS sensor
- Motorised pan, tilt, rotate and zoom (PTRZ) - aim and zoom remotely, no ladder work
- 2.8 mm and 4 mm in one lens (point varifocal) - switch the field of view remotely
- Smart HybridSmart Hybrid Light Light - smart, IR-only and white-light modes
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies people and vehicles, cutting false alarms
- Crystal-clear audio from an arrayed dual microphone
- 120 dB WDR for clear images against strong backlight
- IP67 weatherproof and IK10 vandal-resistant
- Anti-corrosion design (NEMA 4X) for harsh and coastal environments
- Horizontal field of view 99.1° / 79.9°
- MicroSD slot up to 512 GB
- Alarm I/O: 1 input, 1 output (max. 12VDC, 30mA)
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G
Typical Applications
- Shops, offices, schools and receptions - discreet, vandal-resistant dome
- Corridors, entrances and car parks
- Coastal, marine and industrial sites - NEMA 4X anti-corrosion
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- ONVIF-compliant recorders and VMS (Profile S, G)
- PoE+ (802.3at) switches and injectors or a 12 VDC PSU
- Hikvision wall, pole and junction-box brackets for this housing (see datasheet)
What's in the Box
- 1 × Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart HybridSmart Hybrid Light Light AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PTRZ Dome Network Camera with Mic WHITE
- 1 × drill template and fixing screws (where supplied)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart Hybrid Light AcuSense PTRZ Dome Network Camera with Mic WHITE
Specifications as published by Hikvision (22-10-2026) for DS-2CD2143G2-LIPTRZS2UY(2.8/4mm). Where Hikvision lists variants (e.g. -2U, -S), the values for this model apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2CD2143G2-LIPTRZS2UY(2.8/4mm) |
| MPN | DS-2CD2143G2-LIPTRZS2UY(2.8/4mm) |
| EAN | 6942640547870 |
| Brand | Hikvision |
| Hikvision product name | 4 MP AcuSense PTRZ Dome Network Camera |
| Product Type | IP Surveillance Camera |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 346°,tilt: 0° to 75°,rotate: 0° to 344° ,Remote adjustment (Max. 1000 cycles) |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 4 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 99.1°, vertical FOV 58.6°, diagonal FOV 120° 4 mm, horizontal FOV 79.9°, vertical FOV 46.1°, diagonal FOV 93.9° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.1 m to ∞ 4 mm: 1.3 m to ∞ |
| Pixel Density | |
| DORI | 2.8mm: D: 66.5 m, O: 26.4 m, R: 13.3 m, I: 6.6 m 4mm: D: 79.1 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Illuminator | |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | -2U: Mono sound |
| Audio Compression | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -2U: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Web Browser | Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+, Local service: Chrome 91+, Firefox 88+, Edge 91+ |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -2U: Yes, 2 built-in microphones |
| Reset Key | Yes |
| Alarm | -S: 1 input, 1 output (max. 12VDC, 30mA) |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Smart Event | Scene change detection |
| Linkage | notify surveillance center,send email,trigger recording,trigger capture |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 16 W |
| Material | Metal |
| Dimension | Ø121.6 mm × 101 mm (Ø4.79" × 3.98") |
| Package Dimension | 150 mm × 150 mm × 142 mm (5.91" × 5.91" × 5.60") |
| Weight | Approx. 730 g (1.61 lb.) |
| With Package Weight | Approx. 1000 g (2.20 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
Frequently Asked Questions
What lens does the Hikvision DS-2CD2143G2-LIPTRZS2UY have?
2.8/4 mm point-varifocal (two focal lengths in one lens), horizontal field of view 99.1° / 79.9°.
What is the night-vision range?
30 m IR (Smart Hybrid Light: IR, white light or smart mode).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range.
Does it reduce false alarms?
Yes — AcuSense deep-learning analytics classify people and vehicles, so line-crossing and intrusion alarms ignore animals, leaves and rain.
Does it have audio?
Yes — built-in microphone.
How is it powered?
12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 16 W.
Is it suitable for outdoor use?
Yes — IP67 and IK10 vandal-resistant, with NEMA 4X anti-corrosion.
Does it record locally?
Yes — microSD card up to 512 GB, plus NAS and NVR recording.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
Documentation — Hikvision DS-2CD2143G2-LIPTRZS2UY 4MP 2.8/4mm 30m IR Smart Hybrid Light AcuSense PTRZ Dome Network Camera with Mic WHITE
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2CD2143G2-LIPTRZS2UY Data Sheet (official PDF) | Download | |
| Hikvision DS-2CD2143G2-LIPTRZS2UY Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2CD2143G2-LIPTRZS2UY User Manual (official PDF) | Download | |
| Hikvision DS-2CD2143G2-LIPTRZS2UY product page | Web | View on hikvision.com |
| Browse all 4MP Hikvision IP cameras | Web | View IP cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
