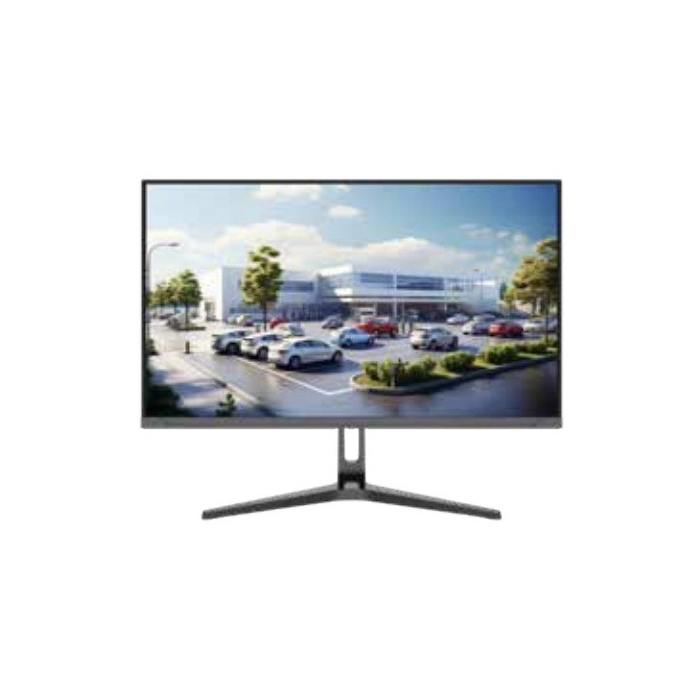

Capture CAP-32LED3-L 32" 24/7 CCTV Monitor BNC In/Out Loop, HDMI/VGA, Speakers
The Capture CAP-32LED3-L is a 32-inch frameless professional CCTV monitor rated for 24/7/365 operation — Full HD 1920 x 1080 with true BNC input/output, HDMI, VGA and built-in speakers.
Direct replacement for the discontinued WBox WBXML32. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester.
Key Features
- BNC in / BNC out (loop-through) — connect multiple devices and loop the video feed onwards
- 31.5-inch 1920 x 1080 (Full HD) frameless LED display
- 24/7/365 continuous operating capability
- HDMI & VGA inputs + 3.5mm audio
- 178° ultra-wide viewing angle
- Two built-in 3W speakers
- Source auto detection & quick touch scalability 16:9/4:3
- Low blue light technology for control-room use
- VESA 75 x 75 wall-mountable, stand included
- Includes HDMI, VGA, audio & power cables + IR remote
- 30-month warranty
Capture CAP-32LED3-L — 32" BNC Frameless LED CCTV Monitor
32-inch frameless professional 24/7/365 Full HD CCTV monitor with BNC in/out loop, HDMI, VGA and built-in speakers. The direct replacement for the discontinued WBox WBXML32.
⚡ True BNC In/Out — the feature installers ask for
Unlike virtually every other 32" monitor on the market, the CAP-32LED3-L has a genuine BNC input and BNC output. The BNC input/output connects multiple devices and allows BNC looping — feed an analogue or HD-over-coax camera/DVR straight in and loop the signal on to a second monitor or recorder, with no converters or baluns required.
Overview
The Capture CAP-32LED3-L (manufacturer part OE-32LED3) is a 32-inch professional surveillance monitor designed to excel in 24/7 video surveillance applications. Delivering Full HD 1920 x 1080 resolution and 16.7 million colours, it displays every detail with precision. HDMI and VGA inputs and a BNC input/output easily accommodate multiple devices and allow BNC looping to a second screen. Source auto detection and quick touch scalability (16:9/4:3) make setup fast, while low blue light technology reduces eye strain during long monitoring shifts. Same-day dispatch from Netview CCTV Leicester with trade pricing on stocked product.
Key Features
- True BNC in / BNC out (loop-through) — connect multiple devices and loop the feed to a second screen; a rarity on 32" monitors and essential for analogue & HD-over-coax CCTV
- 31.5-inch 1920 x 1080 (Full HD) frameless LED panel, 16.7 million colours
- 24/7/365 operating capability — built for continuous surveillance use
- HDMI & VGA inputs + 3.5mm audio in
- 178° ultra-wide viewing angle — clear from anywhere in the control room
- 300 cd/m² brightness, 1200:1 contrast, 8ms response (GTG)
- Source auto detection and quick touch scalability 16:9/4:3
- Low blue light technology for operator comfort
- Two built-in 3W speakers plus audio out
- VESA 75 x 75 wall-mountable; desk stand included
- HDMI, VGA, audio and power cables plus IR remote included
- 30-month warranty; UL listed, CE/FCC/RoHS certified
Typical Applications
- Analogue & HD-over-coax CCTV systems — direct BNC connection with loop-through, no converters
- CCTV control rooms and monitoring walls
- Reception and front-of-house public view displays
- Retail loss-prevention and digital signage
- Spot monitors on DVR/NVR HDMI or BNC outputs
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatibility
- Analogue CCTV systems via BNC in/out loop — connect multiple devices and daisy-chain screens
- Hikvision, HiLook and WBox DVRs / NVRs (HDMI / VGA output)
- PCs and media players (HDMI / VGA)
- VESA 75x75 wall brackets (e.g. PS-FMSAT221)
- Direct replacement for the discontinued WBox WBXML32
What's in the Box
- 1 × Capture CAP-32LED3-L monitor
- 1 × power cable
- 1 × HDMI cable
- 1 × VGA cable
- 1 × audio cable
- 1 × IR remote control
- Stand support, VESA cover, base of stand & screws
- User manuals
📄 Download: Capture CAP-32LED3-L Datasheet (PDF) — full technical specification.
Detailed Specifications — Capture CAP-32LED3-L
Full technical specification for the Capture CAP-32LED3-L (OE-32LED3).
| Identification | |
|---|---|
| SKU | CAP-32LED3-L |
| MPN | OE-32LED3 |
| UPC | 840049312463 |
| Brand | Capture |
| Product Type | CCTV Monitor / Display |
| Display | |
| Screen Diagonal | 31.5" (32" class) |
| Viewable Area (W x H) | 27.5" x 15.4" (698.5mm x 391.16mm) |
| Panel Type | Frameless LED |
| Maximum Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | 720x400; 640x480; 800x600; 1024x768; 1280x1024; 1366x768; 1920x1080 |
| Pixel Pitch | 0.36375 x 0.36375 mm |
| Refresh Rate | 60 Hz |
| Colour Depth | 16.7 million colours |
| Brightness | 300 nits (300 cd/m²) |
| Contrast Ratio | 1200:1 SCR |
| Response Time | 8 ms (GTG) |
| Viewing Angle H/V | 178° / 178° (CR>10) |
| Aspect Ratio | 16:9 (OSD selectable 16:9 or 4:3) |
| Auto Adjust | Yes |
| Connectivity | |
| Connectors | HDMI x1, VGA x1, BNC IN x1, BNC OUT x1, AUDIO OUT x1 |
| Digital Video Input | HDMI up to 1920x1080 |
| Analogue Video In/Out | VGA up to 1920x1080; BNC in/out loop |
| Audio Input | 1 x 3.5mm mini-jack (stereo) |
| Speakers | 2 x 3 watts |
| Power | |
| Power Supply | Internal, AC 100-240V 50/60Hz 1.1A |
| Power Consumption | 34 watts typical |
| Standby | <0.5 watt |
| Physical | |
| Monitor Body Dimensions | 715.2mm x 64mm x 421.2mm (28.1" x 2.5" x 16.5") |
| Dimensions with Stand | 715.2mm x 196.9mm x 518.3mm (28.1" x 7.7" x 20.4") |
| Weight (Cabinet Only) | 5.65kg (12.4 lbs) |
| Weight with Stand | 6.5kg (14.3 lbs) |
| Panel Surface | Matte black |
| Case & Stand Material | Plastic |
| VESA Mounting Pattern | 75mm x 75mm |
| Base/Stand Included | Yes |
| Base Tilt Angle | -5° to 15° |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Operating Humidity | 10-90% |
| General | |
| Duty Rating | 24/7/365 continuous operation |
| Accessories Included | Power cable, HDMI cable, VGA cable, audio cable, IR remote, stand support, VESA cover, screws, base of stand, user manuals |
| Mounting Screw Sizes | Monitor: M4-L14mm x2, M4-L18mm x2; Stand base: M6-L16mm x1 |
| Certifications | CE / FCC / RoHS / HDMI / UL / WEEE / REACH |
| Warranty | 30 months |
Frequently Asked Questions
What is the CAP-32LED3-L?
A 32-inch Capture frameless professional CCTV monitor rated for 24/7/365 operation, Full HD 1920 x 1080.
What makes its BNC connectors special?
Almost no other 32" monitor has genuine BNC connectors. The BNC input/output connects multiple devices and allows BNC looping — connect analogue or HD-over-coax CCTV directly and pass the feed through to a second monitor or DVR, with no converters needed.
What other inputs does it have?
HDMI and VGA, plus a 3.5mm audio input and built-in speakers.
Is it a replacement for the WBox WBXML32?
Yes — the CAP-32LED3-L is the direct replacement for the discontinued WBXML32, with the same 32" Full HD panel, BNC loop and speakers.
Why a 24/7-rated monitor?
Surveillance monitors are built for continuous use, unlike consumer TVs that can fail under constant operation. The CAP-32LED3-L also has low blue light technology for operator comfort.
Are cables included?
Yes — HDMI, VGA, audio and power cables plus an IR remote are all in the box, and it carries a 30-month warranty.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
