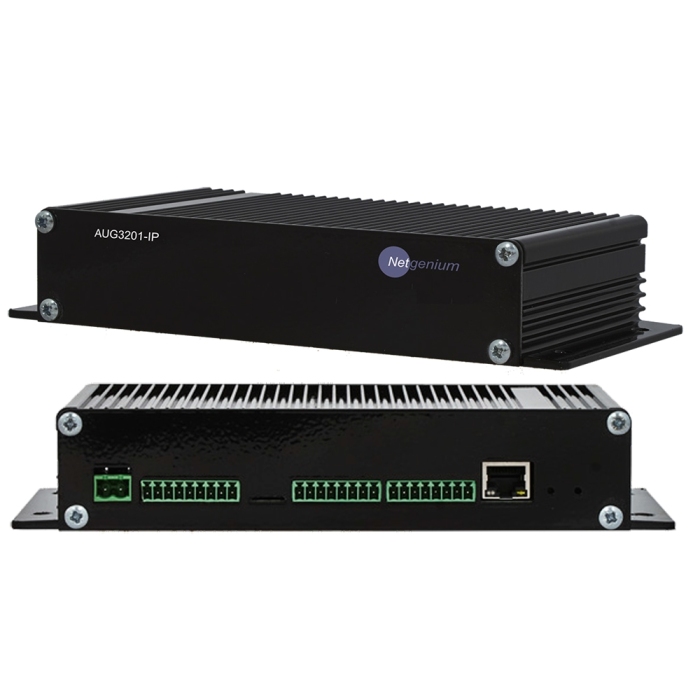

Netgenium AUG3201-IP PoE Powered IP Audio Gateway – To connect to traditional PA systems
Netgenium AUG3201-IP Active IP Audio gateway
Migrate a traditional audio Public Address system to IP with Netgenium IP Audio Gateways and make paging announcements via an IP Telephone system or PC console
application. Designed to extend the life of existing speakers and amplifiers, the AUG3201-IP offers an inexpensive method of adapting your existing PA equipment for use on an IP network.
PoE Powered:
IEEE802.3af PoE OR 25W output using IEEE802.3at PoE+
Supported Codecs: G711 uLaw ,G711 ALaw, PCM Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz
- IP Addressable
- Configuration via web browser
- Line Out audio output
- Low cost single cable deployment (CAT5e or CAT6)
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Tech Specs
Model No
ASP3201-IP
Connectivity
1 No. 10/100 Base TX Ethernet RJ45
Supported Codecs
G711 uLaw, G711 ALaw, PCM
Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz
Onboard I/O
No 4 Flex Inputs (Requires Digital 0v contact)
No 4 Flex Outputs (12V switched –ve)
Flex I/O can be used for local announcements, IP events and PolicyServer control
Power Supply
Power over Ethernet IEEE820.3af
Mechanical
Case Diameter: 203mm
Net Weight: 700g
