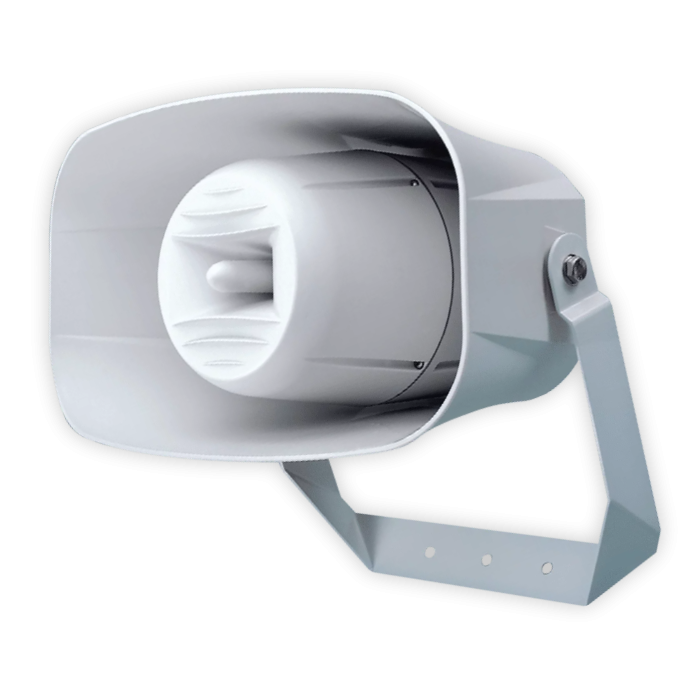

Netgenium ASP7207-IP PoE(10w) PoE+(25w) Wall Mounted IP Music Horn Speaker Int/Ext IP66
The Netgenium ASP7207-IP is an all-round external IP PoE music horn speaker for public address, music streaming, pre-recorded message broadcast and scheduled announcements where both high volume and good sound quality are needed.
- 114 dB SPL at full power with a wide 70 Hz – 16.5 kHz range
- Wall or pole mounted on an aluminium U bracket
- One cable for power, data and audio (PoE / PoE+)
- Nine levels of announcement priority; 4 Flex inputs and 4 Flex outputs
- Works with Netgenium PolicyServer and NGxControl; integrates with CCTV VMS, Hikvision NVRs and SIP / Cisco telephony
Usually dispatched in 2–3 working days. Trade pricing from Netview CCTV Leicester — call 0116 3800 838.
Overview
The Netgenium ASP7207-IP PoE Music Horn Speaker is a great all-round loudspeaker. Very versatile, it is an ideal external speaker for public address, music streaming, pre-recorded message broadcast and scheduled announcements. Wall or pole mounted and offering high-quality audio, it suits outdoor scenarios where high volume and great sound quality are required.
Key Features
- Native IP device – connects straight to the IP network; set up and managed with a web browser
- Power over Ethernet – one cable for power, data and audio; the on-board amplifier is powered by IEEE 802.3af or 802.3at PoE
- Prioritised audio – up to nine announcement priority levels so the most important message always plays
- Flex I/O – four inputs and four outputs, each configurable to play a stored message, switch an output or send an IP event
- Control – add public address, scheduled messaging and music streaming with Netgenium PolicyServer or NGxControl PC software
- Integration – CCTV VMS and monitoring-centre software, Hikvision NVRs and HikCentral, Milestone XProtect, SIP and Cisco Call Manager (G.711); background music from a multicast source
Typical Applications
- Sports grounds, playgrounds and outdoor event spaces
- Large yards, depots and car parks
- External music and announcements for retail and leisure sites
Availability
Supplied direct from Netgenium (UK manufacturer) – usually dispatched in 2–3 working days. Call 0116 3800 838 for project quantities.
Detailed Specifications — Netgenium ASP7207-IP
| Model | ASP7207-IP |
| Brand | Netgenium |
| Type | IP PoE active music horn speaker, internal / external |
| Connectivity | 1 × 10/100 Base-TX Ethernet, RJ45 |
| Effective frequency range (BS EN 60268-5) | 70 – 16,500 Hz |
| SPL @ 1 m, 1 W | 99 dB |
| SPL @ full power | 114 dB |
| Acoustic power (dB-PWL @ 1 W) | 91 / 94 dB |
| Dispersion at 1k / 2 kHz | 70° / 120° horizontal; 110° / 110° vertical |
| Directivity axial Q factor 1k / 2 kHz | 8.5 / 6.5 |
| Supported codecs | G.711 uLaw, G.711 ALaw, PCM |
| On-board I/O | 4 Flex inputs, 4 Flex outputs (12 V switched –ve) |
| Power supply | Power over Ethernet (PoE 10 W / PoE+ 25 W) |
| Dimensions | 442 mm × 260 mm × 287.5 mm |
| Net weight | 5.50 kg |
| Colour / finish | Grey (RAL 7035) |
| Material | ABS plastic with UV inhibitors |
| Mounting | Aluminium U bracket |
Specifications as published by Netgenium (netgenium.co.uk, 11-11-2026).
Frequently Asked Questions
What is the Netgenium ASP7207-IP?
An active IP music horn speaker (wall-mounted) for IP-based public address and background music.
How much power does it deliver?
10W on standard PoE, or 25W on PoE+.
What makes it a 'music' horn?
It's tuned for fuller-range audio than a standard paging horn, so it handles music as well as speech.
Can it go outdoors?
Yes — IP66-rated for internal or external use.
Where is it used?
Outdoor and semi-outdoor areas needing music plus paging.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
