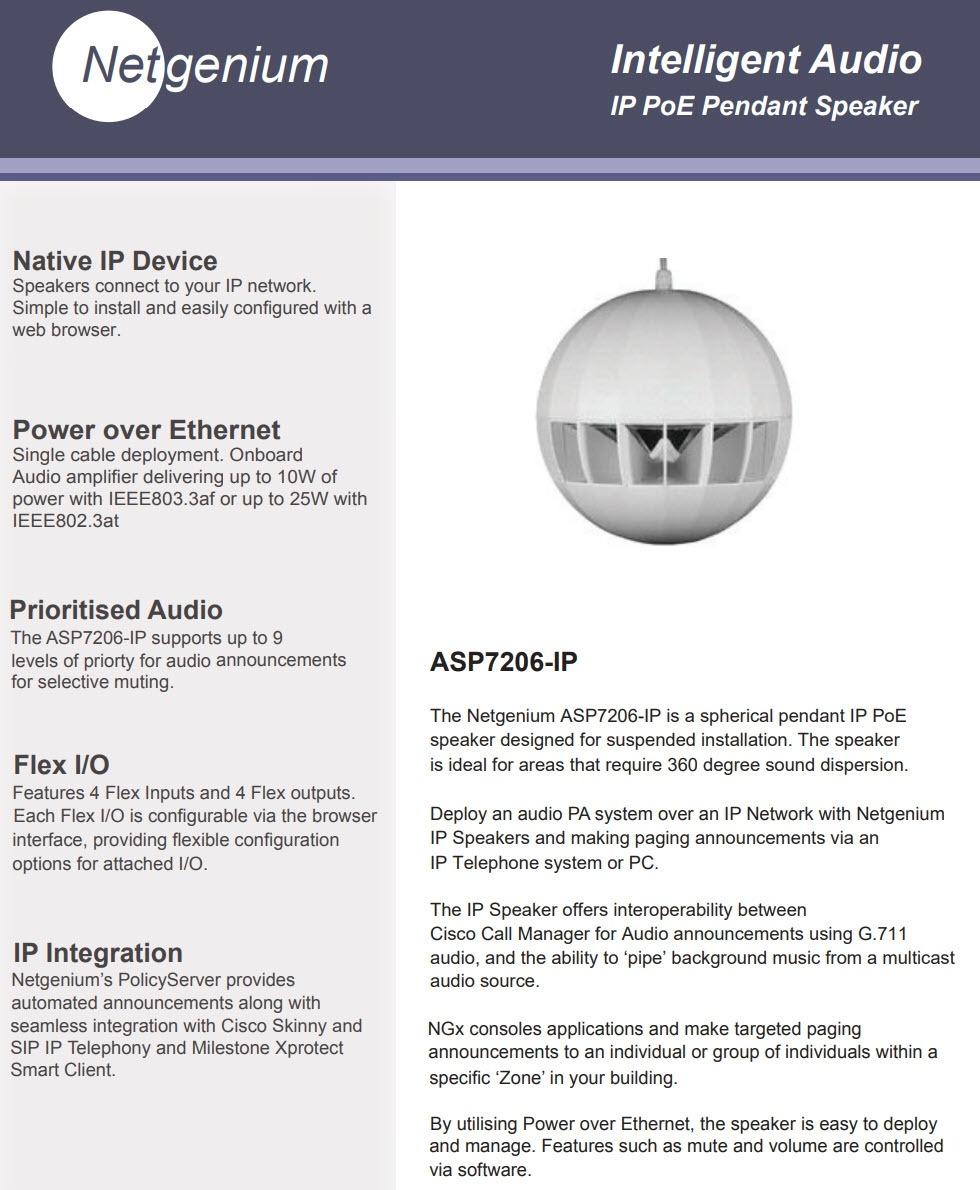

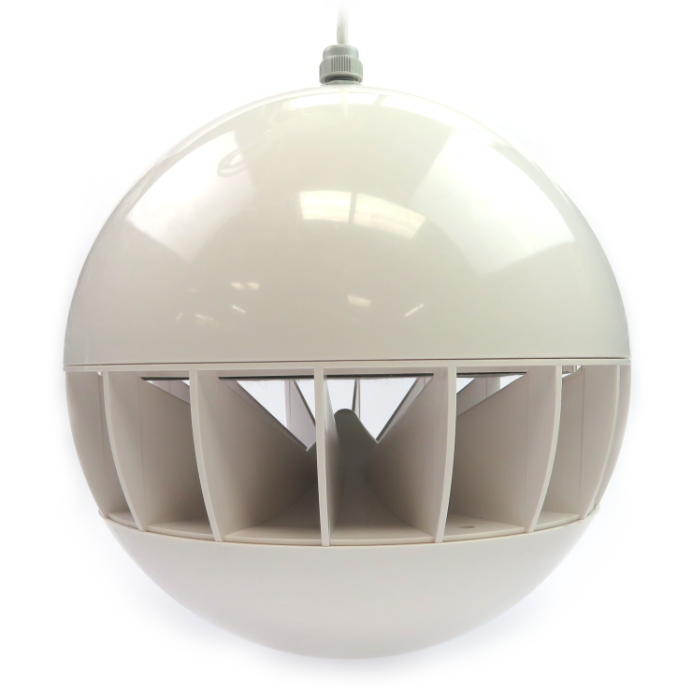

Netgenium ASP7206-IP PoE(10w) PoE+(25w) Suspended Spherical Pendant Speaker
Netgenium ASP7206-IP Active IP Pendant Speaker - INTERNAL use
Designed for suspended installation. The speaker is ideal for areas that require 360 degree sound dispersion
On-board Audio Amplifier delivering
10W output using IEEE802.3af PoE (15.4W) input
25W output using IEEE802.3at PoE+ (30W) input
Deploy an audio PA system over an IP Network with Netgenium IP Speakers and make paging announcements via an IP Telephone system or PC.
Deploy an audio PA system over an IP Network with Netgenium IP Speakers and make paging announcements via an IP Telephone system or PC. The IP Speaker offers interoperability between Cisco Call Manager for Audio announcements using G.711 audio, and the ability to ‘pipe’ background music from a multicast audio source.Integrate speakers with Netgenium’s PolicyServer and NGx consoles applications and make targeted paging announcements to an individual or group of individuals within a specific ‘Zone’ in your building. By utilising Power over Ethernet, the speaker is easy to deploy and manage. Features such as mute and volume are controlled via software.
- Native IP Device Speakers connect to your IP network.
- PoE Powered
- 9 Levels of Audio Priority
- Inputs / Outputs for external devices
- IP Integration
Wall mounted, the speaker can be easily installed in environments such as school corridors and classrooms, reception areas, office meeting rooms, shop floors and waiting rooms
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →

Tech Specs
Model No
ASP7206-IP
Connectivity
1 No. 10/100 Base TX Ethernet RJ45
Electrical
Effective frequency range, Hz (BSEN60268-5): 110 – 18,000
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz: 91
S.P.L. @ Full power Octave Bandwidth, dB: 104
Acoustic Power (dB-PWL@1 watt) 1 kHz, dB: 89/90
Dispersion at 1k/2kHz, Degrees: 360/160
Directivity Axial Q factor, 1 k/2kHz: 2.6/5.6
Supported Codecs
G711 uLaw, G711 ALaw, PCM
Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz
Onboard I/O
No 4 Flex Inputs (Requires Digital 0v contact)
No 4 Flex Outputs (12V switched –ve)
Flex I/O can be used for local announcements, IP events and PolicyServer control
Power Supply
Power over Ethernet IEEE802.3at or IEEE820.3af
Max Power Output: 25W (with IEEE802.3at supply)
Mechanical
Dimensions (front & depth, mm): Ø250
Net Weight: 2.20kg
Colour/Finish: White (RAL9010)
Material: Auto-extinguishing high-density polystyrene
Mounting: 5m cable with safety steel wire
