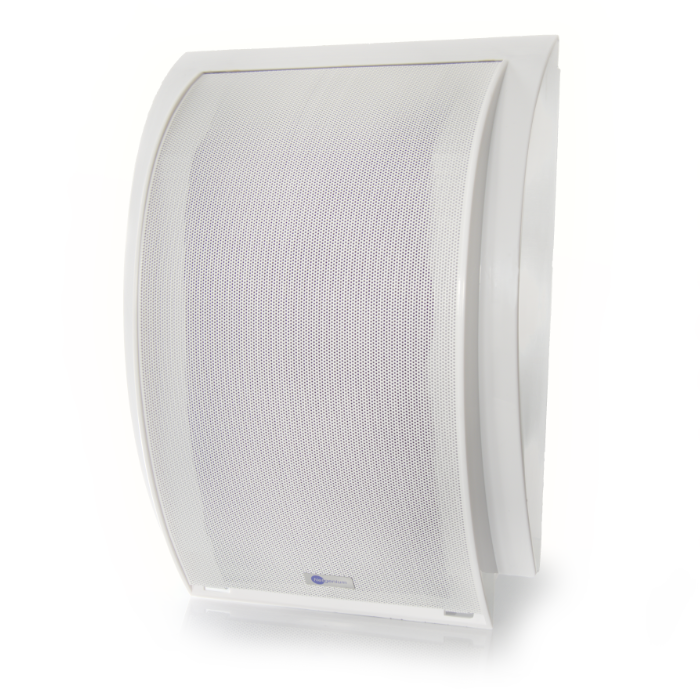

Netgenium ASP7205-IP PoE(10w) Wall Mounted IP Cabinet Speaker
The Netgenium ASP7205-IP is an internal, wall-mounted IP PoE cabinet speaker for public address, music streaming, pre-recorded message broadcast and scheduled announcements in corridors, classrooms, receptions, meeting rooms, shop floors and waiting rooms.
- One cable for power, data and audio (IEEE 802.3af, 10 W)
- 104 dB SPL at full power
- Set up and managed from a web browser
- Nine levels of announcement priority; 4 Flex inputs and 4 Flex outputs
- Works with Netgenium PolicyServer and NGxControl; integrates with CCTV VMS, Hikvision NVRs and SIP / Cisco telephony
Usually dispatched in 2–3 working days. Trade pricing from Netview CCTV Leicester — call 0116 3800 838.
Overview
The Netgenium ASP7205-IP PoE Cabinet Speaker is an internal speaker for public address, music streaming, pre-recorded message broadcast and scheduled announcements. Wall mounted, it installs easily in school corridors and classrooms, reception areas, office meeting rooms, shop floors and waiting rooms.
Key Features
- Native IP device – connects straight to the IP network; set up and managed with a web browser
- Power over Ethernet – one cable for power, data and audio; the on-board amplifier is powered by IEEE 802.3af PoE
- Prioritised audio – up to nine announcement priority levels so the most important message always plays
- Flex I/O – four inputs and four outputs, each configurable to play a stored message, switch an output or send an IP event
- Control – add public address, scheduled messaging and music streaming with Netgenium PolicyServer or NGxControl PC software
- Integration – CCTV VMS and monitoring-centre software, Hikvision NVRs and HikCentral, Milestone XProtect, SIP and Cisco Call Manager (G.711); background music from a multicast source
Typical Applications
- Classroom and corridor announcements, class change and lockdown alerts
- Office, reception and waiting-room paging
- Retail background music and scheduled offers
Availability
Supplied direct from Netgenium (UK manufacturer) – usually dispatched in 2–3 working days. Call 0116 3800 838 for project quantities.
Detailed Specifications — Netgenium ASP7205-IP
| Model | ASP7205-IP |
| Brand | Netgenium |
| Type | IP PoE active wall cabinet speaker, internal use |
| Connectivity | 1 × 10/100 Base-TX Ethernet, RJ45 socket |
| Effective frequency range (BS EN 60268-5) | 160 – 18,000 Hz |
| SPL @ 1 m, 1 W | 96 dB |
| SPL @ full power | 104 dB |
| Acoustic power (dB-PWL @ 1 W) 1k / 2 kHz | 94 / 95 dB |
| Dispersion at 1k / 2 kHz | 180° / 120° |
| Supported codecs | G.711 uLaw, G.711 ALaw, PCM |
| On-board I/O | 4 Flex inputs, 4 Flex outputs (12 V switched –ve) |
| Power supply | Power over Ethernet, IEEE 802.3af |
| Max power output | 10 W (with IEEE 802.3af supply) |
| Dimensions (W × H × D) | 330 × 240 × 90 mm |
| Net weight | 1.15 kg |
| Colour / finish | White |
| Material | ABS moulding with UV inhibitors, steel mesh |
| Mounting | Keyhole and / or screws |
Specifications as published by Netgenium (netgenium.co.uk, 11-11-2026).
Frequently Asked Questions
What is the Netgenium ASP7205-IP?
An active IP cabinet speaker (internal) for IP-based public address, configured via a web browser.
How much power does it deliver?
10W via standard PoE.
How does IP audio work?
Deploy a PA system over your IP network and page from an IP telephone system or PC.
Where is it used?
Internal wall locations needing a compact cabinet-style speaker.
How is it set up?
Via a web browser.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
Documentation & Downloads — Netview CCTV ASP7205-IP
Datasheets and manuals for the Netview CCTV Netgenium ASP7205-IP PoE(10w) Wall Mounted IP Cabinet Speaker. All files hosted by Netview CCTV.
| Document | Format | Link |
|---|---|---|
| Datasheet | Download Datasheet | |
| Configuration Guide | Download Configuration Guide | |
| Configuration Guide | Download Configuration Guide | |
| Configuration Guide | Download Configuration Guide | |
| Document | Download Document | |
| Document | Download Document | |
