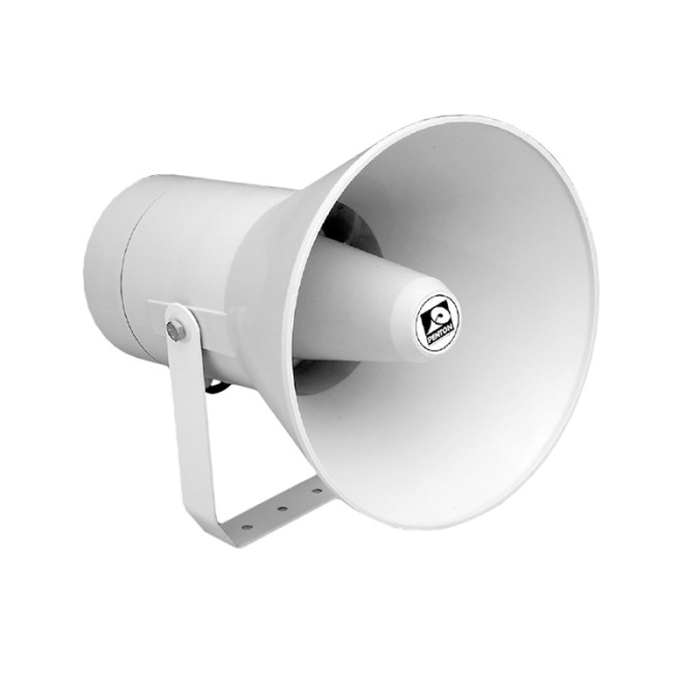

Netgenium ASP7203-IP PoE(10w) PoE+(25w) Wall Mounted IP Horn Speaker Int/Ext IP56
Netgenium ASP7203-IP Active IP Horn Speaker
Simple to install & configure via a web browser
On-board Audio Amplifier delivering:
10W output using Standard PoE
25W output using PoE+
Deploy an audio PA system over an IP Network with Netgenium IP Speakers and make paging announcements via an IP Telephone system or PC. The IP Speaker offers interoperability between Cisco Call Manager for Audio announcements using G.711 audio, and the ability to ‘pipe’ background music from a multicast audio source.Integrate speakers with Netgenium’s PolicyServer and NGx consoles applications and make targeted paging announcements to an individual or group of individuals within a specific ‘Zone’ in your building. By utilising Power over Ethernet, the speaker is easy to deploy and manage. Features such as mute and volume are controlled via software.
- Native IP Device Speakers connect to your IP network.
- PoE Powered
- 9 Levels of Audio Priority
- Inputs / Outputs for external devices
- IP Integration
Application Examples:
Retail Stores, Offices, Warehouses, Railway Stations, Production facolities, Manufacturing Plants, Large Residential Premises, Educational facilities, Schools, Colleges, Universities etc
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →

Tech Specs
Model No
ASP7203-IP
Connectivity
1 No. 10/100 Base TX Ethernet (replaceable integral 2.5mtr category 5e cable with RJ45 plug)
Electrical
Effective frequency range, Hz (BSEN60268-5) 330-8,000
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz 103
S.P.L. @ Full power Octave Bandwidth, dB 118
Acoustic Power (dB-PWL@1 watt) 1 kHz, dB 101/100
Dispersion at 1k/2kHz, Degrees 110/70
Directivity Axial Q factor, 1 k/2kHz 6.20/15.1
Supported Codecs
G711 uLaw, G711 ALaw, PCM
Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz
Onboard I/O
No 4 Flex Inputs (Requires Digital 0v contact)
No 4 Flex Outputs (12V switched –ve)
Flex I/O can be used for local announcements, IP events and PolicyServer control
Power Supply
Power over Ethernet: IEEE802.3af or IEEE820.3at
Max Power Output: 25W (with IEEE802.3at supply)
Mechanical
Dimensions (Front & Depth): 220mm x 158mm x 233mm
Net weight: 1.35kg
Colour: RAL9013
Material: ABS plastic housing with UV inhibitors
Mounting: Stainless Steel U Bracket
IP Rating: 56
