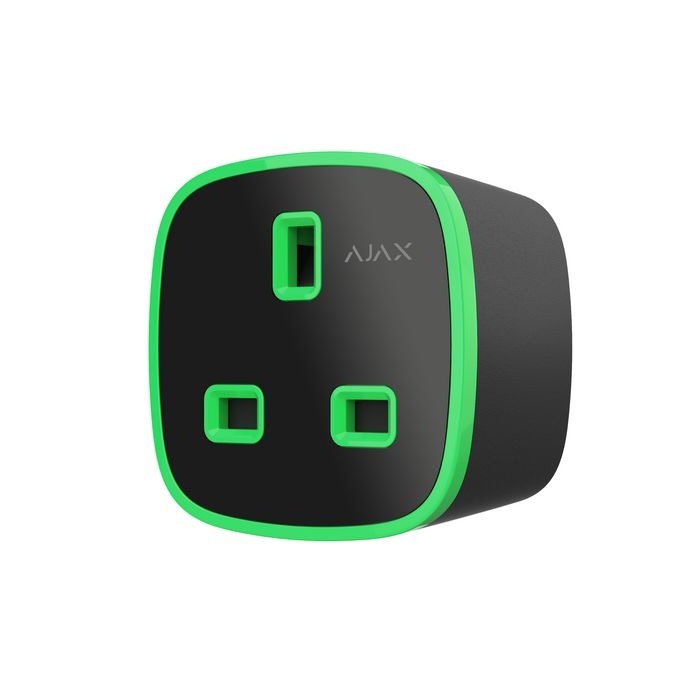

Ajax SmartPlug (Socket type G) Jeweller Wireless Smart Plug with Energy Monitor - BLACK
The Ajax SmartPlug (Socket type G) Jeweller in black is a UK 3-pin smart plug with energy consumption monitoring — switch lamps, heaters and appliances remotely from the Ajax app or an Ajax Button, and see live power use accurate to 1 W.
It joins any Ajax hub over two-way encrypted Jeweller radio and runs automation scenarios — e.g. switch a lamp on when an alarm triggers, or power an appliance on a schedule.
Key Features
- Controls the power of electric appliances remotely via app and Button
- Monitors electric power consumption accurate to 1 W
- Operates in bistable and pulse modes
- Executes automation scenarios (by alarm, schedule or button press)
- Adjustable current threshold in 1 A increments
- Built-in functional button for manual on/off
- UK type G plug, up to 13 A / 3 kW resistive load
Ajax SmartPlug (Socket type G) Jeweller — Smart Plug with Energy Monitor, Black
Remote control, 1 W energy monitoring and automation for any UK mains appliance — in a black finish to match black Ajax devices.
Overview
The Ajax SmartPlug (Socket type G) Jeweller brings ordinary mains appliances into an Ajax security system. Plug it into any UK socket, enrol it to the hub by QR code, and the connected lamp, heater, router or appliance can be switched from the Ajax app, an Ajax Button, or automatically by a scenario.
Built-in energy monitoring reports power use accurate to 1 W, so customers can see what an appliance draws and spot faults. An adjustable current threshold (1 A steps) and voltage and temperature protection cut power automatically if a load misbehaves.
Typical security uses: switch lights on when the alarm triggers or at dusk for presence simulation, power-cycle a router or NVR remotely, or switch off a heater when the system is armed. The black version is ordered in on request; the white SmartPlug is stocked for same-day dispatch from Netview CCTV Leicester.
Key Features
- Controls the power of electric appliances remotely via the Ajax app and Ajax Button
- Monitors electric power consumption accurate to 1 W
- Operates in bistable (on/off) and pulse modes
- Executes automation scenarios — by alarm, by schedule, or by button press
- Adjustable current threshold in 1 A increments (1–16 A, default 13 A)
- Voltage protection (184–253 V) and over-temperature protection
- Built-in functional button for manual control
- Two-way encrypted Jeweller radio, up to 1,100 m in open space
Typical Applications
- Lights on alarm — switch a lamp on when an intruder alarm activates
- Presence simulation — scheduled lamps while the property is empty
- Remote reboot of routers, NVRs and network equipment
- Energy monitoring of heaters, fridges and other appliances
- Safety cut-off — switch heaters or irons off when the system is armed
Compatible Ajax Devices
- Ajax hubs — Hub 2, Hub 2 Plus, Hub Hybrid
- Ajax ReX / ReX 2 range extenders
- Ajax Button / DoubleButton for manual control
- Ajax app (iOS / Android / desktop) and Ajax PRO
What's in the Box
- 1 × Ajax SmartPlug (Socket type G) Jeweller, black
- 1 × quick start guide
Detailed Specifications — Ajax SmartPlug (Socket type G) Jeweller 32631 Black
| Identification | |
|---|---|
| SKU | 32631 |
| MPN | 32631.34.BL1 |
| EAN | 4823114007309 |
| Brand | Ajax |
| Colour | Black |
| Product Type | Smart plug with energy monitoring |
| Electrical | |
| Plug / Socket | Type G (UK 3-pin) |
| Max Load Current | 13 A continuous |
| Max Load Power | 3 kW resistive at 230 V |
| Inductive / Capacitive Load | Up to 8 A |
| Current Protection | Adjustable 1–16 A in 1 A steps (default 13 A) |
| Voltage Protection | 184–253 V |
| Temperature Protection | Above 95°C |
| Energy Monitoring | Accurate to 1 W |
| Operating Modes | Bistable and pulse |
| Own Power Consumption | Up to 1.5 W |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller (two-way, encrypted) |
| Open-space Range | Up to 1,100 m |
| Max Effective Radiated Power | Up to 20 mW |
| General | |
| Installation | Indoor, plugs into a UK mains socket |
| Control | Ajax app, Ajax Button, automation scenarios, built-in button |
| Compatible Hubs | Hub 2, Hub 2 Plus, Hub Hybrid (and via ReX / ReX 2) |
| Availability | Ordered in on request (white version stocked) |
Frequently Asked Questions
What is the Ajax SmartPlug?
A UK type G smart plug (Ajax Socket type G Jeweller) that lets you switch a mains appliance from the Ajax app, an Ajax Button or an automation scenario, and monitors its energy use to 1 W.
Is the black version in stock?
The black SmartPlug is ordered in from our supplier when you order, so allow a little extra time for dispatch. The white version is held in stock for same-day dispatch.
How much load can it switch?
Up to 13 A continuous / 3 kW resistive; inductive or capacitive loads up to 8 A. The current cut-off threshold is adjustable from 1 to 16 A.
Can it switch lights when the alarm goes off?
Yes — set an automation scenario so the plug switches on when an alarm triggers, or on a schedule for presence simulation.
Does it need a hub?
Yes. It enrols to an Ajax hub (Hub 2, Hub 2 Plus, Hub Hybrid) over Jeweller radio, up to 1,100 m in open space.
Documentation — Ajax SmartPlug (Socket type G) Jeweller
| Document | Format | Link |
|---|---|---|
| Ajax Socket (type G) user manual | Web | View manual |
| Build a complete Ajax system | Web | Ajax Kit Builder |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — UK Ajax stockist (Leicester). Trade pricing: 0116 3800 838 or [email protected].
