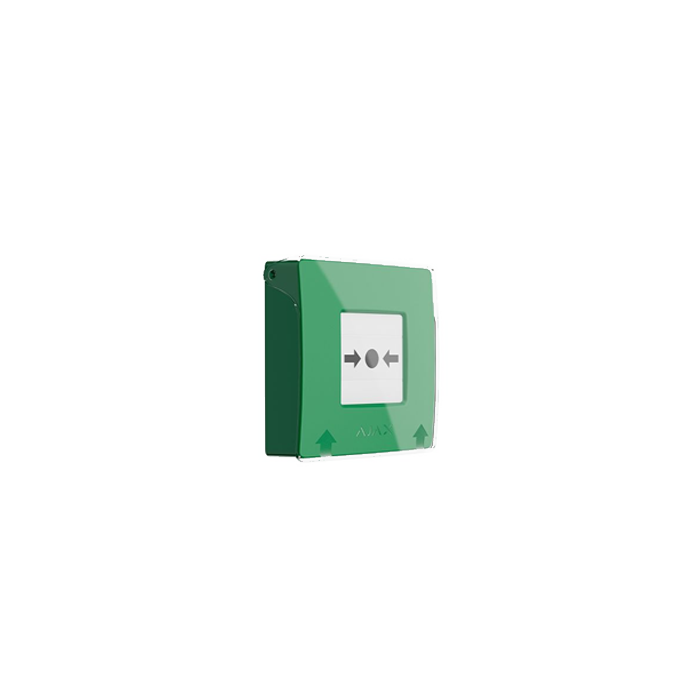

Ajax 87639 ManualCallPoint (Green) Jeweller - EN54 Fire Alarm Call Point
Ajax 87639 ManualCallPoint (Green) Jeweller - EN54Ajax EN54 Fire Protection FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Alarm Call Point | netviewcctv.co.uk
The Ajax ManualCallPoint Jeweller series revolutionises emergency response mechanisms with its wireless resettable button that features programmable scenarios for both safety and convenience. Available in four distinct colours - Blue, Green, Yellow, and White - each ManualCallPoint Jeweller variant is designed to seamlessly integrate into any environment, from educational institutions to industrial premises. With lightning-fast command execution, the ManualCallPoint triggers automation scenarios within seconds, ensuring immediate action during critical moments. From de-energizing facilities to unlocking exits and activating emergency lighting, this device is a pivotal part of a comprehensive safety system, offering both functionality and peace of mind. The resilient button mechanism, designed for over 500 presses, guarantees reliability when it matters most. Coupled with the smart Ajax ecosystem for advanced supervision and Jeweller radio communication for secure, encrypted interactions, the ManualCallPoint Jeweller ensures stable performance for years, making it an indispensable asset for any Ajax-enabled security system.
- Wireless Operation
- Programmable scenarios for automated actions
- Resilient Button Mechanism
- Remote Control and Configuration: Offers remote control and configuration capabilities, providing convenience and efficiency.
- Extended Battery Life: Operates up to 7 years on included batteries, with low power consumption of up to 0.18W, ensuring long-term reliability without frequent maintenance
- Tamper Alarm: Equipped with a tamper alarm when mounted into the Case, enhancing security against unauthorised access or tampering.
- Comprehensive Compatibility: Compatible with various Ajax hubs, including Hub Hybrid (2G) and Hub Hybrid (4G), ensuring seamless integration into existing systems.
- Smart Automation: Capable of activating emergency lights, controlling ventilation systems, opening electric locks, and more, through one press, regardless of the enclosure colour.
- Advanced FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Alarm System Integration: In FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Alarm mode, triggers the built-in sirens of all fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems detectors in the system, facilitating rapid evacuation and response.
- Informative Notifications: Delivers data-rich notifications and critical alerts through Ajax apps, keeping users and security companies informed in real-time.
Ajax Systems Product Information Page : Ajax EN54 ManualCallPoint Jeweller Product Information
Ajax Systems Product Technical Specifications : Ajax EN54 ManualCallPoint (Green) Jeweller Technical Specifications
Ajax ManualCallPoint Jeweller – Wireless Manual Fire Alarm Call Point
The Ajax ManualCallPoint Jeweller is a wireless addressable resettable button specifically designed for manual fire alarm activation. Certified to EN 54-11 and EN 54-25 standards, the red variant defaults to Fire Alarm mode – pressing it immediately triggers the built-in sirens of all connected fire detectors, sends an alarm to the monitoring station, and activates any configured automation scenarios.
Instant Fire Alarm Activation
In a fire emergency, every second counts. Lifting the transparent protective lid and pressing the frangible element activates the alarm instantly. All connected Ajax fire detectors sound their built-in sirens simultaneously, while users and the monitoring station receive immediate notifications via the Ajax app. The alarm remains active until the button is reset using the bundled special key – a deliberate design choice that prevents premature silencing.
Programmable Automation Scenarios
Beyond sounding alarms, the ManualCallPoint can trigger up to 64 automation scenarios configured through the EN54 Fire Hub Jeweller. A single press can de-energise the building via WallSwitch, unlock emergency exits via Relay, activate LED evacuation signage via I/O Module, and switch on emergency lighting – all within seconds of activation.
Reliable Mechanism Built for Emergencies
The button mechanism is deliberately simplified to a few solid parts, minimising any risk of mechanical failure during a critical moment. Designed for over 500 activations throughout its lifecycle, with Ajax testing 100% of production during manufacturing. The device is powered by pre-installed CR123A batteries providing up to 7 years of operation.
Supervised IoT Device
Unlike conventional manual call points that sit untested between fire drills, the ManualCallPoint exchanges data with the CIE every minute via the encrypted Jeweller protocol. If the button develops a fault, the system notifies the security company and users immediately – specifying which device on which premises has the issue. No periodic testing by triggering is required.
What's in the Box
ManualCallPoint (Red) Jeweller, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), special tool (key), transparent protective lid, installation kit, and quick start guide.
