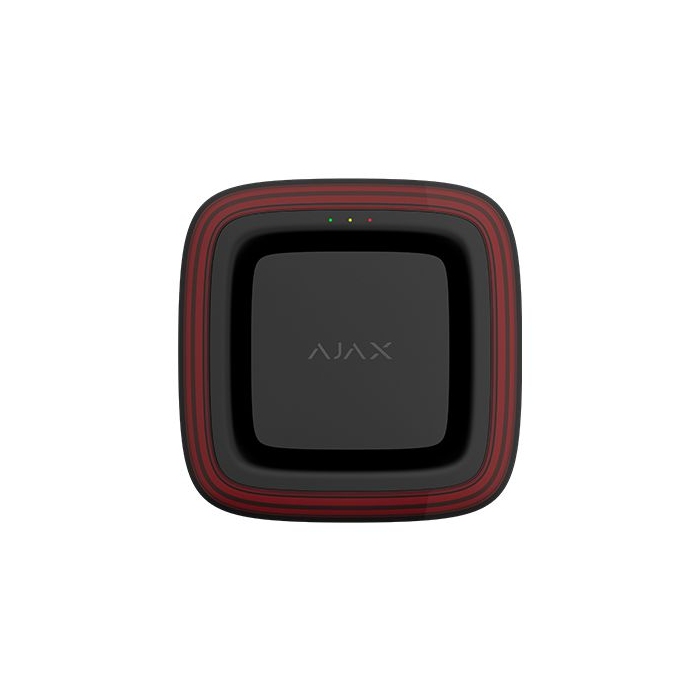

Ajax En54 118600 Fireprotect (Sounder/Vad) - Wireless Fire Alarm Sounder + Visual Alarm Device BLACK
Ajax En54Ajax EN54 Fire Protection 118600 Fireprotect (Sounder/Vad) - Wireless FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Alarm Sounder + Visual Alarm Device BLACK
Wireless fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounder combined with a visual alarm device (VAD).
EN54Ajax EN54 Fire Protection FireProtect Jeweller sounders and VADs deliver instant audible, visual, or combined fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm alerts in full compliance with EN 54 standards. The devices support both wall and ceiling mounting. Engineered for installation efficiency, they feature built-in wireless communicators and can be mounted in minutes without enclosure disassembly. Setup, configuration, and testing are handled in intuitive Ajax apps. Maintenance is just as simple, with real-time device monitoring and early low-battery notifications.
-
Alarm type: acoustic and light. A sounder and LED frame
-
Sound volume: from 65 to XX dB at a distance of 1 m 3.3 ft. Adjusted by a PRO or user with admin rights in an Ajax app
-
Sound pattern: 32 tones
-
Flash frequency: 90 ms ON / 1,910 ms OFF (cycle duration: 2,000 ms; frequency: 0.5 Hz)
-
Dimensions: 145 × 145 × 51 mm
-
Two-way communication
-
Advanced sabotage protection
-
Block encryption featuring a dynamic key
-
Instant notifications
-
Remote control and configuration in Ajax apps
Ajax Systems Product Information Page : Ajax EN54 FireProtect Jeweller sounders and VADs Product Information
Ajax Systems Product Technical Specifications : Ajax EN54 FireProtect (Sounder/VAD) Jeweller Technical Specifications
Ajax EN54 FireProtect (Sounder/VAD) Jeweller – Wireless Fire Sounder with Visual Alarm Device
The Ajax EN54 FireProtect (Sounder/VAD) Jeweller combines a powerful fire alarm sounder with an EN 54-23 certified visual alarm device (VAD) in one wireless unit. This dual-function device provides both audible and visual fire alerting, making it essential for environments where hearing-impaired occupants may be present, or where high ambient noise levels could mask audible-only alarms.
Combined Audible + Visual Alerting
The sounder delivers up to 100 dB at 1 metre with 32 selectable EN 54-3 compliant alarm patterns. The integrated visual alarm device produces a bright strobe flash at 0.5 Hz (90 ms ON / 1,910 ms OFF), certified to EN 54-23 standards. Both audible and visual alerts synchronise automatically across all system devices for simultaneous, unified emergency notification throughout the building.
Versatile Installation
IP54 rated for indoor and outdoor use with a wide operating temperature range of -10°C to +60°C. Recommended mounting height is up to 3 metres on ceilings and 2.4 metres on walls for optimal coverage. Ideal for corridors, open-plan offices, stairwells, lobbies, car parks, assembly halls, and any area requiring accessible fire alerting.
Compliance-Ready
Full certification to EN 54-3 (audible), EN 54-23 (visual), and EN 54-25 (radio) standards. The combined sounder/VAD meets BS 5839 and Building Regulations requirements for inclusive fire alarm notification in the UK.
What's in the Box
EN54 FireProtect (Sounder/VAD) Jeweller, 4 × CR123A batteries (pre-installed), SmartBracket mounting panel, installation kit, and quick start guide. Available in White, Black, or Red.
