Ajax EN54 119919 FireProtect (Smoke/Sounder) - Wireless Smoke Detector with Fire Sounder WHITE
Ajax EN54Ajax EN54 Fire Protection 119919.276.WH1 FireProtect Smoke & Sounder White | Wireless Combined Detector WHITE
Wireless addressable point smoke detector combined with a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounder.
EN54Ajax EN54 Fire Protection FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable long-range radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables - installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.
- Two-way communication
- Advanced sabotage protection
- Block encryption featuring a dynamic key
- Instant notifications
- Remote control and configuration in Ajax apps
- Alarm type: acoustic
- Sound volume: up to 95 dB at a distance of 1 m 3.3 ft. Adjusted by a PRO or user with admin rights in an Ajax app
- Sound pattern: 32 tones
- Sound synchronization: An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE
- Alarm annunciation test: An audible alarm check to ensure the fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm is clearly audible on the premises
Ajax Systems Product Information Page : Ajax EN54 FireProtect Jeweller detectors Product Information
Ajax Systems Product Technical Specifications : Ajax EN54 FireProtect (Smoke/Sounder) Jeweller Technical Specifications
Ajax Fire HubAjax Fire Hub Jeweller EN54 — UK Installer Guide Jeweller — UK Installer Guide
Spec, sizing, commissioning and the full Ajax Jeweller fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems ecosystem (Hub, ReX, FireProtect, manual call points) for UK BS 5839-1 / EN54Ajax EN54 Fire Protection installs.
Ajax FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems vs Intruder — UK Compliance Guide
How to specify combined Ajax fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems and intruder systems for UK BS 5839-1, PD 6662 and EN 50131 Grade 2 — which panel does what, and which devices belong on each side.

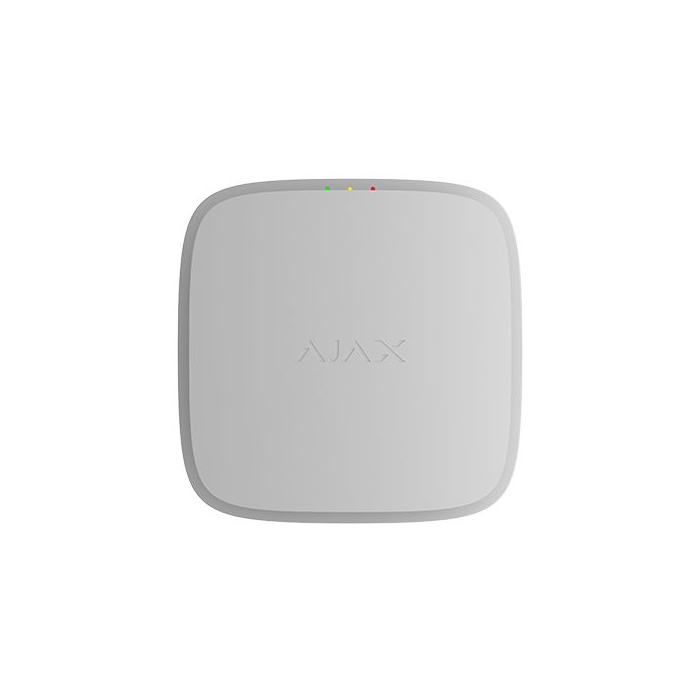

Ajax EN54 FireProtect (Smoke/Sounder) Jeweller – Wireless Smoke Detector with Built-in Sounder
The Ajax EN54 FireProtect (Smoke/Sounder) Jeweller is an all-in-one wireless addressable smoke detector and fire alarm sounder. Certified to EN 54-3, EN 54-12, and EN 54-25 standards, it combines Ajax's patented smoke chamber technology with a powerful integrated sounder, delivering both early fire detection and immediate audible alerting from a single device.
Advanced Smoke Detection + Powerful Sounder
The patented smoke chamber with dual-spectrum optical sensor (blue and infrared LEDs) accurately identifies smoke particles while the HazeFlow 2 algorithm filters out false triggers from dust, steam, and vapour. When a genuine fire is detected, the built-in sounder activates at up to 95 dB following an EN 54-3 compliant temporal pattern. Sounders across the entire system synchronise automatically for simultaneous, unmistakable alerting throughout the building.
Cost-Effective Two-in-One Solution
By integrating detection and alerting in one device, the Smoke/Sounder variant reduces installation time, device count, and overall system cost compared to separate detector and sounder installations. This makes it particularly attractive for projects where budget efficiency matters without compromising on safety standards compliance.
Reliable & Secure
Jeweller encrypted radio protocol provides up to 1,700 m range with two-way confirmed communication. The detector operates 24/7 and features dual tamper protection. Pre-installed CR123A batteries deliver up to 5 years of operation with advance low-battery alerts via Ajax apps.
What's in the Box
EN54 FireProtect (Smoke/Sounder) Jeweller, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), installation kit, and quick start guide. Available in White or Black.
