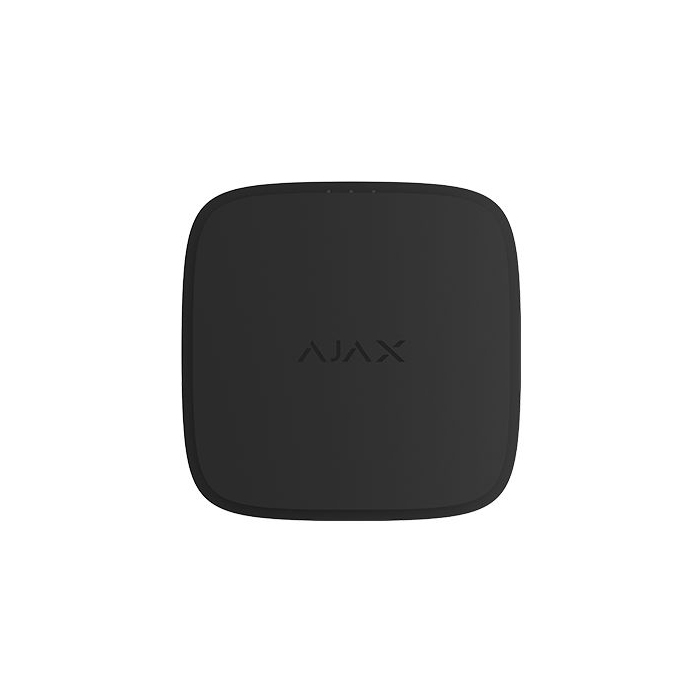

Ajax EN54 119916 FireProtect (Heat/Sounder) - Wireless Heat Detector with Fire Sounder - BLACK
Ajax 119916.274.BL1 EN54Ajax EN54 Fire Protection FireProtect (Heat/Sounder) - Wireless Heat Detector with FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Sounder - BLACK
Wireless addressable point heat detector combined with a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounder.
EN54Ajax EN54 Fire Protection FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable long-range radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables - installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.
- Alarm type: acoustic
- Sound volume: up to 95 dB at a distance of 1 m 3.3 ft. Adjusted by a PRO or user with admin rights in an Ajax app
- Sound pattern: 32 tones
- Sound synchronization: An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE
- Alarm annunciation test: An audible alarm check to ensure the fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm is clearly audible on the premises
- Two-way communication
- Advanced sabotage protection
- Block encryption featuring a dynamic key
- Instant notifications
- Remote control and configuration in Ajax apps
Ajax Systems Product Information Page : Ajax EN54 FireProtect Jeweller detectors Product Information
Ajax Systems Product Technical Specifications : Ajax EN54 FireProtect (Heat/Sounder) Jeweller Technical Specifications
Ajax Fire HubAjax Fire Hub Jeweller EN54 — UK Installer Guide Jeweller — UK Installer Guide
Spec, sizing, commissioning and the full Ajax Jeweller fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems ecosystem (Hub, ReX, FireProtect, manual call points) for UK BS 5839-1 / EN54Ajax EN54 Fire Protection installs.
Ajax EN54 FireProtect (Heat/Sounder) Jeweller – Wireless Heat Detector with Built-in Sounder
The Ajax EN54 FireProtect (Heat/Sounder) Jeweller combines precision wireless heat detection with a powerful built-in fire alarm sounder in a single compact device. Certified to EN 54-3, EN 54-5, and EN 54-25 standards, this dual-function detector is ideal for commercial environments where both detection and audible alerting are required from one point.
Dual-Function Design
Two precision thermistors detect both rapid temperature rise and fixed temperature threshold exceedance, ensuring reliable fire detection. When an alarm is triggered, the built-in sounder produces an audible alert of up to 85 dB following an EN 54-3 compliant temporal pattern. All sounders across the system are automatically synchronised to activate simultaneously, ensuring a clear and unmistakable alarm throughout the premises.
Wireless Excellence
The detector communicates with the EN54 Fire Hub Jeweller CIE via the encrypted Jeweller radio protocol at distances up to 1,700 metres in open space. Two-way communication with block cipher encryption prevents spoofing and interference. The detector is always active, providing 24/7 fire protection regardless of the security system's armed/disarmed state.
Installer-Friendly
Pre-installed CR123A batteries provide up to 5 years of operation with advance low-battery notifications. The SmartBracket mounting panel enables 5-minute installation with up to 90° rotation for optimal positioning. All configuration is handled through the intuitive Ajax apps – no complex programming required.
What's in the Box
EN54 FireProtect (Heat/Sounder) Jeweller, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), installation kit, and quick start guide. Available in White or Black.
