Ajax En54 119917 Fireprotect (Heat) - Wireless Point Heat Detector WHITE
Ajax En54Ajax EN54 Fire Protection 119917 Fireprotect (Heat) - Wireless Point Heat Detector WHITE | netviewcctv.co.uk
Wireless addressable point heat detector
EN54Ajax EN54 Fire Protection FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable long-range radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables - installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.
- Two-way communication
- Advanced sabotage protection
- Block encryption featuring a dynamic key
- Instant notifications
- Remote control and configuration in Ajax apps
- LED indication: red, yellow, green
- Tamper button: Fault notification when an attempt is made to remove the device from the mounting panel
- Lock for SmartBracket: to secure the device on the SmartBracket mounting panel. When locked, the lock secures the device and prevents it from being removed without a special tool
- Protection against spoofing: device authentication
- Connection loss detection: after 36 s. Detection time depends on Jeweller settings
Ajax Systems Product Information Page : Ajax EN54 FireProtect Jeweller detectors Product Information
Ajax Systems Product Technical Specifications : Ajax EN54 FireProtect (Heat) Jeweller Technical Specifications
Ajax Fire HubAjax Fire Hub Jeweller EN54 — UK Installer Guide Jeweller — UK Installer Guide
Spec, sizing, commissioning and the full Ajax Jeweller fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems ecosystem (Hub, ReX, FireProtect, manual call points) for UK BS 5839-1 / EN54Ajax EN54 Fire Protection installs.

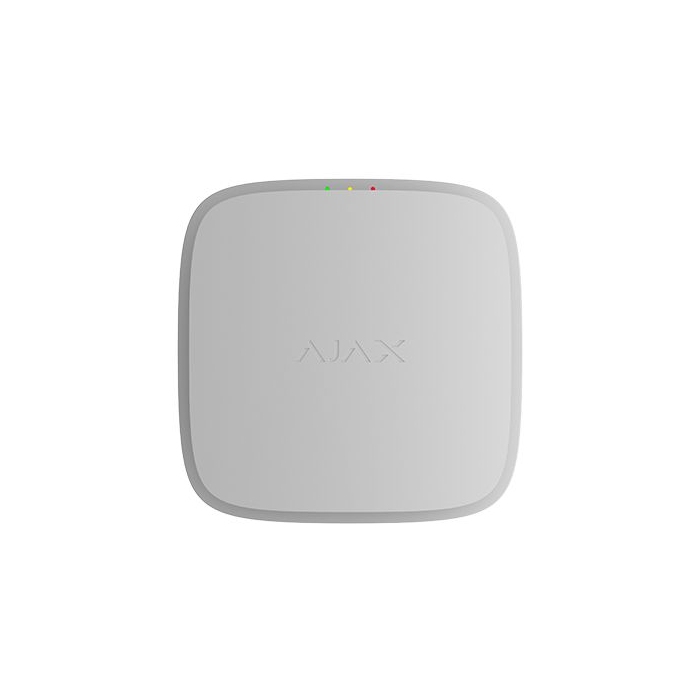

Ajax EN54 FireProtect (Heat) Jeweller – Wireless Point Heat Detector
The Ajax EN54 FireProtect (Heat) Jeweller is a wireless addressable point heat detector certified to EN 54-5 and EN 54-25 standards. Designed for commercial and municipal fire alarm systems, this detector uses two precision thermistors to reliably detect fires through rapid temperature rise or when ambient temperature exceeds a fixed threshold.
Precision Heat Detection
The detector features two built-in thermistors providing dual-mode heat sensing. It supports multiple EN 54 compliant sensor modes including A1R, A1S, BR, BS, CR, and CS, allowing installers to select the optimal detection profile for each environment. This makes it suitable for kitchens, boiler rooms, workshops, and other areas where smoke detectors may produce false alarms but heat detection is essential.
Reliable Wireless Communication
Using Ajax's proprietary Jeweller radio protocol, the detector maintains a secure two-way connection with the EN54 Fire Hub Jeweller CIE at distances up to 1,700 metres in open space. All communication is encrypted with block cipher and dynamic key technology, preventing spoofing and jamming. The system confirms alarm delivery in line with EN 54-21 requirements.
Long Battery Life & Easy Maintenance
Powered by two pre-installed CR123A batteries providing up to 6 years of operation, the detector requires minimal maintenance. Low battery warnings are sent well in advance through Ajax apps and on-device LED/audible indicators. Battery replacement is quick and tool-free via accessible battery covers – no need to remove or disassemble the detector.
Rapid Installation
The detector mounts in approximately 5 minutes using the SmartBracket panel, which allows up to 90° rotation for perfect LED alignment after mounting. Simply scan the QR code in the Ajax app to add the device, assign it to a room and fire zone, and configure settings through the intuitive interface.
What's in the Box
EN54 FireProtect (Heat) Jeweller, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), installation kit, and quick start guide. Available in White or Black.
