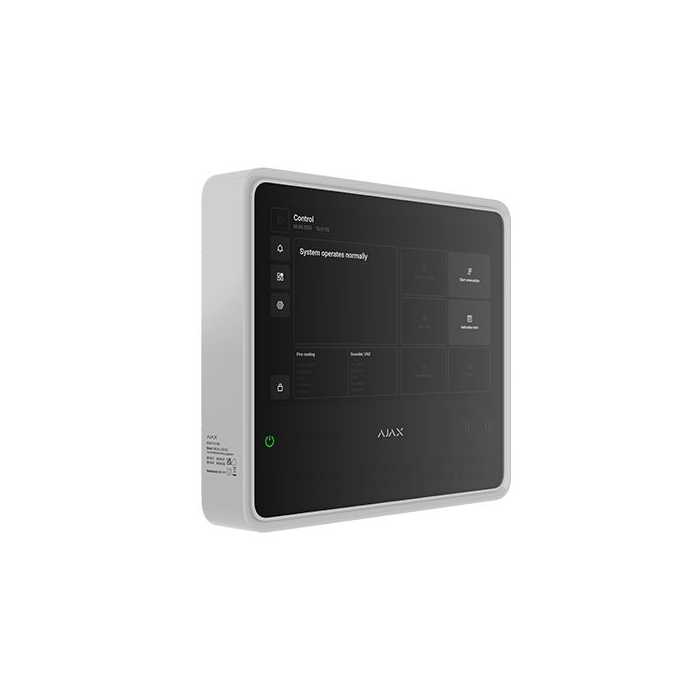

Ajax EN54 125732 Fire Hub Jeweller - Wireless Control & Indicating Equipment - WHITE
Ajax EN54Ajax EN54 Fire Protection 125732.315.WH FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Hub wireless control and indicating equipment in white. EN54Ajax EN54 Fire Protection-25 certified CIE panel for commercial fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm systems.
Introducing EN54Ajax EN54 Fire Protection FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems Hub Jeweller, Ajax's touchscreen CIE designed for all-around management of a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems safety system. It's easy to install, simple to use, and doesn't require much upkeep. Built-in communicators and a fully wireless device connection allow the system to be quickly deployed and connected to monitoring stations through Ajax apps. With its large touch screen and intuitive interface, the CIE provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation.
The CIE also supports EN 50131 (Grade 2) intrusion protection, video surveillance, and automation devices, making it a unified solution for commercial and municipal sites. Each alarm can be supported by visual verification, which helps the facility staff in responding to the emergency.
- One device for many use cases: fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems safety, intrusion protection, video surveillance, and automation within a single system
- Best-in-class wireless connectivity that easily outperforms wired alternatives
- User-centric system control and management via the CIE's touch screen and Ajax apps, on-site or remotely
- Hassle-free installation with all communicators built in - no enclosure disassembling or programming
- Intuitive system management via a big touch screen
- All-in-one solution
- Visual verification of alarms
- Fast and secure authentication
- Sabotage protection
- Quick installation and easy maintenance
Ajax Systems Product Full Information Page : Ajax EN54 Fire Hub Jeweller Product Information
Ajax Systems Product Technical Specifications Page: Ajax EN54 Fire Hub Jeweller Technical Specifications
Â
Ajax Fire HubAjax Fire Hub Jeweller EN54 — UK Installer Guide Jeweller — UK Installer Guide
Spec, sizing, commissioning and the full Ajax Jeweller fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems ecosystem (Hub, ReX, FireProtect, manual call points) for UK BS 5839-1 / EN54Ajax EN54 Fire Protection installs.
Ajax FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems vs Intruder — UK Compliance Guide
How to specify combined Ajax fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems and intruder systems for UK BS 5839-1, PD 6662 and EN 50131 Grade 2 — which panel does what, and which devices belong on each side.
Ajax EN54 Fire Hub Jeweller – Wireless Fire Alarm Control Panel (CIE)
The Ajax EN54 Fire Hub Jeweller is a next-generation wireless control and indicating equipment (CIE) that brings professional-grade fire alarm management into a single, elegant touchscreen panel. Certified to EN 54-2, EN 54-4, EN 54-13, EN 54-21, and EN 54-25 standards, this control panel is purpose-built for commercial and municipal fire safety installations including offices, retail premises, schools, hospitals, warehouses, and heritage buildings.
Intuitive Touchscreen Management
At the heart of the EN54 Fire Hub is a stunning 10.1-inch IPS colour touchscreen (1024 × 600 px resolution) that provides at-a-glance system status, detailed fire alarm notifications, and straightforward fire zone management. Authorised users can reset alarms, start or silence evacuations, mute the built-in 60 dB buzzer, override activation delays, and run indication tests – all with a single tap. The panel features 40 LED indicators for individual fire zones plus six additional indicators for overall system health including alarm, test, disablement, and fault states.
Comprehensive Connectivity – No Extra Modules Required
Unlike traditional fire panels that require separate communicator modules, the EN54 Fire Hub Jeweller comes fully equipped with built-in Ethernet (up to 100 Mbps), Wi-Fi 802.11 b/g/n, and dual micro-SIM slots supporting 2G and 4G (LTE) networks. Communication channels operate in parallel for maximum reliability, with automatic failover between Ethernet, Wi-Fi, and cellular connections. Two relay outputs (NC for faults, NO for fire alarms) enable direct connection to third-party monitoring software.
Scalable Wireless Fire System
The CIE supports up to 200 addressable Ajax devices across 40 fire zones using the proprietary Jeweller radio protocol with an impressive 1,800-metre open-space communication range. Up to 5 EN54 Fire ReX Jeweller range extenders can be added to cover facilities up to 35 km². The system accommodates 200 registered users with individual access codes and rights, 25 security groups, 80 rooms, and 64 automation scenarios.
Unified Security Platform
Beyond fire detection, the EN54 Fire Hub also supports EN 50131 Grade 2 intrusion protection, video surveillance (up to 36 Ajax NVRs or 492 standalone cameras), and smart automation devices. This makes it a truly unified security solution – combining fire safety, burglar alarm, CCTV, and building automation in one system managed through a single interface.
Effortless Installation & Maintenance
The panel mounts in minutes using the included SmartBracket panel – no need to open the enclosure. Devices are added by scanning QR codes through the free Ajax mobile and desktop apps, with all configuration done through an intuitive interface. Remote firmware updates via Ajax Cloud keep the system current, while automatic self-diagnostics and maintenance reports via Ajax PRO Desktop ensure long-term reliability.
Power & Backup
The CIE connects directly to 110–240 V~ mains power. For backup, it accepts the EN54 Internal Battery (24h) with 5 Ah capacity or the EN54 Internal Battery (72h) with 10 Ah capacity (both sold separately). Batteries are hot-swappable without powering down the system, ensuring uninterrupted fire protection during maintenance.
What's in the Box
EN54 Fire Hub Jeweller unit, SmartBracket mounting panel, installation kit, Ethernet cable, special tool (key), and quick start guide. Available in White or Black to suit any interior.
