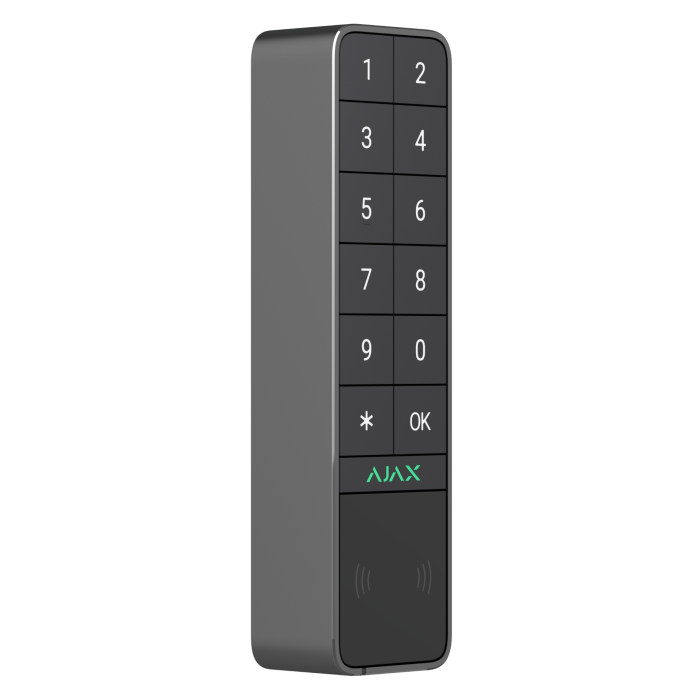

Ajax 99969.286.GP1 Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE
The Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE is a wireless arming keypad — Wireless touch keypad for fast, code-based arming and disarming of an Ajax security system.
Part of the Ajax professional wireless security range — Jeweller two-way radio with encryption, frequency hopping and anti-jamming, controlled from the Ajax mobile app and commissioned remotely with Ajax PRO. EN 50131 Grade 2 system support with optional ARC / CMS monitoring.
Key Features
- Wireless arming keypad - pairs with any Ajax hub
- Touch-key code arming and disarming
- Backlit touch surface with tamper-proof design
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Battery: 4 x AAA (LR03), up to 2 years
- Duress code and protected panic activation
- Ingress protection: IP50 for indoor and outdoor use
- Tamper protection on the casing
Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE — Wireless Alarm Keypad
Wireless touch keypad for fast, code-based arming and disarming of an Ajax security system.
Overview
The Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE is a wireless arming keypad from the Ajax professional wireless security range - two-way Jeweller radio with encryption, frequency hopping and anti-jamming supervision, all managed from the Ajax app. Wireless touch keypad for fast, code-based arming and disarming of an Ajax security system.
Power: 4 x AAA (LR03) for up to 2 years. Two-way Ajax Jeweller radio with encryption and supervision. Enrols to any Ajax hub by QR code. Protected activation prevents accidental commands.
The Ajax arming range includes touch and touchscreen keypads, the SpaceControl key fob and the Button - combine any of them on the same hub for flexible, multi-user access. Every action is logged in the app for a full audit trail.
Construction: tamper-protected enclosure with communication and battery supervision. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — UK Ajax stockist — with trade pricing on stocked Ajax product.
Key Features
- Wireless arming keypad - pairs with any Ajax hub
- Touch-key code arming and disarming
- Backlit touch surface with tamper-proof design
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Battery: 4 x AAA (LR03), up to 2 years
- Duress code and protected panic activation
- Ingress protection: IP50 for indoor and outdoor use
- Tamper protection on the casing
Typical Applications
- Daily arming / disarming at the entry door
- Multi-user properties needing per-person codes or tags
- Night-mode / part-set control for homes
- Lone-worker and retail panic activation
- Elderly-care assistance call buttons
- Trade installs needing same-day stock - Netview CCTV Leicester ships Ajax from UK stock
Compatible Ajax Devices
- Ajax hubs - Hub 2, Hub 2 Plus, Hub Hybrid
- Ajax app (iOS / Android) - remote arm / disarm / notifications
- Ajax PRO app and Ajax PRO Desktop for installer commissioning
What's in the Box
- 1 × Ajax KeyPad
- 1 × SmartBracket / mounting kit
- 1 × battery (pre-installed where applicable)
- 1 × quick start guide
📄 Download: Ajax KeyPad Datasheet (PDF) — full technical specification, radio, battery and mechanical detail.
Detailed Specifications — Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE
Full technical specification for the Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE, drawn from the official Ajax datasheet.
| Identification | |
|---|---|
| SKU | 99969 |
| MPN | 99969.286.GP1 |
| EAN | |
| Brand | Ajax |
| Product Type | Wireless Alarm Keypad |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller |
| Transmission | Two-way encrypted RF |
| Encryption | Block encryption (AES-based) |
| Open-space Range | up to 1700 m |
| Frequency Hopping | Supported |
| Anti-Jamming | Supported with notifications |
| Supervision | Automatic device polling |
| Power | |
| Power Supply | 4 x AAA (LR03) |
| Battery Life | up to 2 years |
| Low-Battery Reporting | Supported to the hub |
| Mechanical & Environment | |
| Tamper Protection | Yes |
| Ingress Protection | IP50 |
| Installation | SmartBracket / surface mount |
| Operating Temperature | -10 C to +40 C (indoor) / -25 C to +60 C (outdoor) |
| Compatibility | |
| Ajax Hubs | Hub 2, Hub 2 Plus, Hub Hybrid |
| End-User App | Ajax app (iOS / Android / desktop) |
| Installer Tools | Ajax PRO / Ajax PRO Desktop |
| Monitoring | ARC / CMS via SIA-DC09 (Contact ID / SIA) |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| Security Grade | EN 50131 Grade 2 / PD 6662:2017 compatible |
Frequently Asked Questions
What is this Ajax KeyPad?
A versatile wireless arming keypad for indoor and outdoor use, in graphite, supporting Pass cards, Tag fobs, smartphones and PIN codes.
What arming methods does it support?
Contactless Pass/Tag, smartphone (Bluetooth) and keypad codes — flexible for multi-user sites.
Can it be fitted outdoors?
Yes — it is rated for both indoor and outdoor installation.
How does it communicate?
Over Ajax's encrypted two-way Jeweller radio.
What do I need to use it?
An Ajax hub; managed via the Ajax app.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Ajax Wireless Keypad Outdoor & Indoor via Pass, Tag, Smartphones & Codes GRAPHITE
Download the official Ajax datasheet for the KeyPad, plus related Ajax alarm categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| Ajax KeyPad Datasheet | Download datasheet | |
| Browse all Ajax Arming Devices | Web | View Ajax Arming Devices |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — UK Ajax stockist (Leicester). For trade pricing on Ajax product, contact our team on 0116 3800 838 or [email protected].
