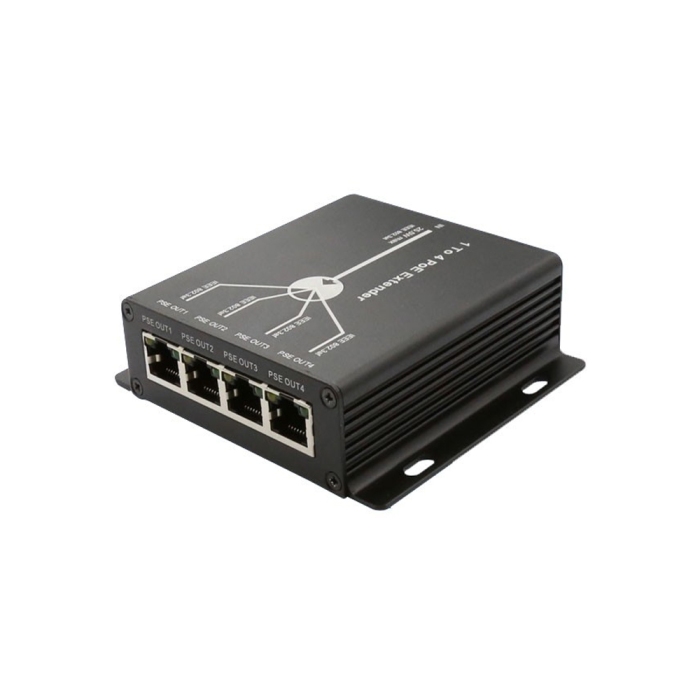

NetviewCCTV, NV-HYE4-POE, PoE Extender, POE Splitter, Repeater, 1 Port to 4 Port
£66.00
£55.00
In stock
SKU
NV-HYE4-POE
4-Ports PoE Extender & Splitter
Input 1X POE+ = OUTPUT 4x POE
(1x 802.3at TO 4x 802.3af) & extends up to 120m
Used with AP, IP camera, IP telephone and the other network equipments in situation of lack of power line or far distance
Installed at hotels, schools, buildings, villages, etc.
- 1 port for power input, and 4 ports for power output.
- Compliers with 10/100BASE-TX, IEEE802.3at(power-in) / /IEEE802.3af(power-out).
- The min power input required is 25.5W POE+
- Power output on every single port is 15.4W.
- PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m
- It offers you great flexibility to extend the distance of PoE.
Features
- Comply with IEEE 802.3af Power over Ethernet.
- 4-Ports PoE Extender has 5 10/100M PoE ports,
- 1 port for power input, and 4 for power output.
- Comply with 10/100BASE-TX, IEEE802.3at(power-in) /IEEE802.3af(power-out).
- The power input is 25.5W in total.
- Power output for single port is 15.4W(max).
- Extend the range of PoE an additional 120 meters.
- Automatically detects and protects PoE equipments from being damaged by incorrect installation.
- Plug-and Play no configuration required.
- 4 ports PoE extender can forward both ethernet and PoE
- power for 4 terminal equipments via Cat5 UTP cables
Package contents
10/100M PoE Extender (4-Ports or 1-Port)
User Manual
Screw set (3.5x20mm, for 4-Ports PoE Extender only)
